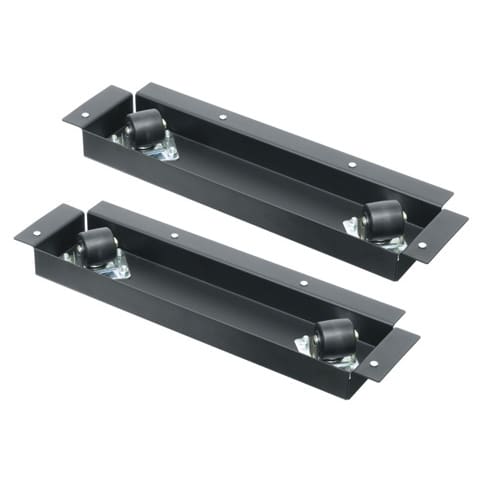

Caster Base for BGR Series
Caster base for all BGR series racks, adding 1 1/8" to overall height with a 1100 lbs capacity
The Middle Atlantic CBS-BGR is a specialized caster base designed for use with all BGR series racks. This base utilizes an innovative two-part inner caster design, which allows it to accommodate all rack depths within the series. By installing this base, the overall height of the rack assembly increases by 1 1/8". The unit is constructed from robust steel and finished with a black wrinkle powder coat for durability. For mobility on job sites or within data centers, it includes four pre-installed, non-locking commercial-grade casters. This heavy-duty base supports a total weight capacity of 1100 lbs (499 kg), providing a stable and mobile foundation for your BGR rack configuration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6.33 in (16.1 cm) |
| Height | 2.84 in (7.2 cm) |
| Product Weight | 15.5 lbs (7 kg) |
| Shipping Weight | 17.5 lbs (7.9 kg) |
| Weight Capacity | 1100 lbs (499 kg) |
| Width | 22.68 in (57.6 cm) |
| Base Series | BGR |
| Finish | Black Wrinkle Powder Coat |
| Style | Standard |
| UPC | 656747143410 |
Resources
You'll need these with it
Questions about this part
Will the CBS-BGR fit my BGR series rack?
Yes, this caster base is designed to fit all BGR series racks, regardless of the specific depth.
How much height does the caster base add to the rack?
Installing the CBS-BGR adds 1 1/8" to the overall height of the rack assembly.
What is the maximum weight capacity for this base?
The CBS-BGR has a weight capacity of 1100 lbs (499 kg).
Does this caster base include the casters?
Yes, the unit comes with 4 pre-installed, non-locking commercial grade casters.
What accessories are compatible with this base?

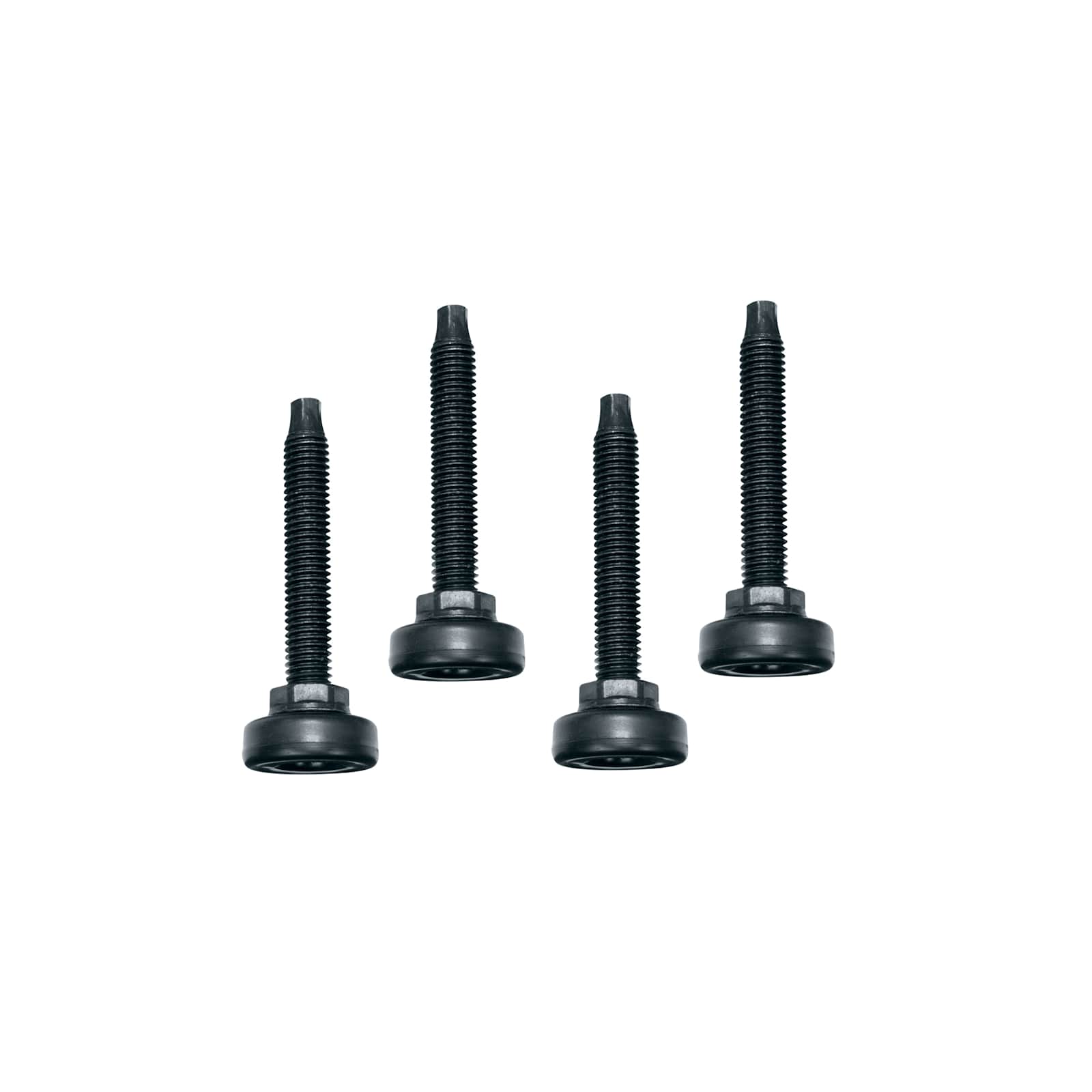

You can use the LF-HD Heavy Duty Leveling Feet as an accessory with this unit.
