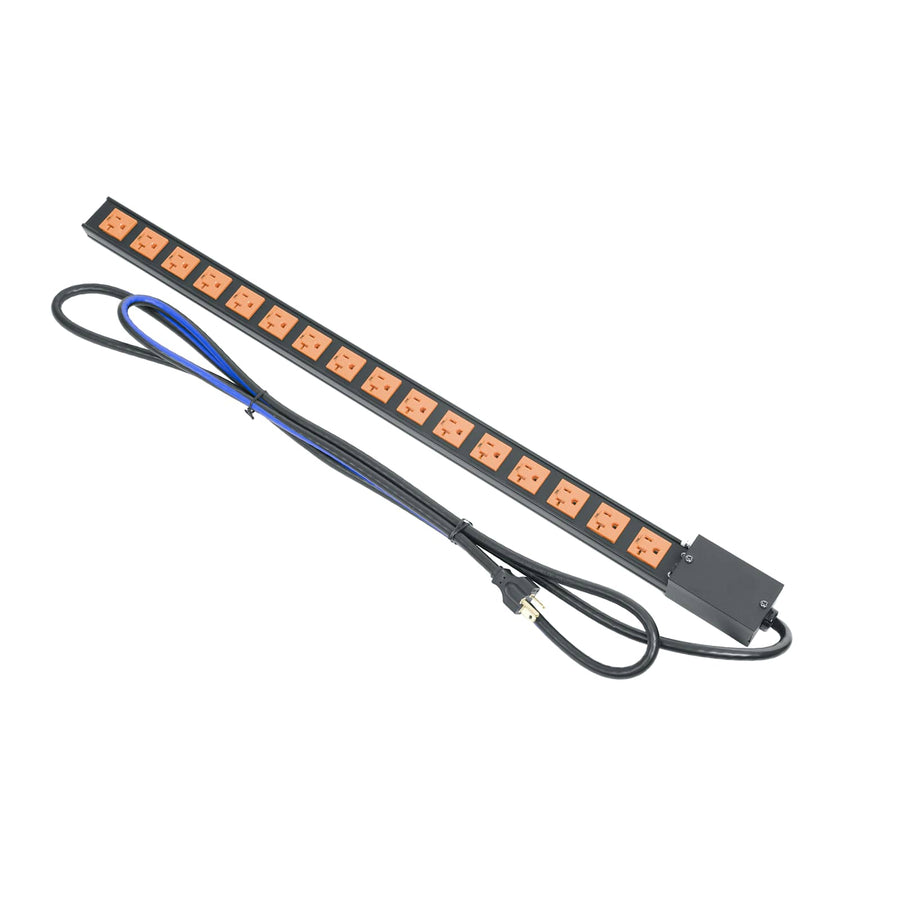

PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
16-outlet vertical power strip with 20A capacity, a 9 ft cord, and low-profile chassis for rack mounting
The Middle Atlantic PDT-1620C-NS provides high-density power distribution in a compact form factor, allowing installers to add numerous outlets without consuming valuable rack units. This 16-outlet vertical power strip features a 20 Amp, 120 VAC capacity and a slim 2.13" width, making it ideal for mounting unobtrusively in the rear of a rack to place power directly adjacent to equipment. Designed for easy integration, it snaps into place using included mounting hardware that is compatible with every style of Middle Atlantic rack rail brackets. This corded model utilizes a 9 ft (2.7 m) SignalSAFE™ wire, which is engineered to minimize potential interference caused by AC magnetic fields from other components within the rack. The Black Anodized finish and ETL Listing ensure this PDU meets professional installation standards for reliability and aesthetics in AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 33.88 in (86.1 cm) |
| Shipping Weight | 4.56 lbs (2.1 kg) |
| Volts AC | 120 VAC |
| Width | 2.13 in (5.4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 16 |
| Plug Type | 5-20P |
| UPC | 656747118494 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-1620C-NS fit in my rack?
Yes, this unit is designed to snap into any style of Middle Atlantic rack rail bracket using the included mounting hardware.
What is the cord length and plug type for the PDT-1620C-NS?
The unit features a 9 ft (2.7 m) corded cable with a 5-20P plug type.
How does the SignalSAFE™ wire help with rack interference?
The corded SignalSAFE™ wire is designed to minimize potential interference caused by AC magnetic fields from other equipment in your rack.
What is the total power capacity for this vertical PDU?
The PDT-1620C-NS is a 20 Amp, 120 VAC, single-circuit power strip with 16 outlets.
Which documents should I use for a project submittal?
You can access the PDT Series Thin Power Distribution 3 Part Specification (docx) or the A&E Specification Sheet (PDF) for technical details.
