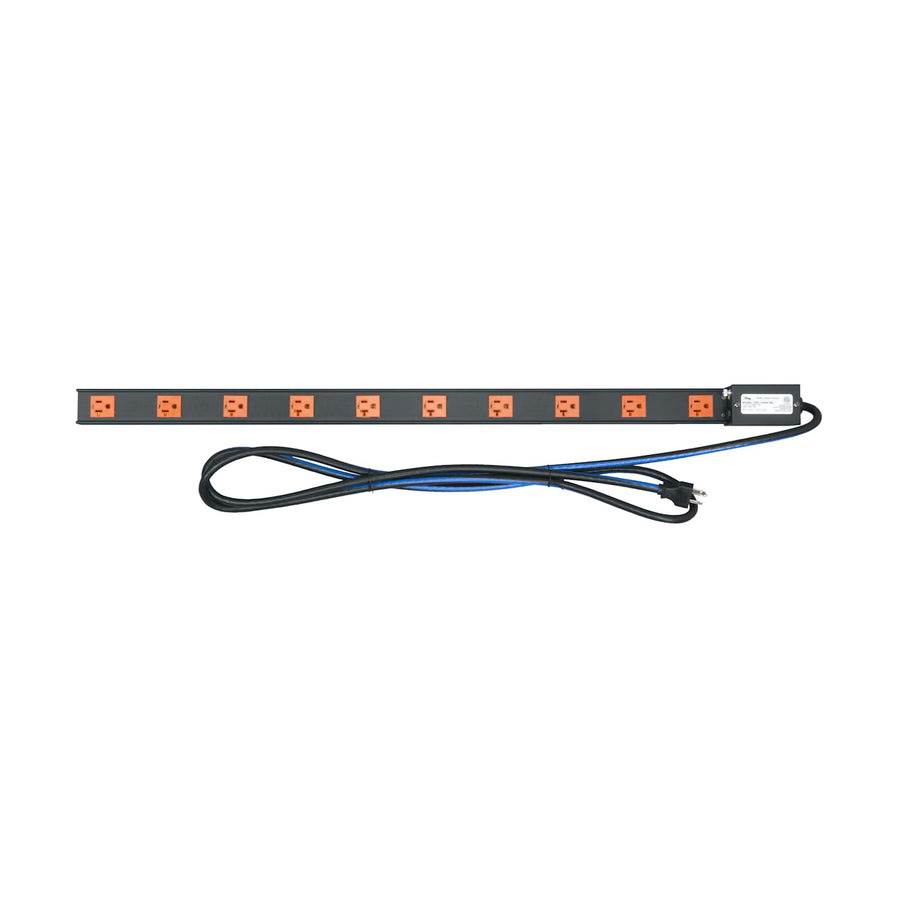

PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
Low profile 20A vertical power strip with 10 outlets, 9 ft (2.7 m) corded SignalSAFE™ cable, and black anodized finish
The PDT-1020C-NS is a low profile vertical power strip designed to expand outlet availability in crowded racks without consuming valuable horizontal rack units. This Select Series PDU features a thin 2.1 in (5.3 cm) depth and 2.13 in (5.4 cm) width, allowing it to be mounted unobtrusively in the rear of the enclosure. It provides 10 outlets on a single 120 VAC circuit, making it an efficient solution for powering multiple pieces of AV equipment in close proximity. The unit is built with a corded 9 ft (2.7 m) SignalSAFE™ wire, which is engineered to minimize potential electromagnetic interference from the AC magnetic fields of adjacent equipment. For installation, this PDU includes the necessary mounting hardware to snap the unit into place using a reusable clip system. It is compatible with every style of Middle Atlantic rack rail brackets and is ETL Listed for safety.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 38.13 in (96.9 cm) |
| Shipping Weight | 4.12 lbs (1.9 kg) |
| Volts AC | 120 VAC |
| Width | 2.13 in (5.4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 10 |
| Plug Type | 5-20P |
| UPC | 656747065378 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-1020C-NS fit in my existing Middle Atlantic rack?
Yes, this vertical PDU is designed to mount to every style of Middle Atlantic rack rail brackets for easy integration.
How is the PDT-1020C-NS installed in the rack?
Installation is handled via a snap-in clip system; the included mounting hardware allows you to clip the PDU into place quickly.
What is the plug type for this power strip?
The PDT-1020C-NS features a 5-20P plug type and a 9 ft (2.7 m) corded cable.
What is the difference between the SignalSAFE™ wire and standard cords?
The SignalSAFE™ wire used in this corded model helps minimize potential interference caused by AC magnetic fields from other rack equipment.
Which document should I use for submittals?
Installers can refer to the PDT Series Thin Power Distribution 3 Part Specification (docx) or the instruction sheet for technical details.
