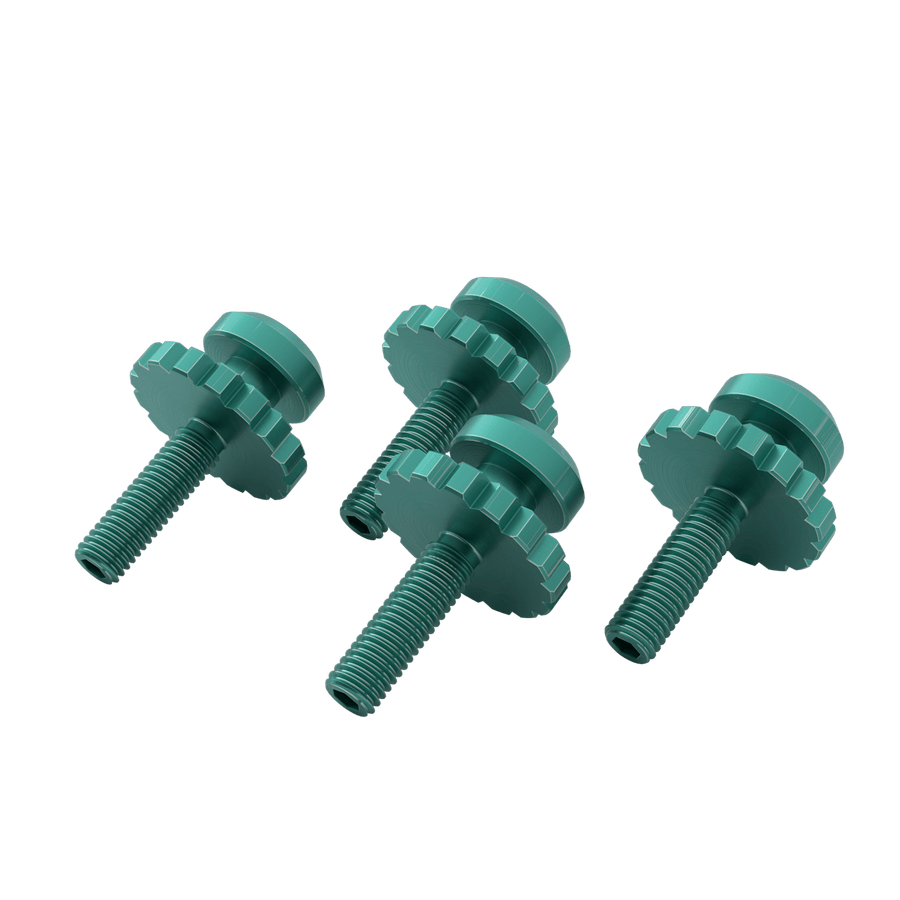

TiLED® dvLED Universal M5 Mounting Button Kit, 1 panel
M5 size mounting button kit for a single dvLED panel, providing 0.125" of adjustment capability
The Chief DVAM5-1 is a TiLED® dvLED Universal Mounting Button Kit designed to integrate with most standard LED panels currently on the market. These M5 size buttons are installed directly into the back of the LED display, making the TiLED® Universal mounting systems compatible with a wide variety of manufacturer models. This kit is intended for wall applications and facilitates micro-depth adjustments of 0.125" (3.2 mm) through front or side access. This specific SKU is a 1-panel kit containing 4 mounting buttons with a green zinc finish. For larger installations, Chief offers M5, M6, M8, M10, and M12 hardware kits in 10-panel and 25-panel quantities to ensure consistent mounting across a complete video wall.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Package Count | 1 Panel / 4 Buttons |
| Size | M5 |
| Accessory Type | InstallationMounting Brackets |
| Adjustments | 0.125" (3.2 mm) |
| Application | Wall |
| Finish | Green Zinc Finish |
| Product Type | Button |
| UPC | 841872178370 |
| Color | Green Zinc Finish |
Resources
You'll need these with it

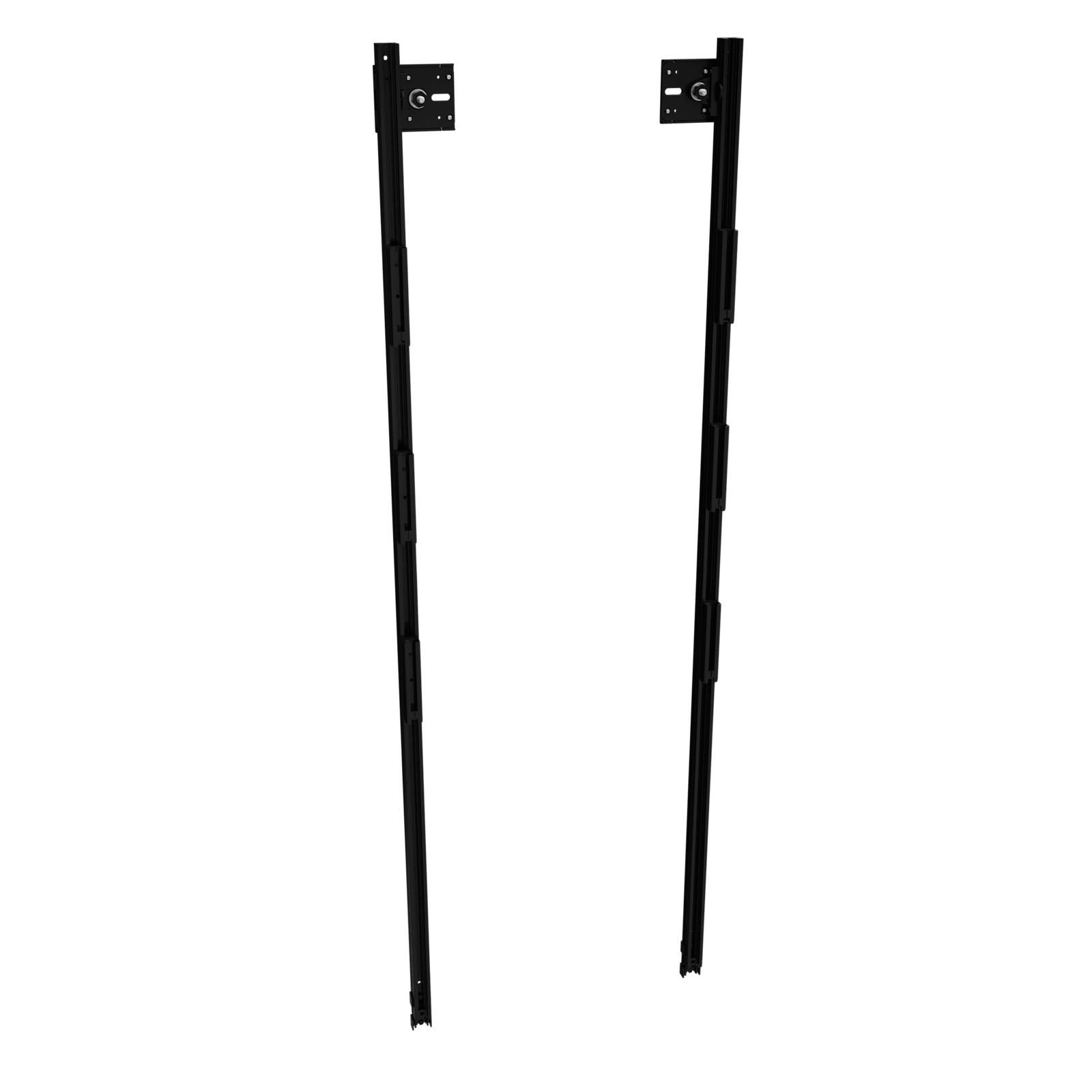

Chief DVM0500U3E TiLED® dvLED Universal 500mm, 3 High Extender
DVM0500U3E$540.00

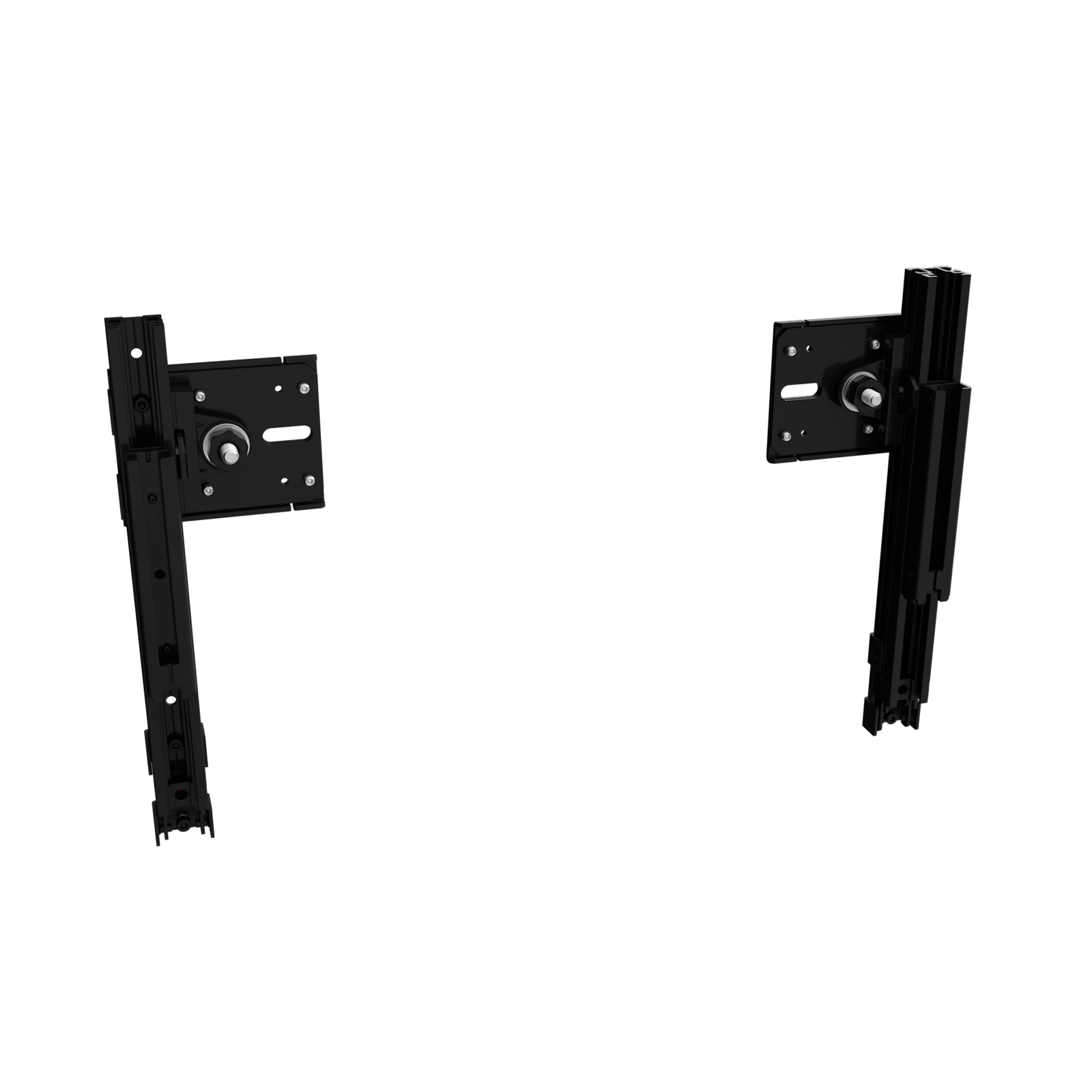

Chief DVM0270U1E TiLED® dvLED Universal 270mm, 1 High Extender
DVM0270U1E$180.00

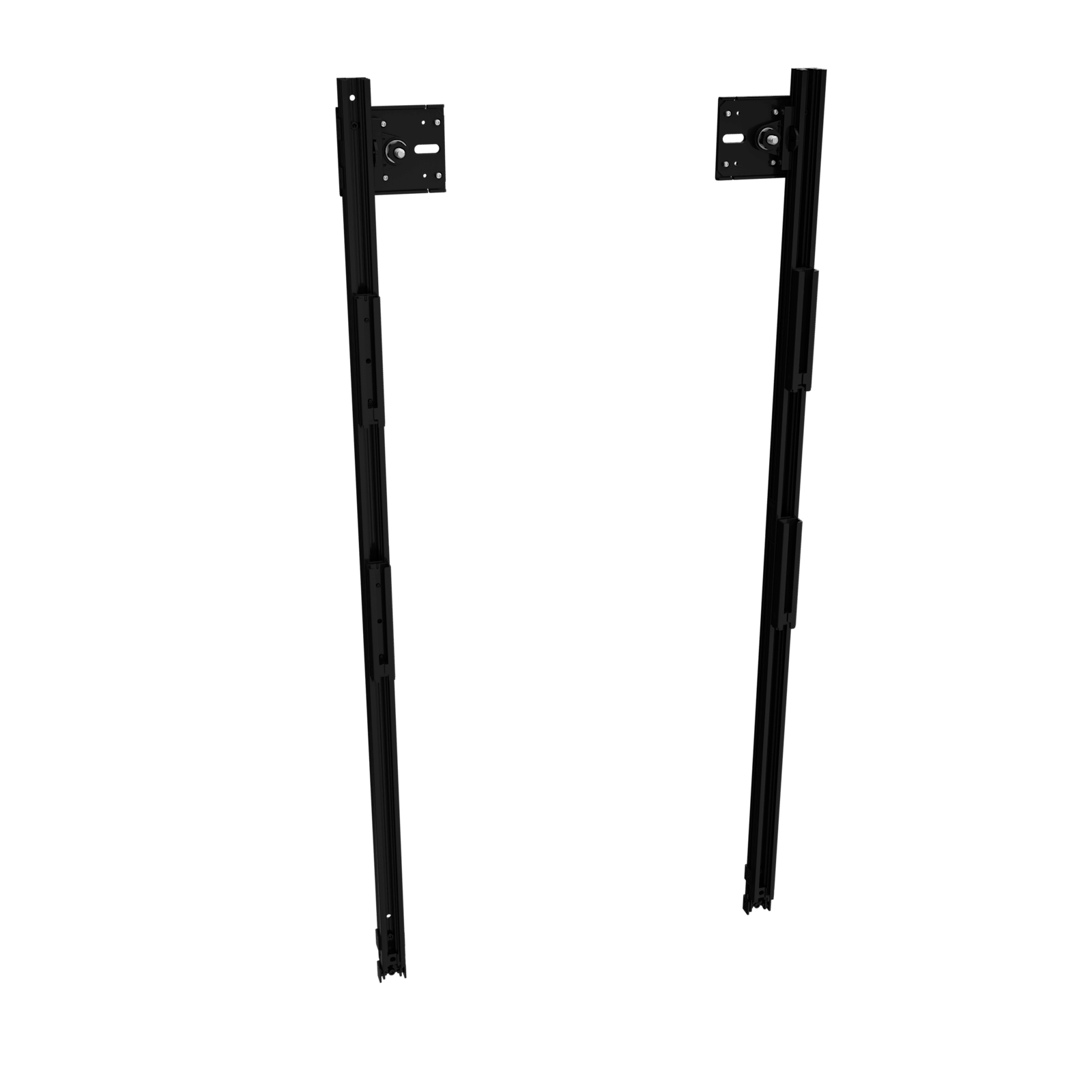

Chief DVM0500U2E TiLED® dvLED Universal 500mm, 2 High Extender
DVM0500U2E$360.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon

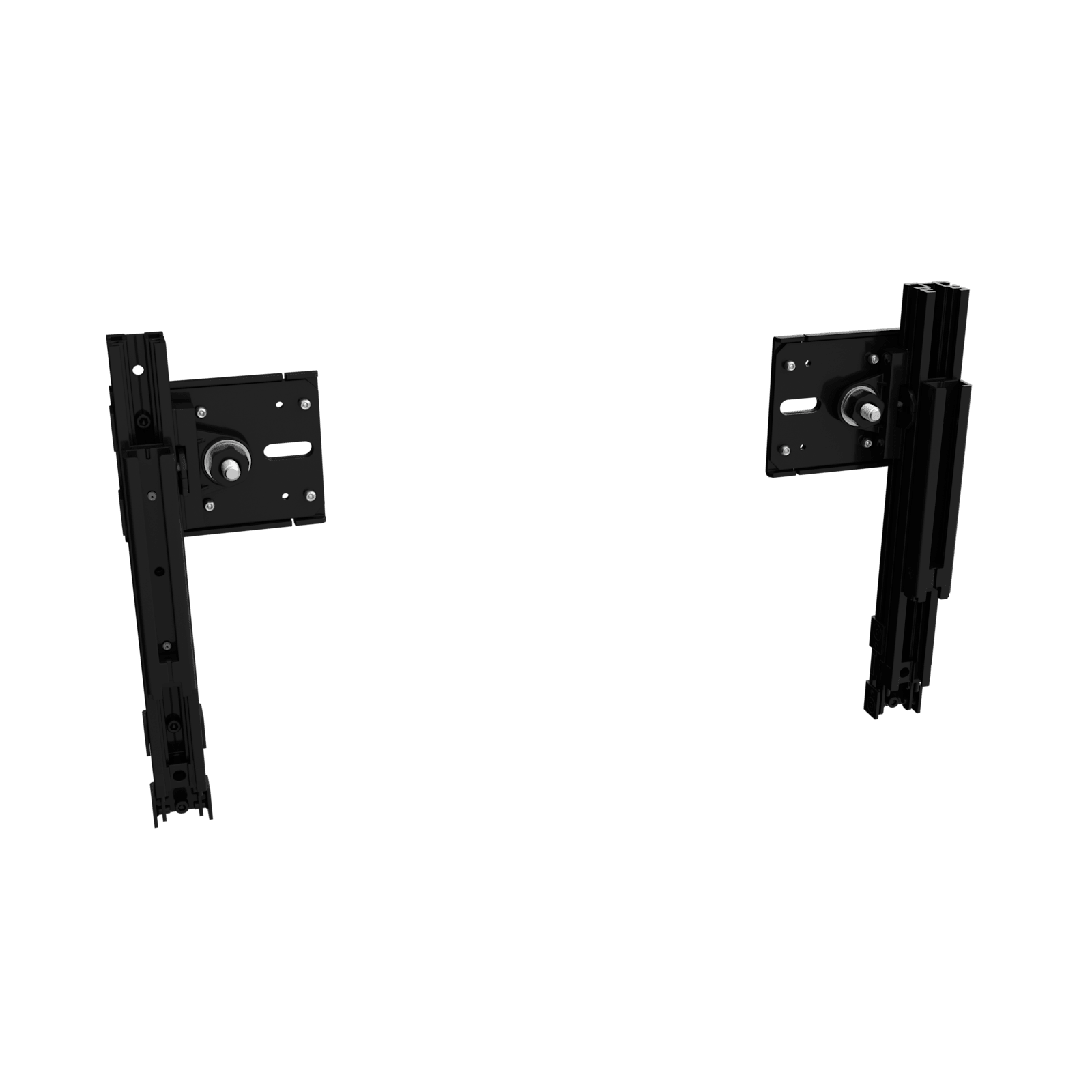

Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
DVM0250U1E$180.00
Chief DVM0540U3E TiLED® dvLED Universal 540mm, 3 High Extender
DVM0540U3E$540.00

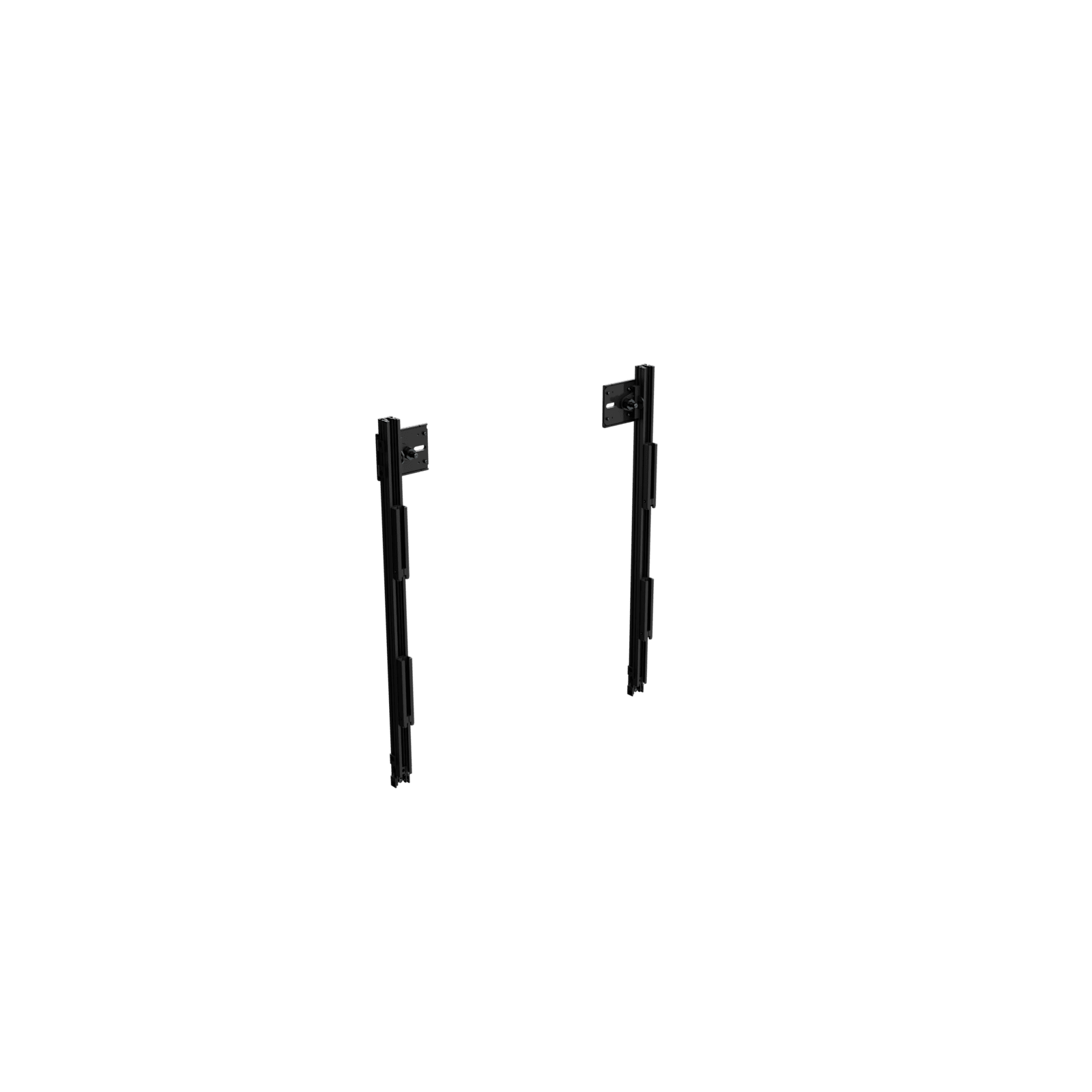

TiLED® dvLED Universal 27" Wall Mount, 2 High Extender
DVM27U2E$240.00

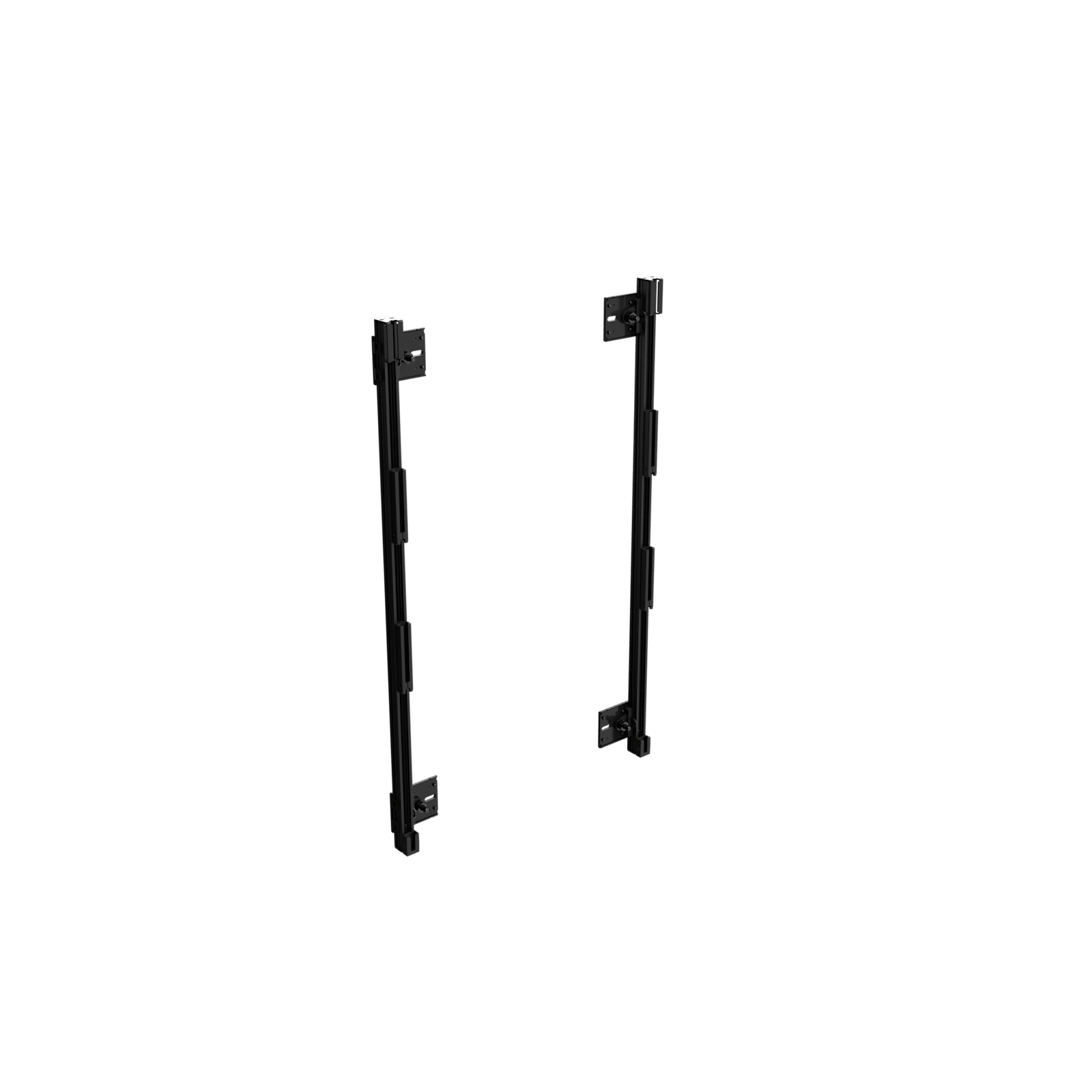

TiLED® dvLED Universal 27" Wall Mount, 3 High Starter
DVM27U3$360.00

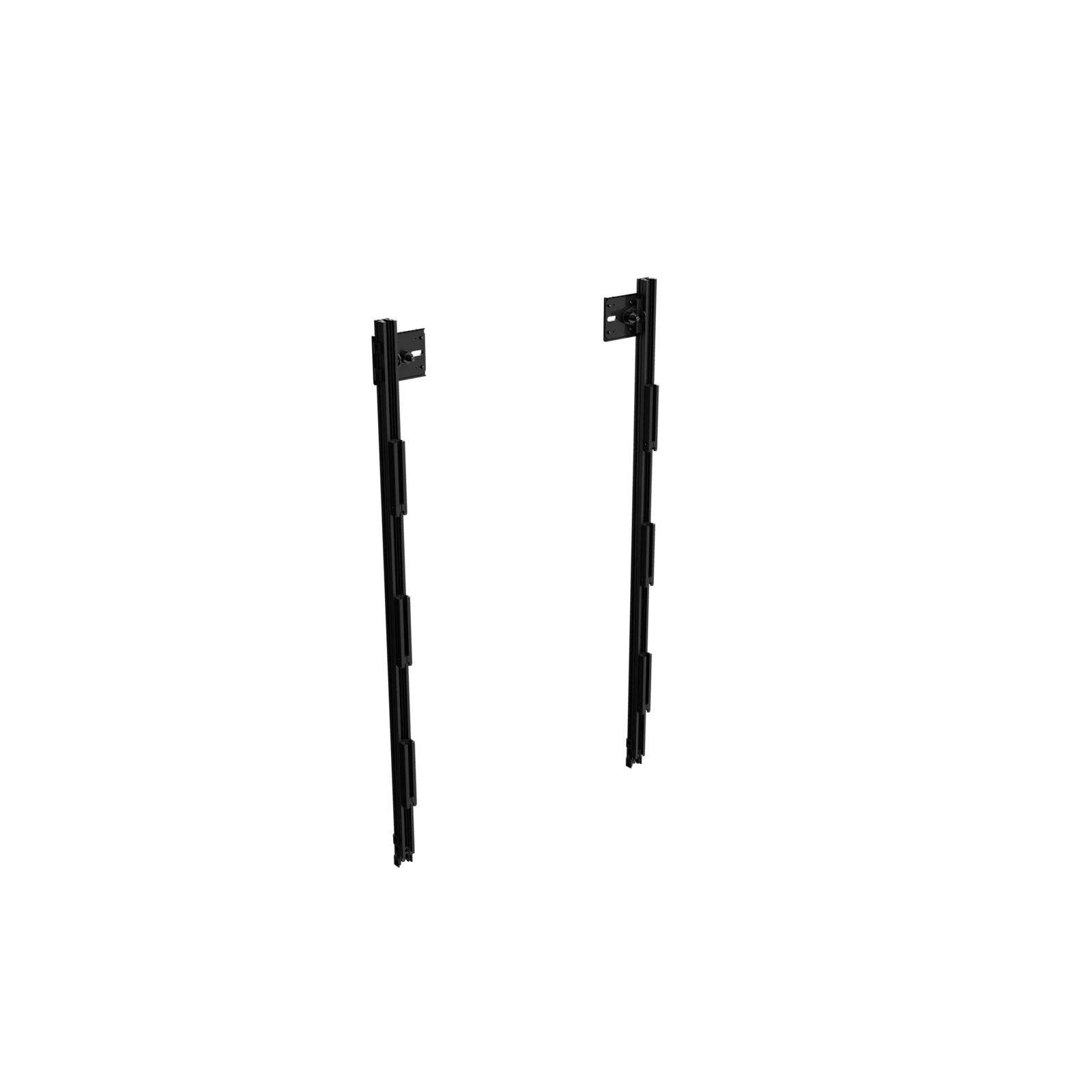

TiLED® dvLED Universal 27" Wall Mount, 3 High Extender
DVM27U3E$360.00

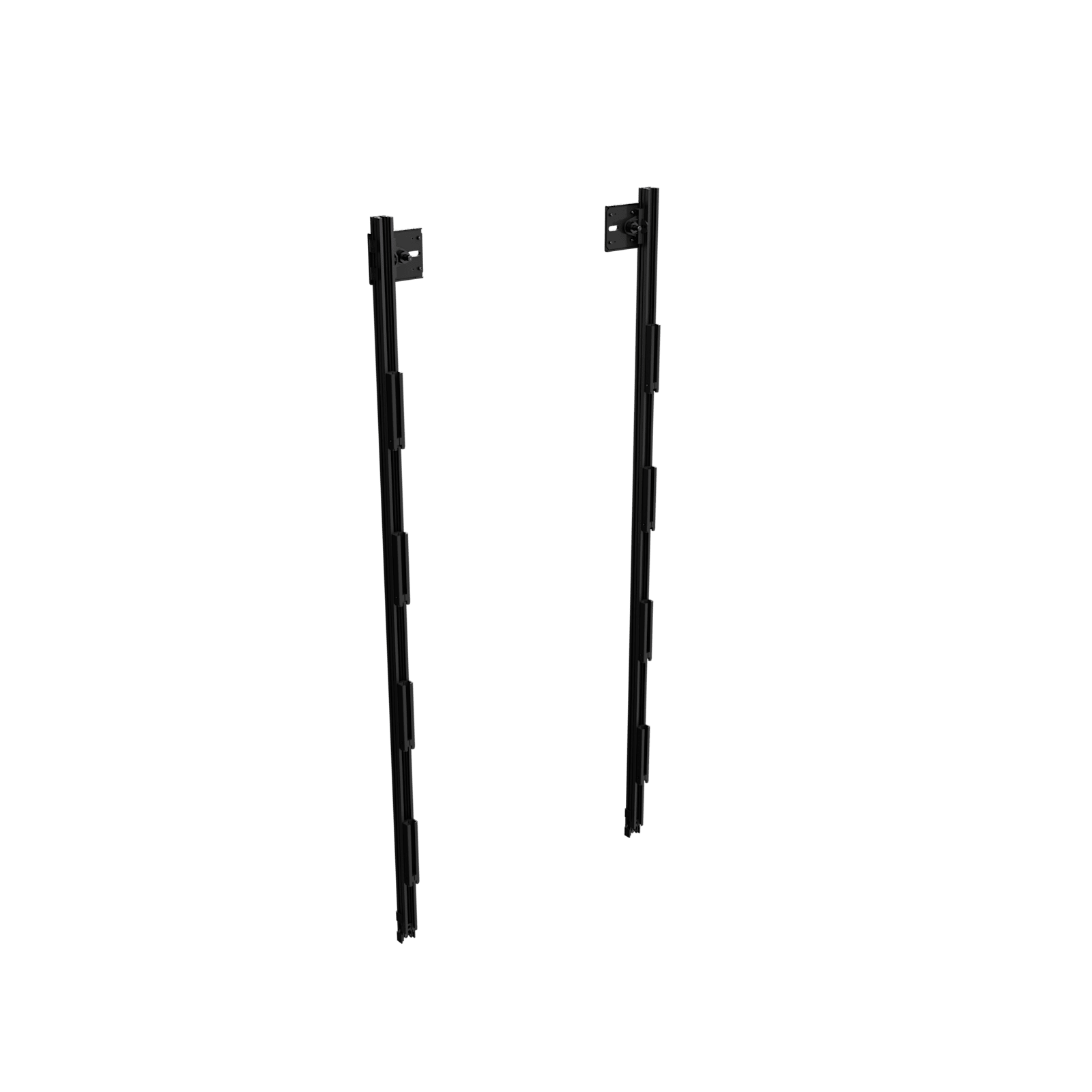

TiLED® dvLED Universal 27" Wall Mount, 4 High Extender
DVM27U4E$480.00

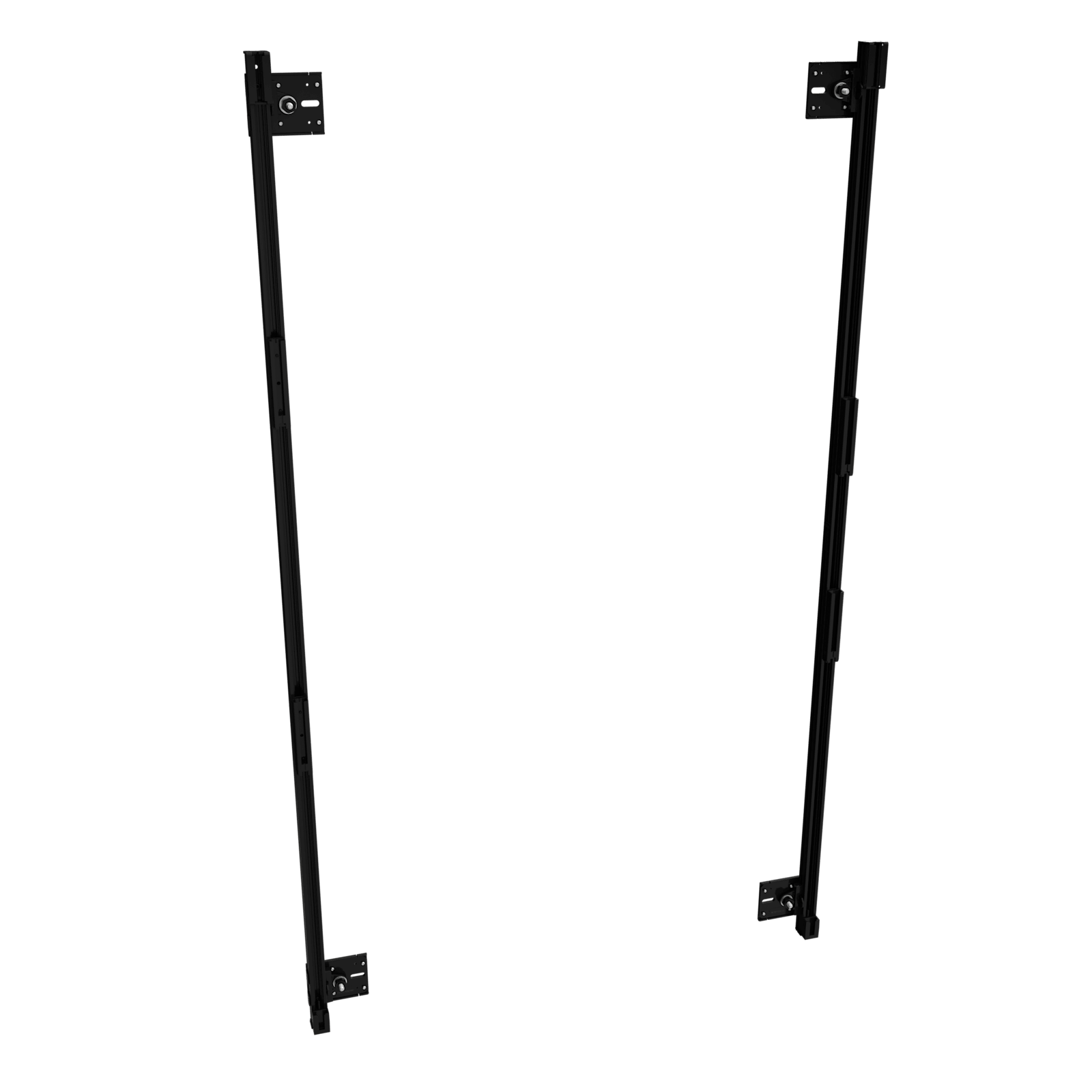

Chief DVM0540U3 TiLED® dvLED Universal 540mm, 3 High Starter
DVM0540U3$540.00

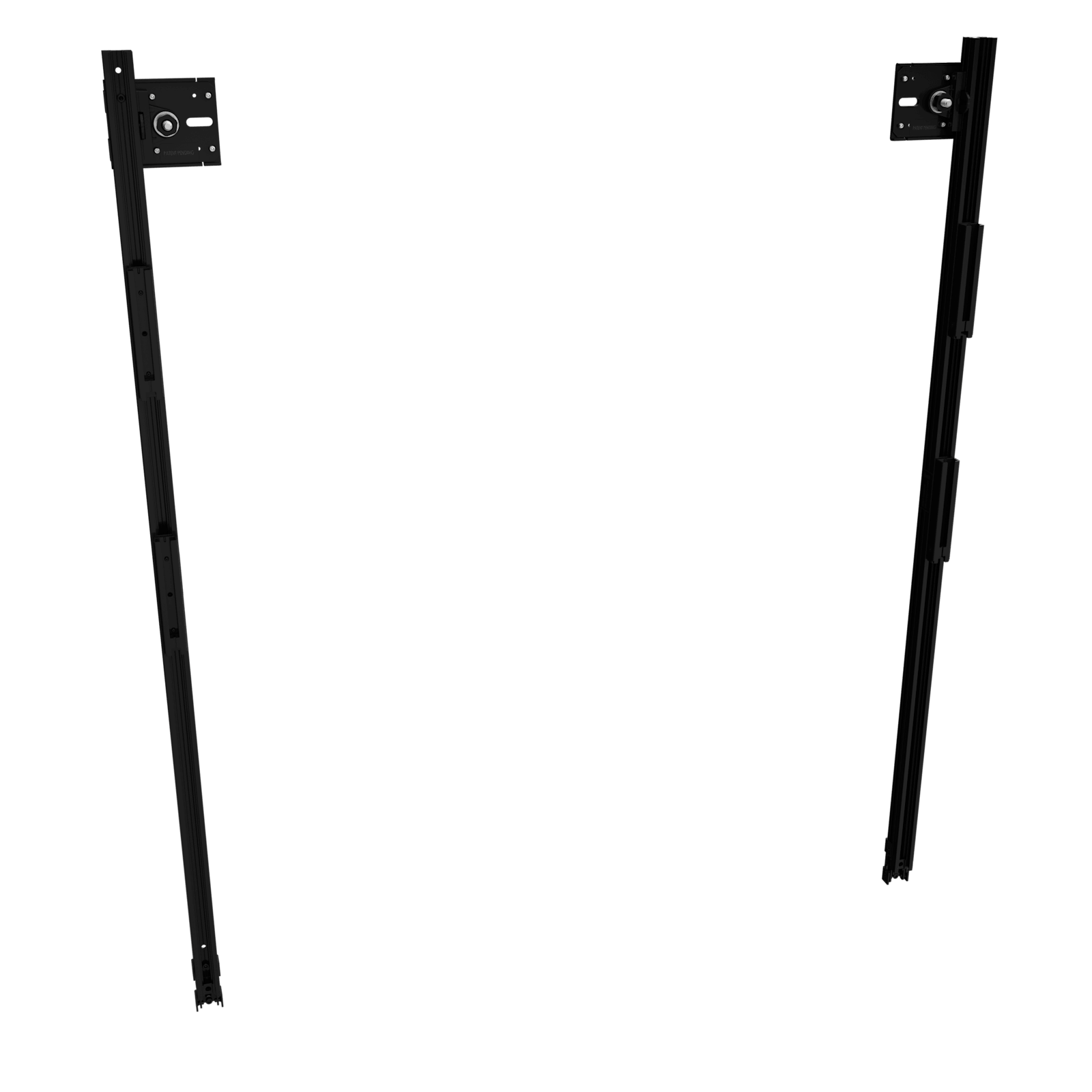

Chief DVM0540U2E TiLED® dvLED Universal 540mm, 2 High Extender
DVM0540U2E$360.00
Questions about this part
Will the DVAM5-1 fit my dvLED panels?
Yes, these mounting buttons allow TiLED® Universal mounts to work with most panels on the market by installing directly into the back of the display.
How many panels can I cover with one DVAM5-1 kit?
The DVAM5-1 is a 1-panel kit that includes 4 mounting buttons to support a single LED display.
What is the adjustment range for these buttons?
The buttons provide 0.125" (3.2 mm) of adjustment, which can be managed via front or side access.
What other sizes are available for TiLED® mounting buttons?
Additional hardware kits are available in M5, M6, M8, M10, and M12 sizes to accommodate different display requirements.
Which documentation is needed for submittals?
The TiLED dvLED Video Wall Mounts Installation Manual provides the necessary technical details for this series.
