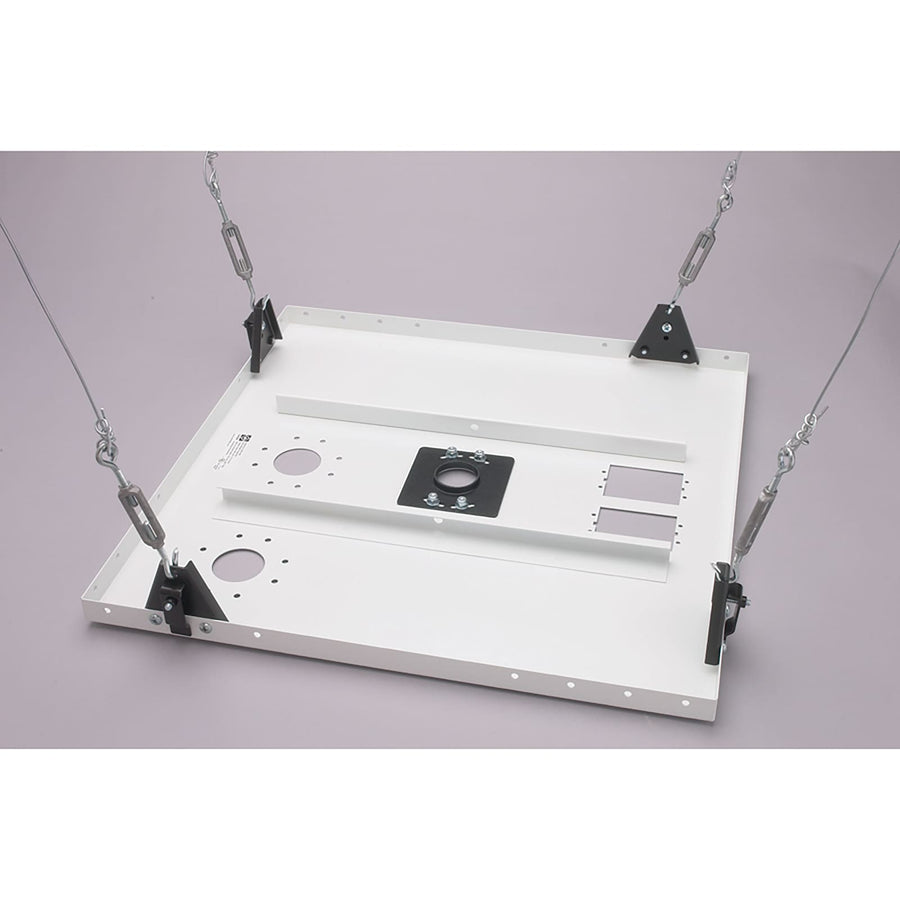

Suspended Ceiling Kit
Suspended ceiling projector mounting kit for 2' x 2' tiles with a 250 lbs capacity
The Chief CMA450 is a Suspended Ceiling Kit designed for the efficient installation of front projectors in environments with grid ceiling tiles. This kit is built for rapid installation by clamping directly to ceiling tracks, making it an economical choice for many commercial applications. It is specifically designed to work with 2' x 2' (60.33 x 60.33 cm) ceiling tiles, though it is also compatible with 600 x 600 mm or 600 x 1200 mm tiles used in Canada, Mexico, and Europe. This kit allows for versatile mounting: front projectors weighing up to 250 lbs (113.4 kg) can be hung using the center hole, while projectors under 125 lbs (56.6 kg) can be mounted using the side or corner holes. The assembly process is minimized for field efficiency and includes a variety of hardware to ensure a secure installation above the tile.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Depth | 23.8 in (60.5 cm) |
| Height | 1.1 in (2.8 cm) |
| Overall Dimensions | 1.1" x 23.8" x 23.8" (29 x 603 x 603 mm) |
| Shipping Weight | 20 lbs (9.1 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 23.8 in (60.5 cm) |
| Accessory Type | Suspended Ceiling |
All other specifications 9
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | White |
| Includes Power Outlet | No |
| Installation Type | Above Tile |
| Special Features | Surge and Filtering |
| TAA Compliant | No |
| UPC | 841872002774 |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS012W, 12 Inch Fixed Extension Column, Pole
CMS012W$44.00
Speed-Connect Suspended Ceiling Tile Replacement Kit
CMS445$275.20
Speed-Connect Above Tile Suspended Ceiling Kit
CMS440$150.40
Above-Tile Storage Accessory-CMA472
CMA472$137.60
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
CMS018024W$153.60
CMS0305W, 3-5' Adjustable Extension Column, Pole
CMS0305W$185.60
CMS0203W, 2-3' Adjustable Extension Column, Pole
CMS0203W$166.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS003W, 3 Inch Fixed Extension Column, Pole
CMS003W$22.40
CMS009W, 9 Inch Fixed Extension Column, Pole
CMS009W$41.60
CMS009, 9 Inch Fixed Extension Column, Pole
CMS009$41.60
Questions about this part
What is the maximum weight capacity for the CMA450?
The kit supports up to 250 lbs (113.4 kg) when using the center hole, and up to 125 lbs (56.6 kg) when using side or corner holes.
What tile sizes is this kit compatible with?
This kit is designed for 2' x 2' (60.33 x 60.33 cm) tiles and is also compatible with 600 x 600 mm or 600 x 1200 mm ceiling tiles.
What other items do I need to buy to complete my projector mount?
Depending on your required drop length, you may need extension columns such as the CMS006, CMS009, or CMS012W. You can also use the CMS445 Speed-Connect Replacement Kit if required.
Does the CMA450 include power outlets?
No, this specific SKU does not include a power outlet, though it does feature two outlet knockouts for cable management.
What is the difference between the CMA450 and the CMA443?
The CMA443 is a bundle that includes the CMA440 Above Tile Suspended Ceiling Kit and a CMS003 3" Fixed Pipe.
