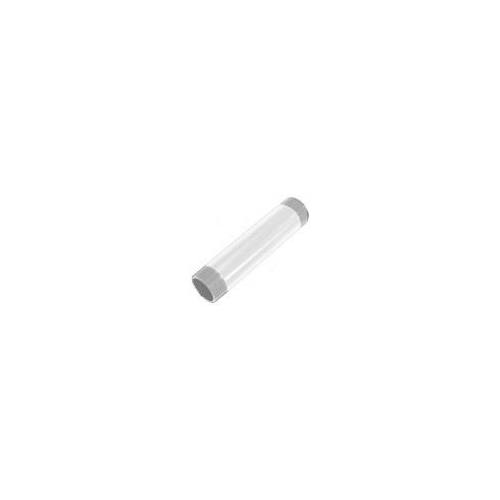

CMS003W, 3 Inch Fixed Extension Column, Pole
3 inch white fixed extension column for lowering projectors via 1.5 inch NPT threaded connection
The Chief CMS003W is a 3 in (7.6 cm) fixed extension column designed to lower projectors to a specific required height. This aluminum column is part of the Speed-Connect Fixed Series and features a 1.5" NPT design, which is threaded on both ends for secure installation. It is intended for use in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. This white-finished column provides maximum strength with a 500 lbs (226.8 kg) weight capacity. For installations requiring specific mounting adjustments, this column can be used with a CMA151 1.5 Inch to 1 Inch NPT Adapter or a CMA351 Heavy Duty Swivel Adapter. This component is TAA Compliant and UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 3 in (7.6 cm) |
| Height | 3 in (7.6 cm) |
| Shipping Dimensions | 5.5" x 3" x 3" (139.7 x 76.2 x 76.2 mm) |
| Shipping Weight | 0.37 lbs (0.2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104768 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60

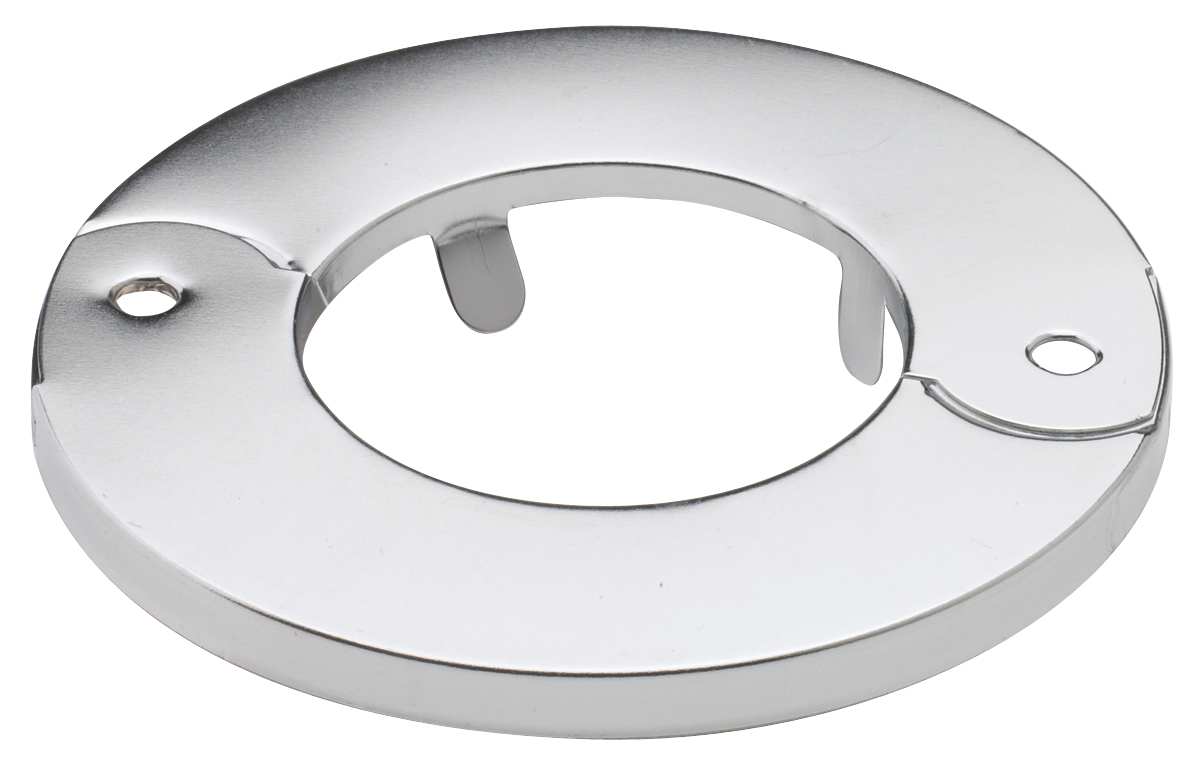

Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will this column work with my existing Chief ceiling plate?
Yes, this column is designed to work in combination with any Chief 1.5" NPT ceiling plate or other compatible 1.5" NPT accessories.
What other accessories are compatible with the CMS003W?
You can use this column with the CMA151 1.5 Inch to 1 Inch NPT Adapter, the CMA351 Heavy Duty Swivel Adapter, or a CMA274W Quick-Snap Cable Cover.
What is the weight capacity of this extension column?
The CMS003W has a weight capacity of 500 lbs (226.8 kg).
Is the CMS003W TAA compliant for government projects?
Yes, this product is TAA Compliant and is UL Listed.
How do I adjust the height if this fixed column is too short?
Since this is a fixed-length column, you can use additional accessories like the CMA151 adapter or combine it with other extension components to achieve the correct mounting height.
