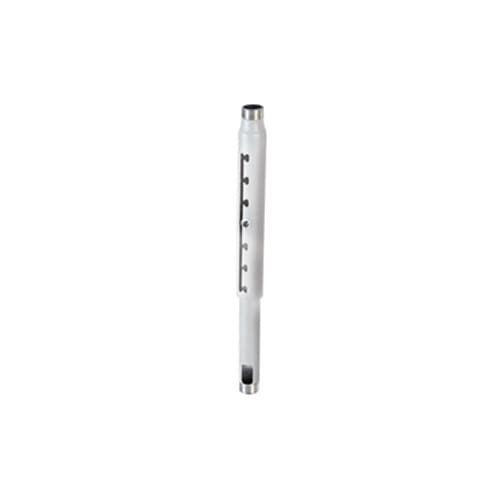

CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
White adjustable extension column for pole applications with an 18-24 inch range and 500 lbs capacity
The CMS018024W is a white adjustable extension column designed for pole-based projector or display mounting. This 1.5" NPT column is threaded on both ends, allowing for versatile integration with a variety of ceiling mounts and accessories. It provides a height adjustment range of 18" to 24" (45.72cm - 60.96cm), with a notched design that allows installers to make height adjustments in 1" increments without needing to disassemble the entire assembly. For added security and stability during and after installation, this column includes a set screw. It is TAA compliant and UL Listed. This specific white model is part of the CMS series, which offers different lengths and color options to suit specific venue requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 18" - 24" (45.72cm - 60.96cm) |
| Height | 24 in (61 cm) |
| Overall Dimensions | 24.0" x 2.3" x 2.3" (610 x 59 x 59 mm) |
| Shipping Weight | 2.91 lbs (1.3 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872104805 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Large Venue Vibration Isolating Coupler, White
CMA348W$588.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40

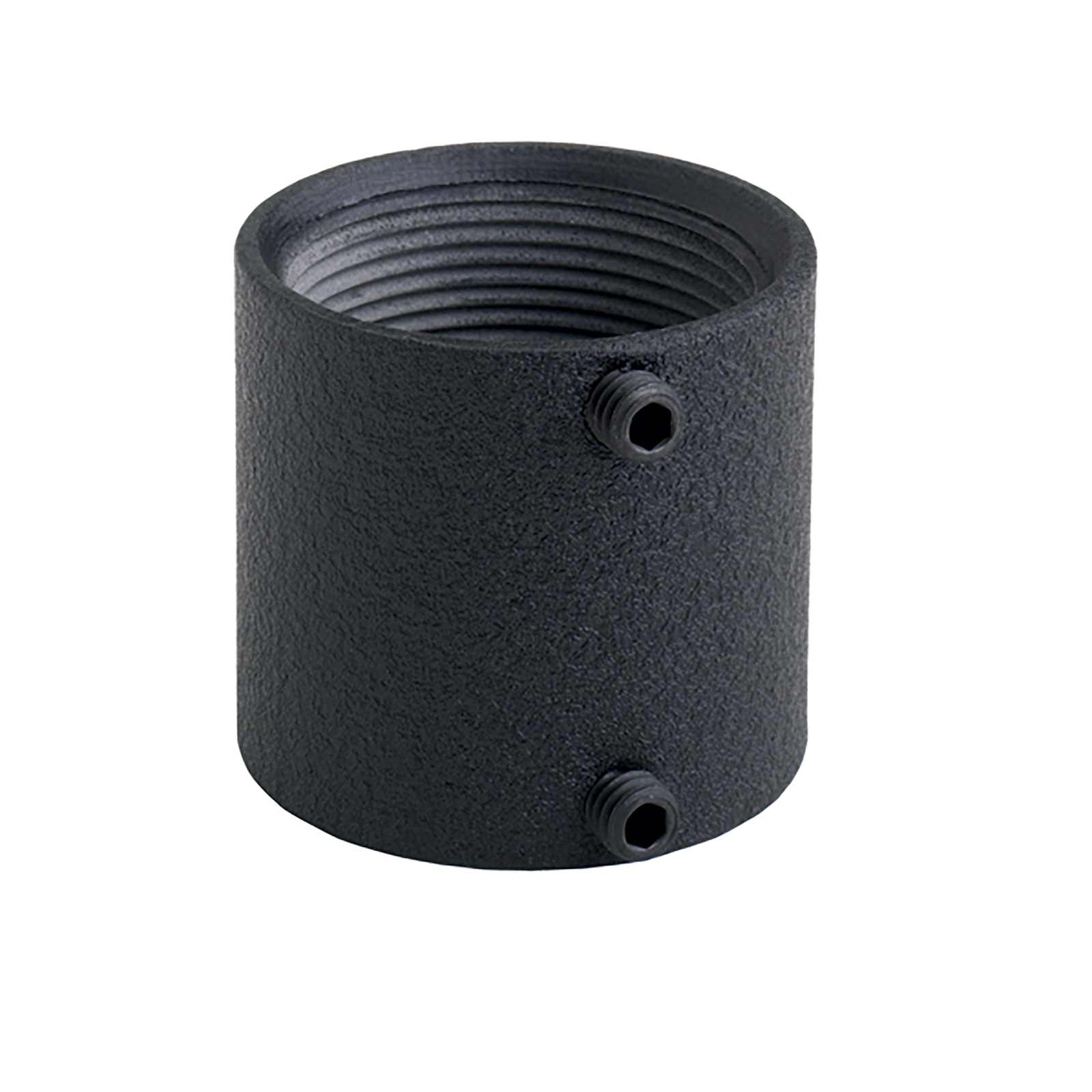

CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Questions about this part
What is the height adjustment range for the CMS018024W?
The CMS018024W provides an extension range of 18" to 24" (45.72cm - 60.96cm) using notched increments of 1".
Can I use this column with a Chief ceiling plate?
Yes, this column is designed for use with any Chief 1.5" NPT ceiling plate or compatible accessory.
What is the weight capacity of this extension column?
This column has a maximum weight capacity of 500 lbs (226.8 kg).
What accessories are compatible with the CMS018024W?
Compatible accessories include the CMA348W Vibration Isolating Coupler, CMA274W Quick-Snap Cable Covers, and the CMA270W Threaded Pipe Coupler.
How is the height adjusted on this model?
The column features a notched design that allows for adjustment without disassembly, utilizing a set screw for stability.
