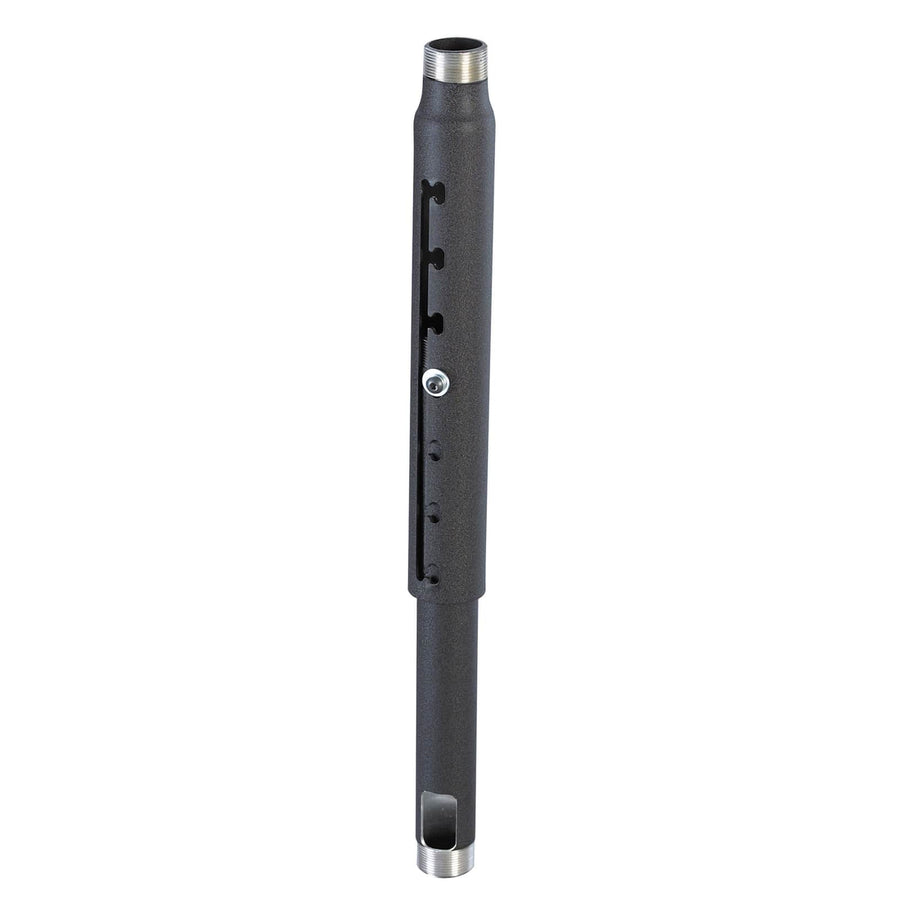

CMS0203, 2-3' Adjustable Extension Column, Pole
Adjustable 2' - 3' extension column for pole-mounted projector accessories, providing height adjustment in 1 inch increments
The Chief CMS0203 provides a highly versatile height adjustment solution for pole-mounted projector installations. This 2' - 3' (0.61m - 0.91m) adjustable extension column features a notched design, which allows for height adjustments in 1 inch increments without the need for disassembly. The column is 36 in (91.4 cm) in height and consists of a 1.5" NPT column that is threaded on both ends to ensure secure connectivity. For increased stability, the column includes a set screw. This TAA compliant and UL listed accessory is intended for use in combination with any Chief 1.5" NPT ceiling plate or other compatible accessory. Its 500 lbs (226.8 kg) weight capacity makes it suitable for professional AV environments requiring reliable, adjustable mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 2' - 3' (0.61m - 0.91m) |
| Height | 36 in (91.4 cm) |
| Overall Dimensions | 36.0" x 2.3" x 2.3" (914 x 59 x 59 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092744 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Decorative Ring for CMS Outer Adjustable Column
CMA643$18.40
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Questions about this part
How do I adjust the height of the CMS0203 column?
The CMS0203 features a notched design that allows you to make height adjustments in 1 inch increments without having to disassemble the column.
What do I need to mount this column to a ceiling?
This column must be used in combination with a Chief 1.5" NPT ceiling plate or a compatible accessory, such as the CMA151 1.5 Inch to 1 Inch NPT Adapter.
Does this column include hardware for installation?
The column includes a set screw for added stability, but you should refer to the Chief CMS Series Extension Columns Installation Manual for a full list of required tools.
Is the CMS0203 TAA compliant?
Yes, the CMS0203 is TAA compliant and is UL listed.
Can I use decorative rings with this column?
Yes, you can use accessories like the CMA643 Decorative Ring for the CMS Outer Adjustable Column to enhance the finished look.
