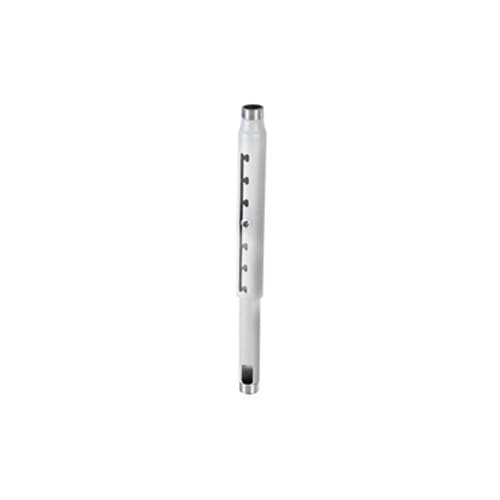

CMS0305W, 3-5' Adjustable Extension Column, Pole
White 3' - 5' (0.91m - 1.52m) adjustable extension column with a 500 lbs capacity
The Chief CMS0305W is an adjustable extension column designed to provide height flexibility for pendant-mounted projection or display systems. This white column offers an extension range of 3' - 5' (0.91m - 1.52m) and features a notched design that allows for height adjustments in 1" increments without requiring complete disassembly. This design helps maximize security and saves significant installation time on the job site. The 1.5" NPT column is threaded on both ends for secure mounting and includes a set screw to provide added stability. This component is intended for use in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. With a 500 lbs (226.8 kg) weight capacity, it provides a robust solution for heavy equipment. This SKU is part of the CMS Series and is TAA compliant and UL listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 3' - 5' (0.91m - 1.52m) |
| Height | 60 in (152.4 cm) |
| Overall Dimensions | 60.0" x 2.3" x 2.3" (1524 x 59 x 59 mm) |
| Shipping Weight | 6.3 lbs (2.9 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872092812 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
What can I use this extension column with?
This column is designed for use with any Chief 1.5" NPT ceiling plate or other compatible accessories, such as the CMA151 1.5 Inch to 1 Inch NPT Adapter.
How do I adjust the height of the CMS0305W?
The column features a notched design that allows you to make height adjustments in 1" increments without having to disassemble the entire assembly.
Is this extension column TAA compliant?
Yes, the CMS0305W is TAA compliant and UL listed for professional installation projects.
What is the maximum weight capacity for this column?
The CMS0305W has a weight capacity of 500 lbs (226.8 kg).
What other accessories are compatible with this column?
You can use various accessories with this column, including the CMA274W Quick-Snap Cable Covers and the CMA160 Electrical Storage Enclosure.
