CMS012W, 12 Inch Fixed Extension Column, Pole
White 12-inch fixed extension column for lowering projectors from ceiling plates with 500 lbs capacity

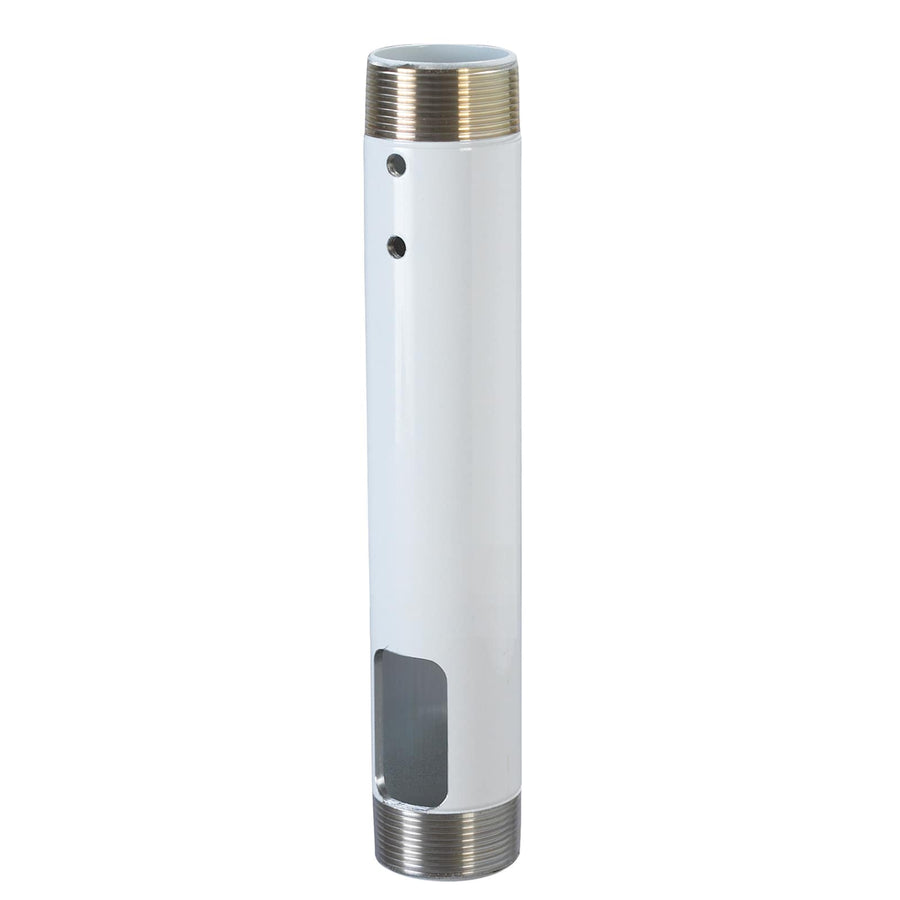

The Chief CMS012W is a 12 in (30.5 cm) fixed extension column designed to lower projectors to a specific, desired height from a ceiling mount. This white-finished aluminum column is part of the Speed-Connect Fixed Series and provides a high-strength solution for professional AV installations. It features a 1.5" NPT design that is threaded on both ends, allowing for secure attachment and adjustment. This column can be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories to create a custom mounting height. It is TAA compliant and UL listed, meeting requirements for various commercial and government installations. This specific SKU offers a white finish, distinguishing it from the black version in the same series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 12 in (30.5 cm) |
| Height | 12 in (30.5 cm) |
| Overall Dimensions | 12.0" x 1.9" x 1.9" (305 x 48 x 48 mm) |
| Shipping Weight | 1.25 lbs (0.6 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872092713 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Electrical Storage Enclosure
CMA160$302.40
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will this column work with my existing Chief ceiling plate?
Yes, the CMS012W is designed to work with any Chief 1.5" NPT ceiling plate or other compatible accessories.
What else do I need to complete the projector installation?
Depending on your setup, you may require accessories like the CMA160 Electrical Storage Enclosure or the CMA274W Quick-Snap Cable Covers.
What is the weight capacity of this extension column?
The CMS012W has a weight capacity of 500 lbs (226.8 kg).
Is this product TAA compliant?
Yes, this SKU is TAA compliant and UL listed.
How does this model differ from other CMS series columns?
This is the white version of the CMS012; the series also offers different lengths and a black finish option.
