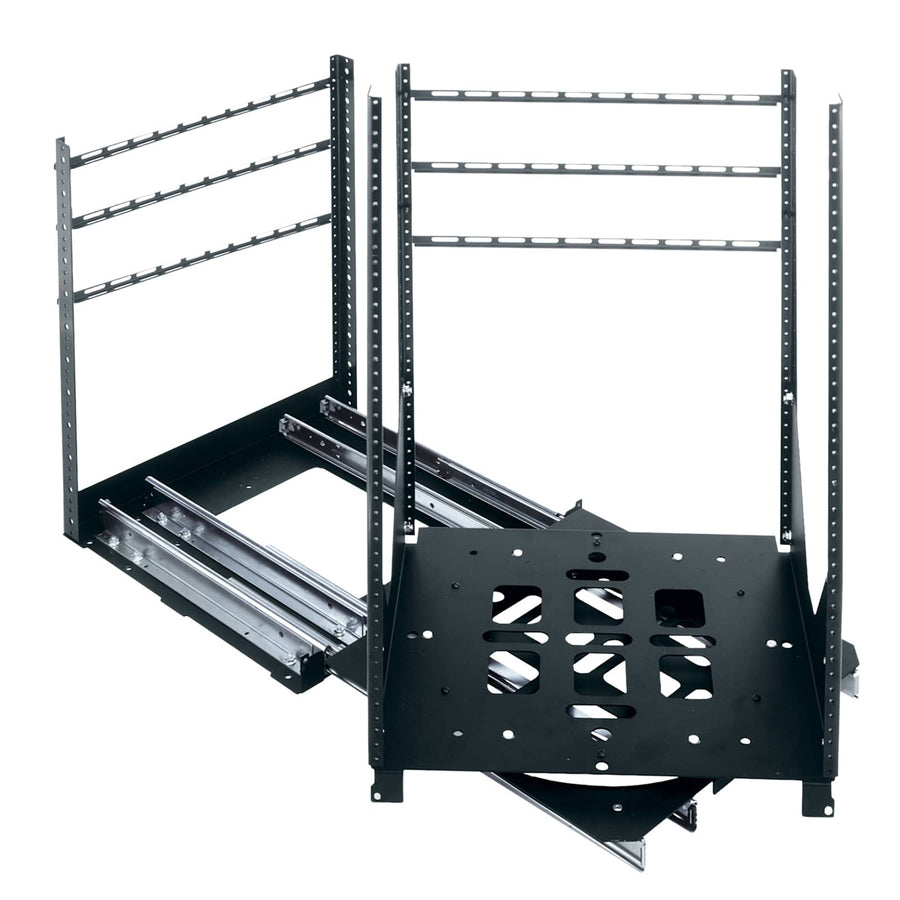

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-28
28 RU slide-out rotating rack system for in-cabinet installations with 200 lbs weight capacity
The Middle Atlantic SRSR-X-28 provides a solution for easy rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This 28 RU system features a removable rack frame, which facilitates both in-shop integration and simplified on-site installation. For installers working in confined spaces, the equipment bay rotates 90° in either direction and can be locked at 0°, 60°, or 90° to simplify servicing and component integration. The system includes a self-centering mounting base to help align the unit within a cabinet opening. For effective cable management, the rear rackrail works in conjunction with rear cable supports. This SRSR-X-28 unit features a black flat powder coat finish and standard 10-32 threaded front and rear rackrails with marked spaces. With a weight capacity of 200 lbs (90.7 kg) and TAA compliance, it is a robust choice for professional system integrators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 52 in (132.1 cm) |
| Rack Units | 28 RU |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 49 in (124.5 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
| Color | Black |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747071928 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60

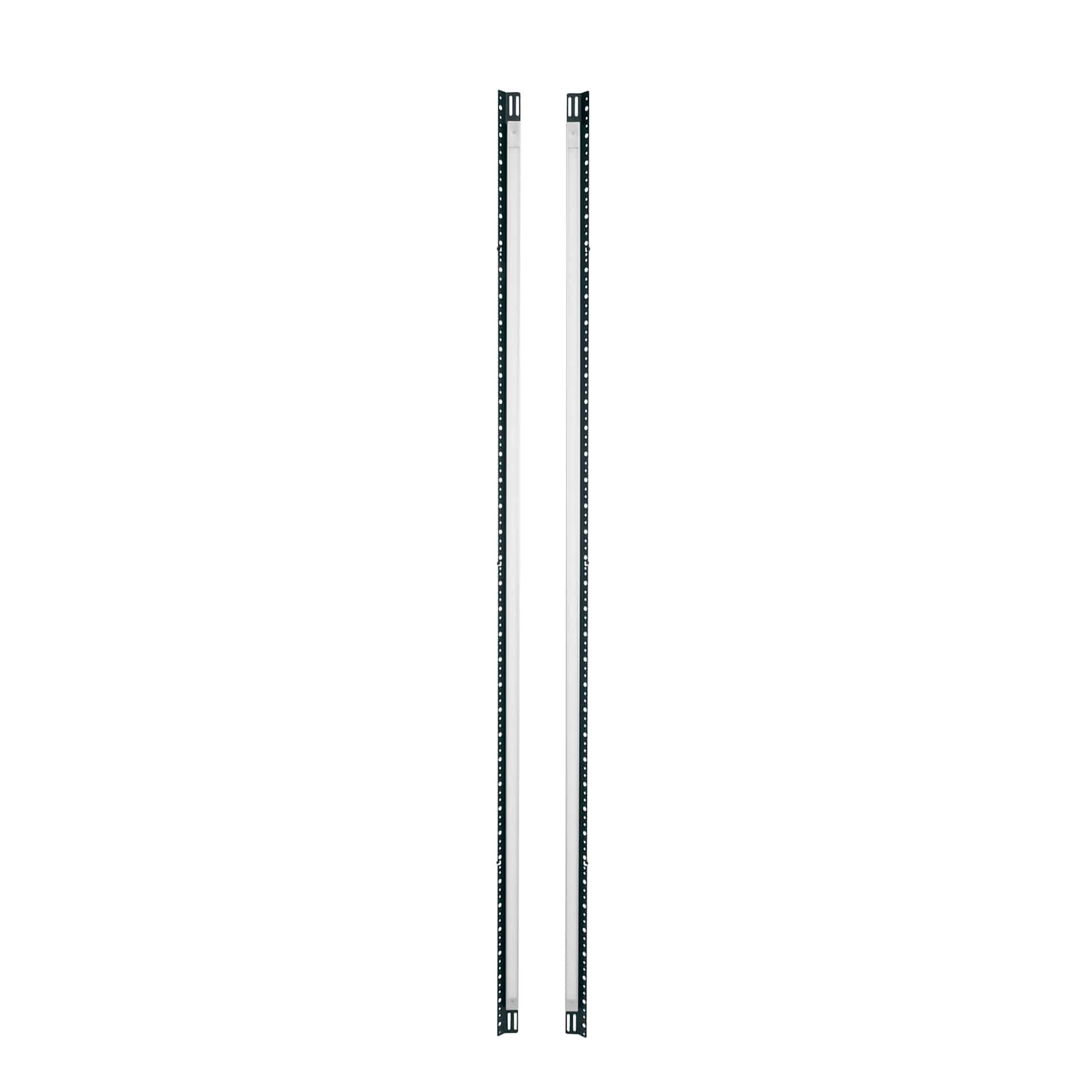

35 RU to 40 RU Forward Full Height Utility Light, White with Dimmer & IR Sensor - 1 Pair
FWD-LT-UTL-35-40-D$450.90
Questions about this part
What is the rotation range of the SRSR-X-28 rack?
The equipment bay rotates 90° in either direction and includes locking positions at 0°, 60°, and 90° for easier installation and service.
How much weight can this 28 RU rack hold?
The SRSR-X-28 has a total weight capacity of 200 lbs (90.7 kg).
Will this rack work for in-cabinet or millwork installations?
Yes, this in-cabinet rack type is specifically designed for easy rear access in millwork, cabinets, and flush in-wall setups.
What is the usable depth for equipment in the SRSR-X-28?
The system has a 23.14 in (58.8 cm) total depth with a usable depth of 21.25 in (54 cm).
What documentation is available for submittals?
Detailed technical information is available via the 3 Part Specification, CAD Technical Specification drawings, and Revit Models.
