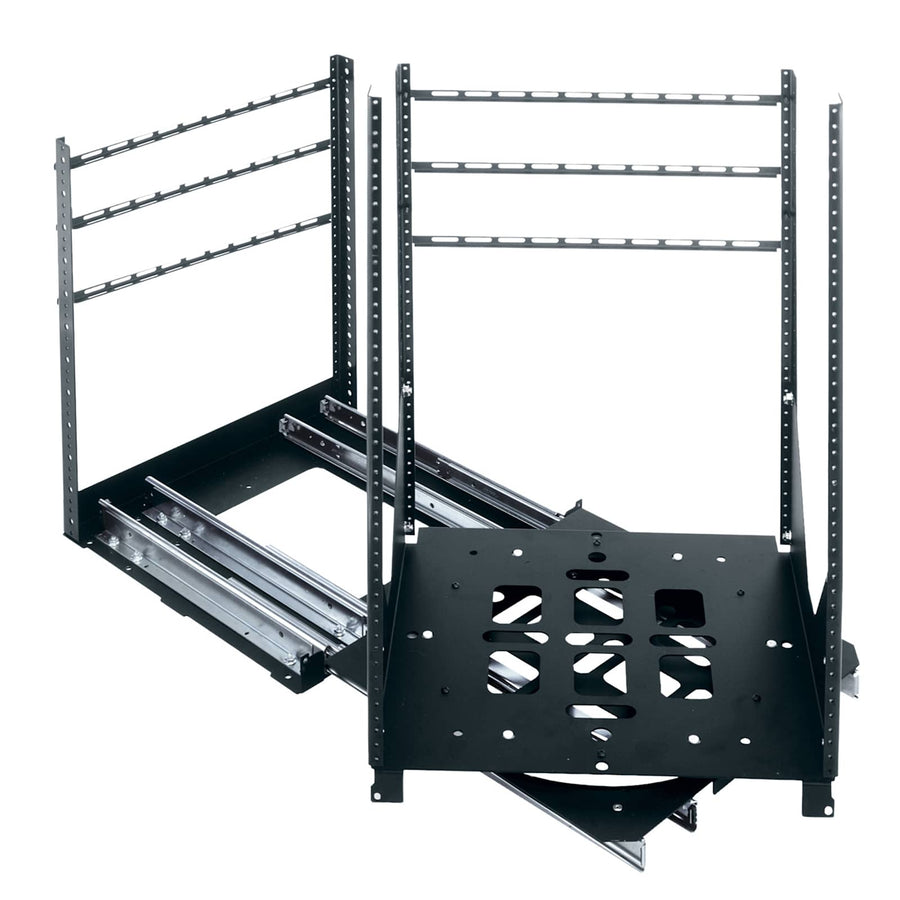

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-26
26 RU slide-out rotating rack system with 200 lbs capacity, designed for easy rear equipment access in cabinets or millwork
The SRSR-X-26 is a 26 RU slide-out rotating rack system engineered to provide easy rear access to equipment connections in millwork, cabinets, and flush in-wall installations. This system is highly versatile for installers working in tight spaces, as the equipment bay can rotate 90º in either direction and locks at 0º, 60º, and 90º to facilitate simplified servicing and installation. It features a self-centering mounting base to assist with alignment within a cabinet opening and includes a removable rack frame that allows for in-shop integration before final on-site deployment. The SRSR-X-26 is TAA compliant and is built with a flat powder coat black finish. The rack utilizes standard 10-32 threaded front and rear rackrails with marked spaces. For effective cable management, the system incorporates rear cable support designed to work in conjunction with the rear rackrail. This unit has a total weight capacity of 200 lbs (90.7 kg) and provides a usable depth of 21.25 in (54 cm) and a usable height of 45.5 in (115.6 cm). The overall dimensions of the unit are 48.5 in (123.2 cm) in height and 23.14 in (58.8 cm) in depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 48.5 in (123.2 cm) |
| Rack Units | 26 RU |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 45.5 in (115.6 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
| Color | Black |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747071904 |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-1$45.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
35 RU to 40 RU Forward Full Height Utility Light, White with Dimmer & IR Sensor - 1 Pair
FWD-LT-UTL-35-40-D$450.90
Questions about this part
Will the SRSR-X-26 work for flush in-wall installations?
Yes, the SRSR-X-26 is specifically designed to provide easy rear access to connections in flush in-wall installations, cabinets, and millwork by rotating the equipment bay.
How much weight can this 26 RU rack support?
The SRSR-X-26 has a total weight capacity of 200 lbs (90.7 kg) and provides a usable depth of 21.25 in (54 cm).
What is the difference between the SRSR-X-26 and other SRSR models?
The SRSR-X-26 is the 26 RU version of the series; other models in the SRSR series vary by different rack unit counts.
What do I need for submittals and technical drawings?
You can access CAD technical specification drawings, Revit models, and 3D CAD drawings through the resources provided for this series.
How do I manage cables in the back of this rack?
The system includes rear cable support that works with the rear 10-32 threaded rackrail for effective cable management.
