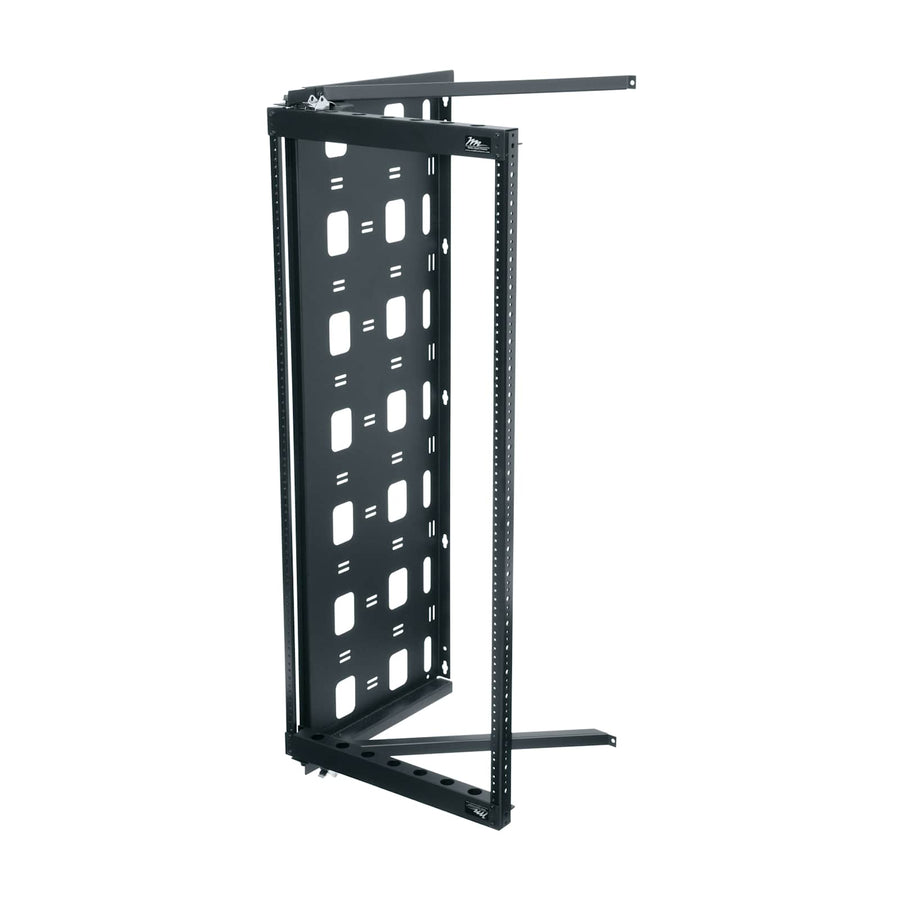

SFR Series Swing Frame Wall Rack - SFR-25-24
25 RU swing frame wall rack, 100 lbs capacity, with open-back design and 90º swing for easy service access
The Middle Atlantic SFR-25-24 is a 25 RU swing frame wall rack engineered to simplify the installation and maintenance of network hardware. Featuring a rugged steel construction, this rack provides a 100 lbs (45.4 kg) weight capacity, making it one of the strongest in its class. Its open-back design is specifically intended to maximize usable wall space and allow for mounting over existing equipment or physical obstructions like telephone lines and conduit. The unique pivot points allow for the swing to be inverted left or right, providing flexibility based on your room layout. It opens to 90º with a positive stop, which is particularly useful when punching down cables. For submittals, installers can reference the SFR Series Swing Frame Wall Racks A&E Specification Sheet. This TAA compliant unit features standard 10-32 threaded rack rails with marked spaces and includes abundant tie points and cable pass-throughs to manage wiring. This unit ships ready-to-assemble for efficient transport.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 24.2 in (61.5 cm) |
| Height | 49.97 in (126.9 cm) |
| Rack Units | 25 RU |
| Shipping Weight | 48 lbs (21.8 kg) |
| Usable Depth | 22 in (55.9 cm) |
| Usable Height | 43.75 in (111.1 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19.6 in (49.8 cm) |
All other specifications 5
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747069659 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
Questions about this part
Will the SFR-25-24 fit my rack-mount equipment?
Yes, it features standard 10-32 threaded rack rails designed to accommodate 25 RU of equipment with a usable height of 43.75 in (111.1 cm).
How much weight can this swing frame rack support?
The rugged steel construction supports a weight capacity of 100 lbs (45.4 kg) for the installed equipment.
What is the difference between the usable and shipping depth?
The product has a 24.2 in (61.5 cm) total depth with a 22 in (55.9 cm) usable depth, while the shipping weight is 48 lbs (21.8 kg).
Can this rack be installed in different orientations?
Yes, the unique pivot point design allows the swing to be inverted to swing either left or right depending on your installation needs.
What do I need to buy to complete my installation?
This rack is a component of the SFR series; you may need accessories like the WUSS17-5 Wide Unit Shelf System or various Vent Panels to manage airflow and hardware.
