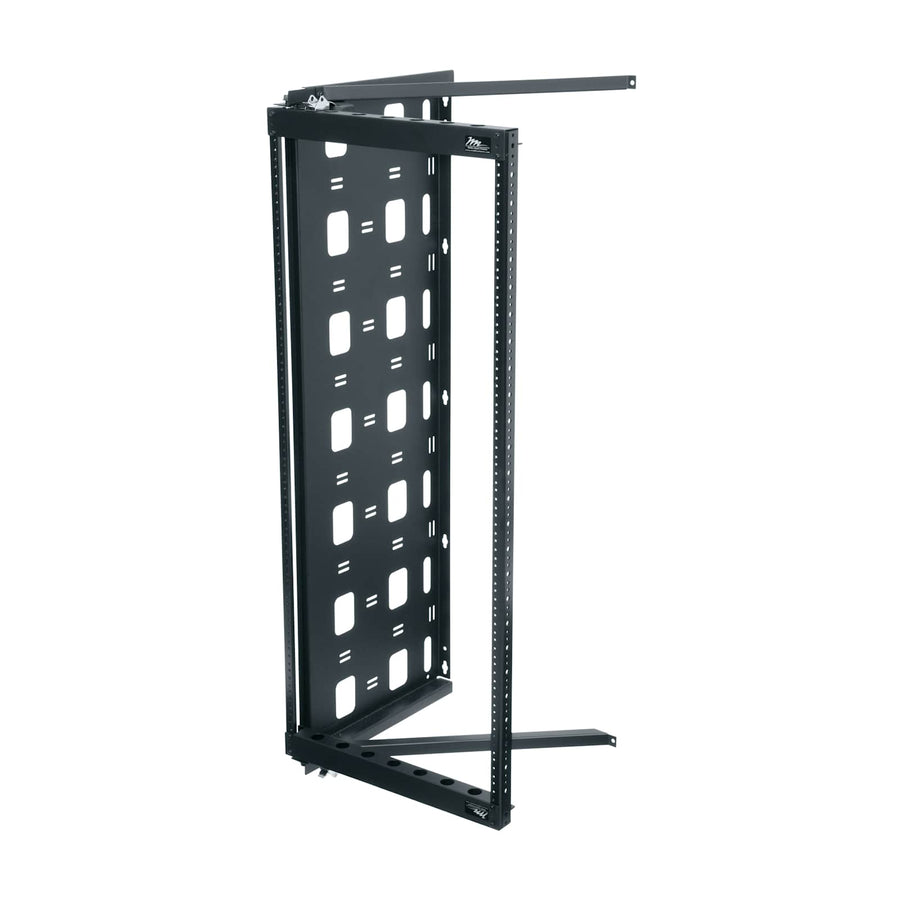

SFR Series Swing Frame Wall Rack - SFR-20-24
20 RU swing frame wall rack with 100 lbs capacity and open-back design for mounting over obstacles
The Middle Atlantic SFR-20-24 is a 20 RU swing frame wall rack designed to maximize usable wall space with its open-back configuration. This rugged steel construction is built for security and durability, offering a 100 lbs (45.4 kg) weight capacity, which provides high strength for mounting patch panels, hubs, or switches in a secure closet or room. The unique design utilizes pivot points that allow the frame to be inverted and swung left or right, providing a 90º opening with a positive stop to facilitate easier punching down and cable management. This 24.2 in (61.5 cm) depth rack features standard 10-32 threaded rack rails with marked spaces and includes abundant tie points and cable pass-throughs to organize connections. For deployment in sensitive environments, this unit is TAA compliant. The ready-to-assemble design allows for flat shipment via UPS, simplifying on-site installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 24.2 in (61.5 cm) |
| Height | 41.22 in (104.7 cm) |
| Rack Units | 20 RU |
| Usable Depth | 22 in (55.9 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19.6 in (49.8 cm) |
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747123429 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
Questions about this part
Can I mount this rack over existing conduit or equipment?
Yes, the open-back design is specifically engineered to be installed over physical obstacles like conduit or existing telephone equipment.
What is the usable space inside the SFR-20-24?
This 20 RU rack provides a usable height of 35 in (88.9 cm) and a usable depth of 22 in (55.9 cm).
How do I manage cabling once the rack is installed?
The frame features abundant tie points and cable pass-throughs, and the 90º swing opening with a positive stop makes punching down much easier.
Is this rack suitable for TAA compliant projects?
Yes, the SFR-20-24 is TAA compliant, making it suitable for federal operations.
What other equipment is compatible with this frame?
It can accommodate accessories such as the RLNK-215 Select Series PDU or various Wide Unit Shelf Systems like the WUSS20-5.
