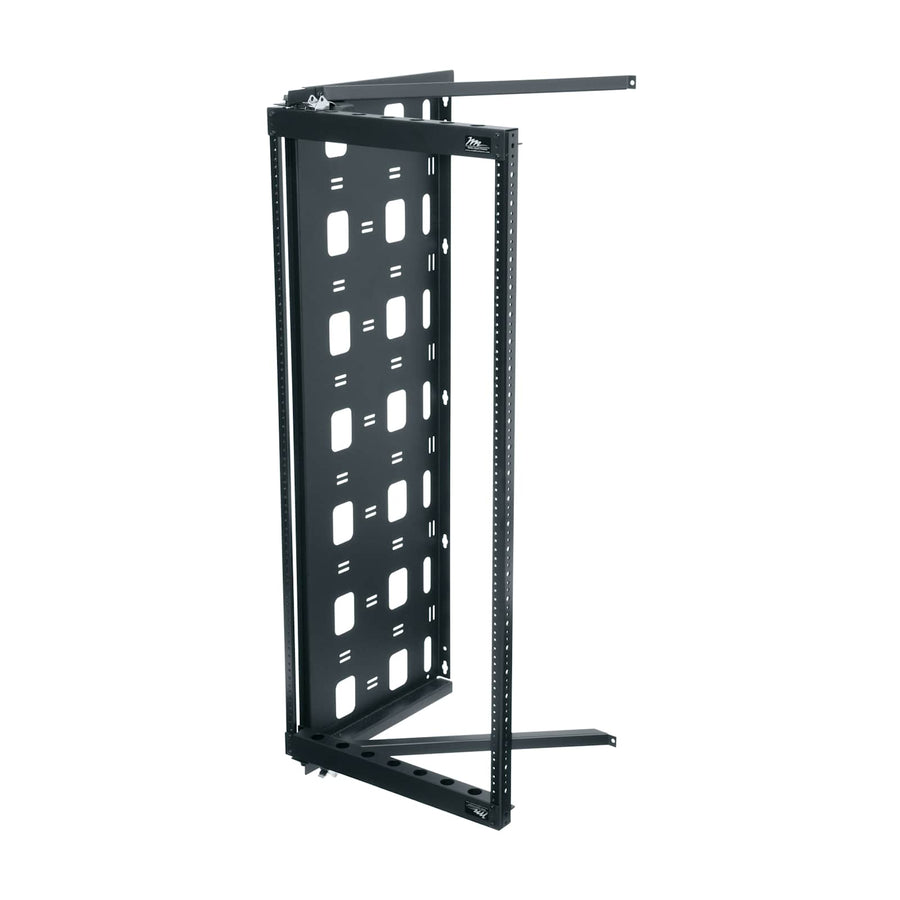

SFR Series Swing Frame Wall Rack - SFR-20-18
20 RU swing frame wall rack for patch panels and switches, 100 lbs capacity, with an open-back design
The SFR-20-18 is a 20 RU swing frame wall rack designed to simplify installation in crowded environments. Featuring an open-back design, this rack maximizes usable wall space and allows for mounting directly over existing equipment or physical obstacles such as telephone equipment and conduit. The rugged steel construction supports a 100 lbs (45.4 kg) weight capacity, offering high structural strength for secure rooms or closets. The frame uses pivot points to allow for a 90° opening with a positive stop, which is ideal for punching down cables. This rack can be inverted to swing either left or right to suit your specific installation requirements. The standard 10-32 threaded rackrails include marked spaces for precise component placement. For easier shipping, this unit features a ready-to-assemble design that allows for flat shipment via UPS.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18.2 in (46.2 cm) |
| Height | 41.22 in (104.7 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 42 lbs (19.1 kg) |
| Usable Depth | 16 in (40.6 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19.6 in (49.8 cm) |
All other specifications 5
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747040849 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
Questions about this part
What is the usable space inside the SFR-20-18?
This 20 RU rack provides a usable height of 35 in (88.9 cm) and a usable depth of 16 in (40.6 cm).
Can the SFR-20-18 be mounted in different directions?
Yes, the design features pivot points that allow the frame to be inverted and allow it to swing either left or right.
What is the weight limit for this rack?
The SFR-20-18 is built with rugged steel and has a weight capacity of 100 lbs (45.4 kg).
Will this rack work for my submittal requirements?
The SFR-20-18 is TAA compliant and has several technical documents available, including a 3D CAD Drawing (dwg) and a Swing Frame Rack Instruction Sheet (PDF).
What accessories are compatible with this swing frame?
You can install various components such as the WUSS17-5 Wide Unit Shelf System, the PDC-915R-6 Rackmount Power, or VTP-1 1 RU Rack Vent Panels.
