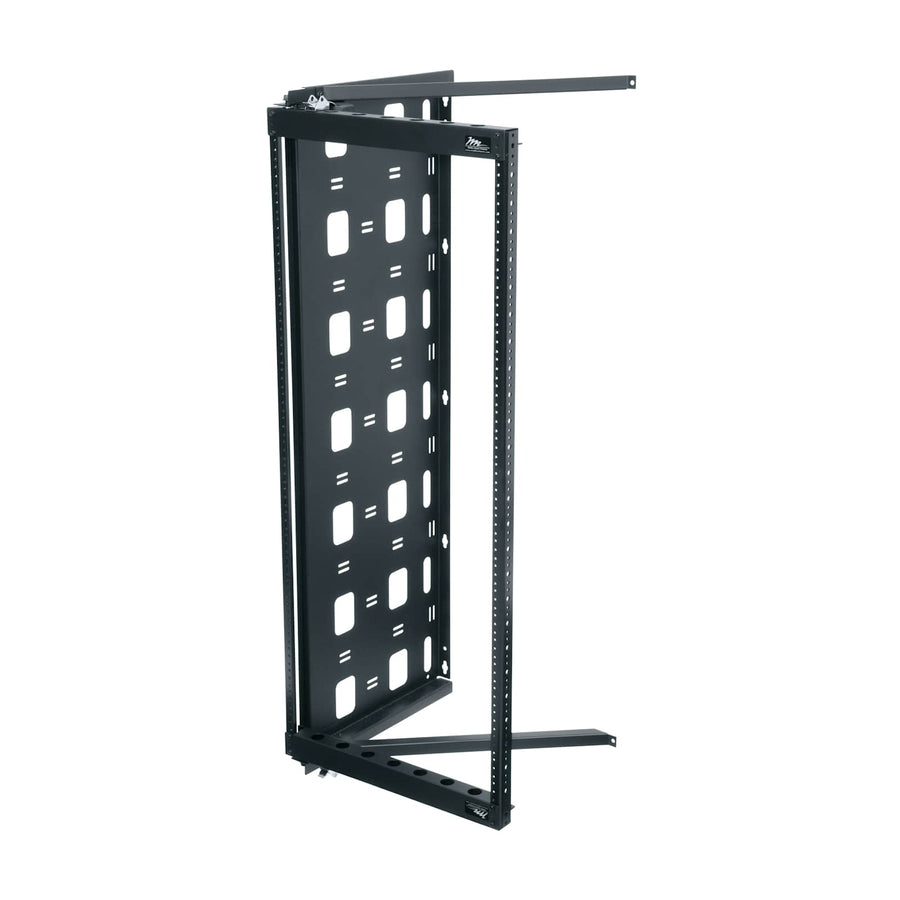

SFR Series Swing Frame Wall Rack - SFR-20-12
20 RU swing frame wall rack with 100 lbs capacity and an open-back design for mounting over existing equipment
The Middle Atlantic SFR-20-12 is a 20 RU swing frame wall rack designed to simplify installations in secure rooms or closets. Its innovative open-back design allows for mounting directly over physical obstacles such as telephone equipment, conduit, or existing hardware, maximizing the available wall space. This rugged steel rack provides a 90° opening with a positive stop, which is particularly useful when punching down connections. The frame can be inverted to swing left or right depending on the installation requirements. This unit features standard 10-32 threaded rack rails with marked spaces for organized equipment placement. It is a TAA compliant solution with a 100 lbs (45.4 kg) weight capacity, making it highly durable for housing patch panels, hubs, and switches. The SFR-20-12 is a member of the SFR Economical Swing Frame Wall Rack Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 12.2 in (31 cm) |
| Height | 41.25 in (104.8 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 38 lbs (17.2 kg) |
| Usable Depth | 10 in (25.4 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19.6 in (49.8 cm) |
All other specifications 5
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747181108 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
3 RU Rack Vent Panel, Perforated with 25% Open Area - 6 Piece Contractor Pack
VTF3-CP6$211.50
3 RU Rack Vent Panel, Perforated with 25% Open Area
VTF3$40.50
Questions about this part
Will this rack fit my equipment in a tight closet?
Yes, the open-back design is specifically intended to mount over existing equipment or physical obstacles like conduit to maximize wall space.
Can the swing frame be oriented in different directions?
Yes, the unique design uses pivot points that allow the frame to be inverted to swing either left or right.
How much weight can the SFR-20-12 support?
The rack has a 100 lbs (45.4 kg) weight capacity, providing high strength for its class.
What accessories are compatible with the SFR series?
You can integrate accessories such as the Select Series PDU with RackLink™ (RLNK-215) or various VTP vent panels for airflow management.
What documentation is available for submittals?
You can access the SFR Series Swing Frame Wall Racks A&E Specification Sheet and the 3-part specification document for project submittals.
