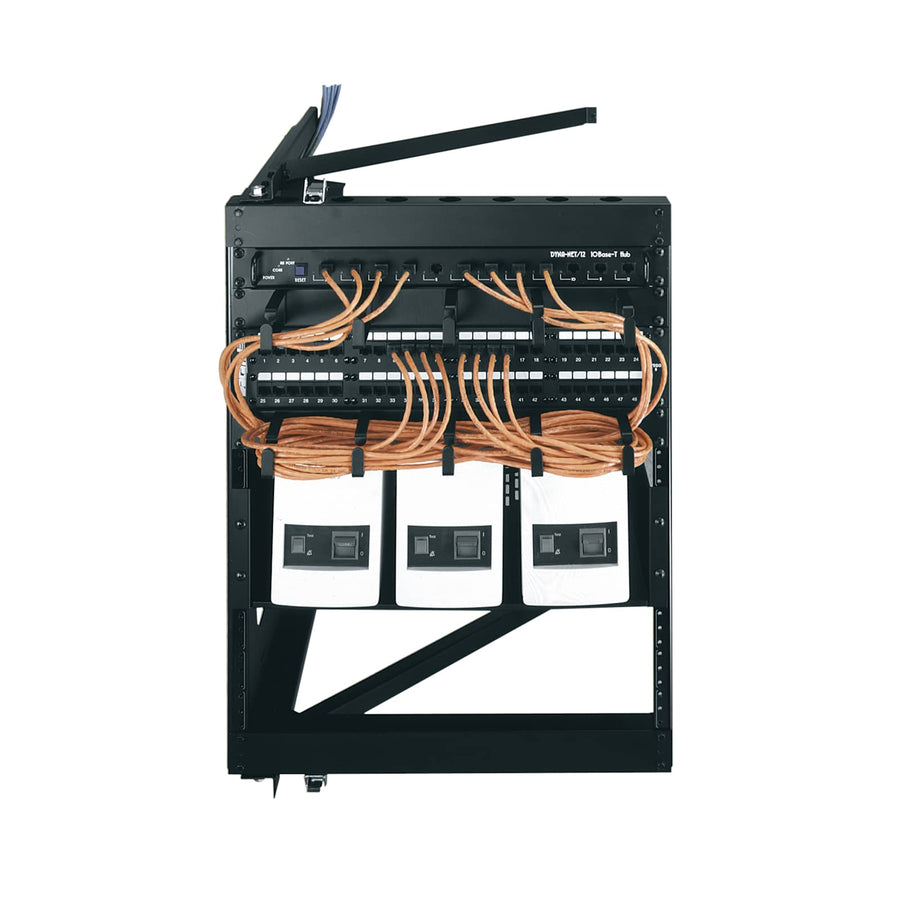

SFR Series Swing Frame Wall Rack - SFR-12-24
12 RU swing frame wall rack with 100 lbs capacity, open-back design, and TAA compliance
The SFR-12-24 is a 12 RU swing frame wall rack designed for mounting network equipment like hubs, switches, and patch panels in secure rooms or closets. Its open-back design is specifically engineered to maximize usable wall space by allowing the rack to be installed directly over existing physical obstacles, such as telephone equipment or conduit. This rugged steel construction offers a 100 lbs (45.4 kg) weight capacity, providing significant strength for its class. This TAA compliant rack features a unique design with pivot points that allow the frame to be inverted for either a left or right swing. It includes 10-32 threaded rack rails with marked spaces for precise component alignment. For installation ease, the unit features a 90º opening with a positive stop to facilitate easier punching down, along with abundant cable pass-throughs and tie points. The ready-to-assemble design allows for efficient flat shipment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 24.2 in (61.5 cm) |
| Height | 27.22 in (69.1 cm) |
| Rack Units | 12 RU |
| Usable Depth | 22 in (55.9 cm) |
| Usable Height | 21 in (53.3 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19.6 in (49.8 cm) |
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747123412 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
How much weight can the SFR-12-24 actually support?
This rack has a weight capacity of 100 lbs (45.4 kg).
Can I mount this rack over existing wall equipment?
Yes, the open-back design is intended for mounting over physical obstacles like conduit or telephone equipment to maximize wall space.
Is this rack TAA compliant?
Yes, the SFR-12-24 is TAA compliant.
Does the rack include mounting hardware for the rails?
The unit ships with 50 rack screws and hook and loop cable fasteners.
What is the usable depth for my equipment?
While the total depth is 24.2 in (61.5 cm), the usable depth is 22 in (55.9 cm).
