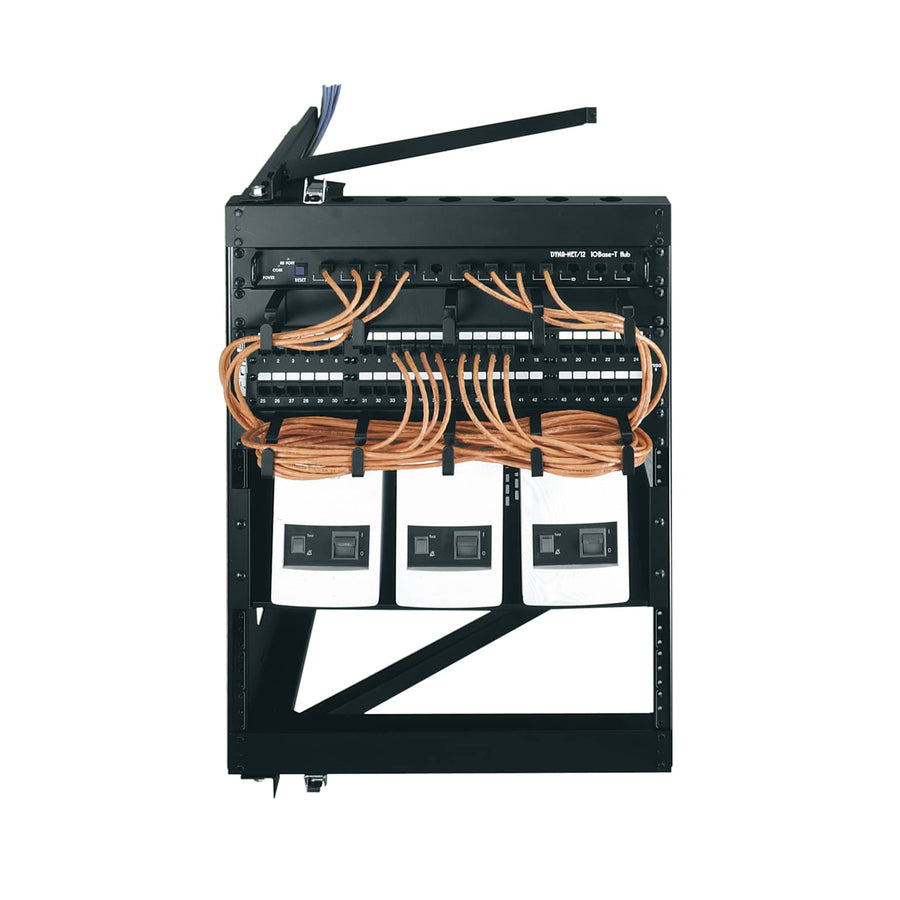

SFR Series Swing Frame Wall Rack - SFR-12-18
12 RU swing frame wall rack with 100 lbs capacity and an open-back design for mounting over existing equipment
The Middle Atlantic SFR-12-18 is a 12 RU swing frame wall rack designed for mounting patch panels, switches, and hubs in secure closets or rooms. Its innovative open-back design allows for installation even when physical obstacles like conduit or existing telephone equipment are present. This rack features a rugged steel construction with a 100 lbs (45.4 kg) weight capacity, offering significant strength for its size class. The frame utilizes pivot points that allow the unit to swing left or right, and it provides a 90º opening with a positive stop to facilitate easier punching down. This 18.2 in (46.2 cm) deep rack uses standard 10-32 threaded rack rails with marked spaces and includes abundant cable pass-throughs and tie points to manage wiring effectively.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18.2 in (46.2 cm) |
| Height | 27.22 in (69.1 cm) |
| Rack Units | 12 RU |
| Shipping Weight | 32.3 lbs (14.7 kg) |
| Usable Depth | 16 in (40.6 cm) |
| Usable Height | 21 in (53.3 cm) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 19.6 in (49.8 cm) |
All other specifications 5
| Federal Ops Country of Origin | Mexico |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747040832 |
| Certifications | TAA |
Resources
You'll need these with it
2 RU Hinged Horizontal Cable Manager
HHCM-2$94.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
Questions about this part
How much weight can the SFR-12-18 rack support?
The SFR-12-18 is built with rugged steel construction that supports a 100 lbs (45.4 kg) weight capacity.
What is the difference between the usable depth and the total depth of this rack?
The total depth of the SFR-12-18 is 18.2 in (46.2 cm), while the usable depth is 16 in (40.6 cm).
Can I swing the rack in both directions?
Yes, the unique design uses pivot points that allow the rack to be inverted to swing either left or right.
Is this rack TAA compliant?
Yes, the SFR-12-18 is TAA compliant.
What accessories are compatible with the SFR series?
Compatible accessories include the HHCM-2 Hinged Horizontal Cable Manager, RLM series MPR modules, and various Vent Panels like the VTF1 or VTP-1.
