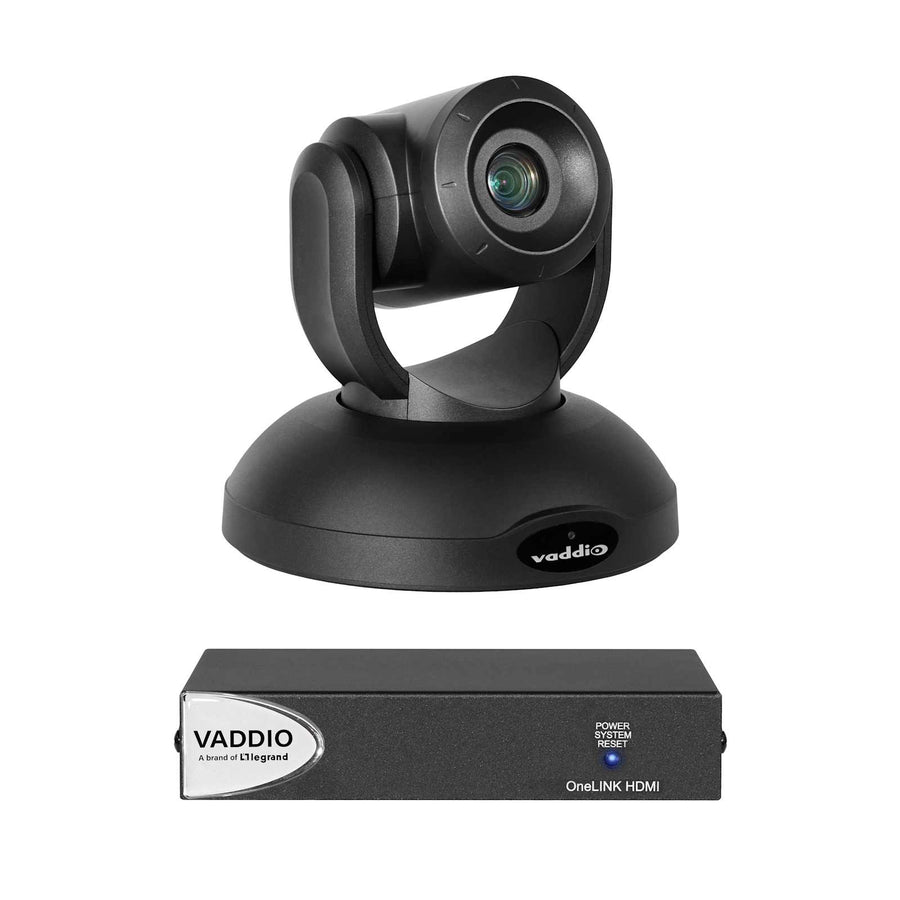

RoboSHOT 40 UHD OneLINK HDMI System
4K PTZ camera system with OneLINK HDMI extension for simplified power, video, and control over a single cable
The Vaddio RoboSHOT 40 UHD OneLINK HDMI System (999-9952-100) provides high-quality 4K video for broadcast and live streaming environments. This system integrates the RoboSHOT 40 UHD PTZ camera with a OneLINK HDMI Receiver, allowing installers to extend power, video, and control over a single Cat-5e/6 cable up to 328 ft (100 m). The camera features a 1/2.5-type Exmor CMOS sensor that delivers native 2160p/30 video, ensuring sharp imagery even in low-light conditions with a minimum illumination of 1.6 Lux (F2.0). Designed for large rooms, the camera offers a 30x zoom at 4K/30 and 40x zoom at 1080p/60. The Tri-Sync motion technology and silent BLDC direct drive motors ensure smooth, jitter-free movement across a pan range of ±160° and tilt range of +90° to -30°. This TAA-compliant system is ideal for campus news, houses of worship, and sporting events. It supports Genlock for multi-camera synchronization and includes a built-in web user interface for remote management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 7.9 in (20.1 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 6 lbs (2.7 kg) |
| Shipping Dimensions | 26" x 15" x 15" (660.4 x 381 x 381 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Width | 8 in (20.3 cm) |
All other specifications 42
| 3rd Party Control | RS232TelnetTrigger |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTouch ScreenWeb UI |
| Estimated Room Size | Large Room |
| Extension System | with OneLINK HDMI |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 2.05° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_5 type Exmor CMOS sensor 4K |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p |
| Minimum Illumination | 1.6 Lux (F2.0) |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control ExtensionAudio MixerUSB 3.0 |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | 3G SDIHDbTHDMIIP Streaming |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±160° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Power Cord | US Cord |
| Power Supply | PoE++ |
| Power Type | Local PowerOneLINKPoE++ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | 3G SDIHDbTHDMIIP Streaming |
| Solution Type | Camera with Extension |
| Special Features | IP StreamingWith OneLINK Extender |
| Switcher Control | IR RemoteRS232TelnetWeb UI |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077506766 |
| Video SN Ratio | Greater than 50 dB |
| White Balance | ATWAutoIndoorManualOne PushOutdoor |
| Zoom | 30x at 4k/3040x at 1080p/60 |
| Certifications | CEFCCHDBaseTTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
CG56784$18.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
RoboSHOT 20 UHD PTZ Camera
999-9950-000Discontinued
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
IN-Wall Enclosure for Vaddio RoboSHOT UHD Cameras
999-2225-021$425.70
IN-Ceiling Half Recessed Enclosure for RoboSHOT UHD Cameras
999-2225-200$1,075.50
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Vaddio Device Controller
999-42300-000$855.00
LT PoE++ Power Injector
802-3303$183.60
PCC Premier
999-5750-000$3,763.80
CMK10 CordMate Cord Organizer Kit
CMK10$25.59
Questions about this part
How far can I run the cable with the OneLINK HDMI system?
Using a Cat-5e cable, you can reach up to 230 ft (70 m), while Cat-6 allows for extensions up to 328 ft (100 m).
What does the OneLINK HDMI extension provide over the single cable?
The OneLINK HDMI extension carries 100BaseT Ethernet, RS-232 control, and power along with the video signal.
Will this camera work with my existing broadcast multi-camera setup?
Yes, the RoboSHOT 40 UHD features an external genlock sync port and phase compensation for precise synchronization in multi-camera environments.
What are the control options for this camera?
You can control the camera via an IR remote, a joystick, RS-232, Telnet, a touch screen, or through the built-in Web UI.
What additional items do I need to mount or install the camera?
Depending on your installation, you may need accessories like the 999-2225-200 In-Ceiling Enclosure or the 999-2225-021 In-Wall Enclosure.
