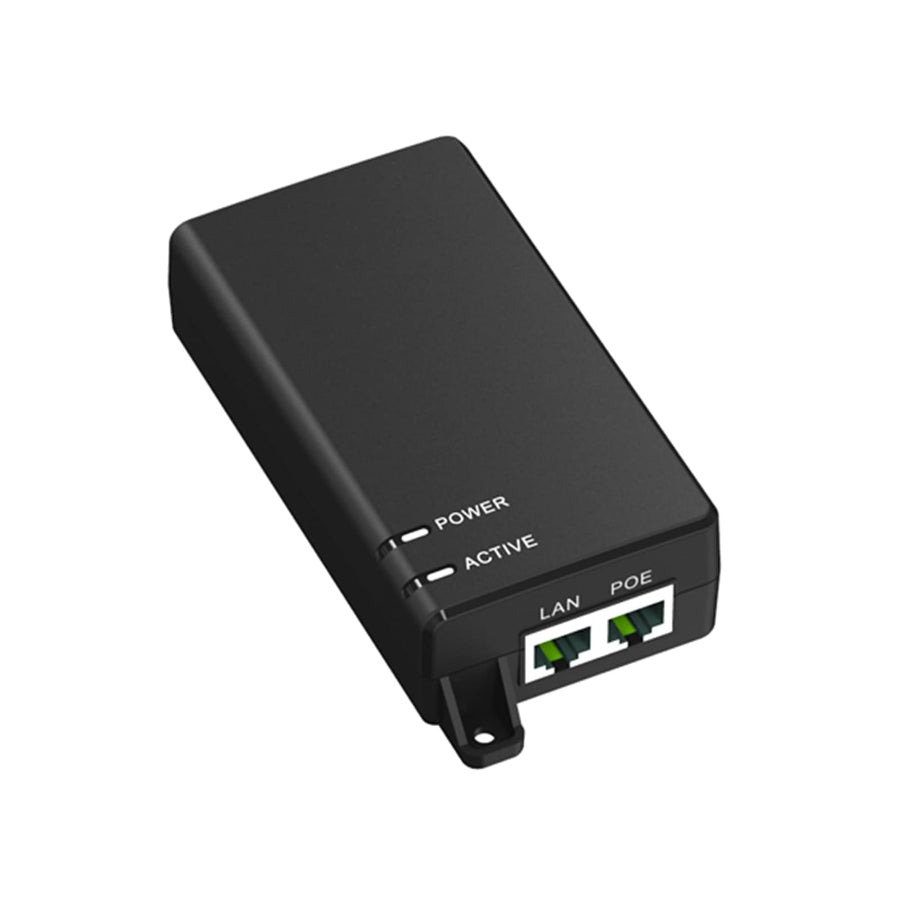

LT PoE++ Power Injector
Single-port LT PoE++ injector providing 60W output and 10/100/1000 Mbps data pass-through via HDBaseT.
The Vaddio 802-3303 LT PoE++ Power Injector is a single-port solution designed to provide power to Vaddio PoE++ products. It utilizes HDBaseT connectivity to deliver 60W of output power while maintaining 10/100/1000 Mbps pass-through data rates. This injector is fully compliant with IEEE802.3af, IEEE802.3at, and PoE++ standards. It supports effective cabling distances of up to 100 meters when using Cat5e or Cat6 cables. Installation is achieved through a plug-and-play method, simplifying the setup for system integrators. Please note that while the injector features a US power cord type, the local AC power cord is sold separately. This unit is UL Listed, FCC compliant, and RoHS/RoHS 2 certified. Operating within a temperature range of 32° to 104°F (0° to 40°C), it is designed for stable performance in various professional AV environments.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Depth | 1.32 in (3.4 cm) |
| Height | 2.59 in (6.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 0.56 lbs (0.3 kg) |
| Storage Temperature | -4° to 158°F (-20°C to 70°C) |
| Width | 5.73 in (14.6 cm) |
| Color | Black |
| Compatible With | OtherVaddio |
All other specifications 10
| Input Ports | HDbT |
| OneLINK Compatibility | No |
| Output Ports | HDbT |
| Power Cord | US Cord |
| Power Type | Local Power |
| Quick-Connect Compatibility | No |
| TAA Compliant | No |
| UPC | 840077507183 |
| Certifications | CEFCCRoHSRoHS 2UL ListedWEEE |
| Warranty | 3 years |
Questions about this part
What is the maximum cable length for the 802-3303?
You can achieve an effective distance of 100 meters using Cat5e or Cat6 cables.
Does the 802-3303 include a power cable?
The local AC power cord is sold separately and is not included in this package.
What data speeds are supported by this injector?
The injector supports 10/100/1000 Mbps pass-through data rates via HDBaseT.
Is the 802-3303 TAA compliant?
This model is not listed as TAA compliant in its current specifications.
What standards does this injector follow for PoE?
It is fully compliant with IEEE802.3af, IEEE802.3at, and PoE++ standards.
