RoboFLIP 4K HDBT OneLINK Bridge System
In-ceiling PTZ camera system with 30x zoom and OneLINK Bridge for single-cable power and video extension

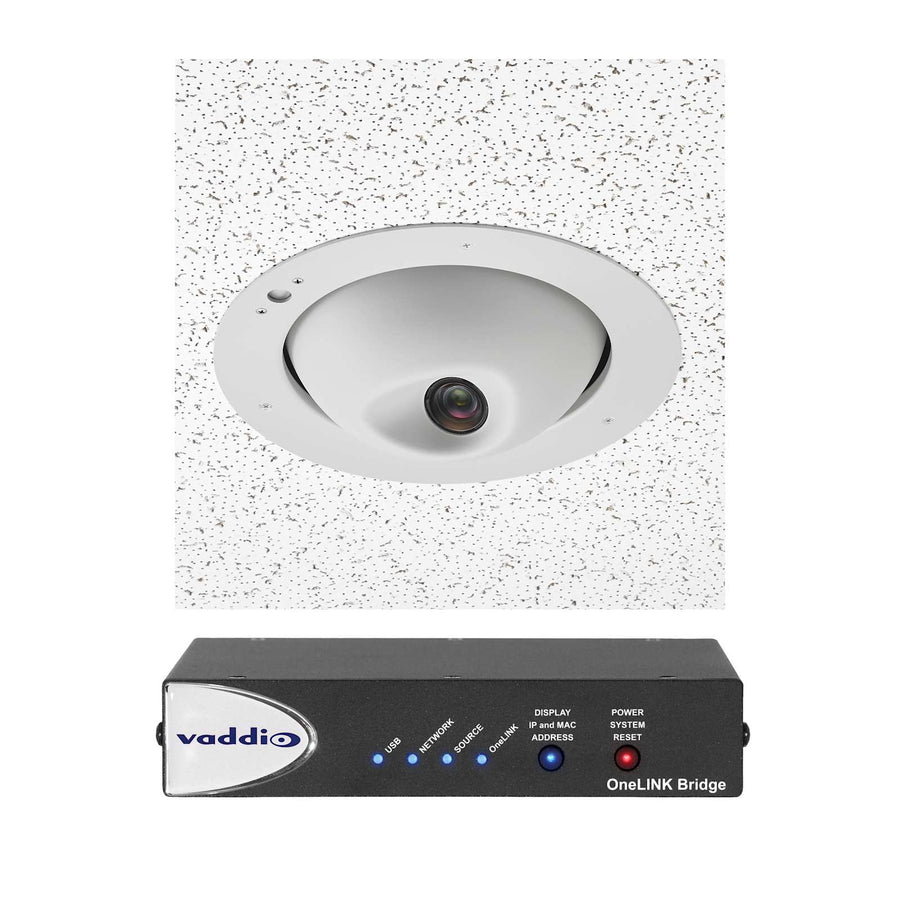

The Vaddio 999-99800-200 RoboFLIP 4K HDBT OneLINK Bridge System provides a discreet, professional imaging solution for medium to large rooms. This recessed ceiling installation system is ideal for corporate boardrooms, courtrooms, and medical facilities where maintaining clean architectural lines is essential. The camera features a unique flipping design that rotates into its enclosure when in standby mode, providing occupants with visual confirmation that the video feed is inactive. Using the included OneLINK Bridge, the system extends power, video, control, and network connectivity over a single cable for up to 328 ft (100 m). This setup supports simultaneous HDBaseT and IP H.264 streaming with 4K/30 resolution. The camera utilizes silent BLDC direct drive motors and Vaddio's Tri-Sync Motion technology to deliver ultra-smooth, simultaneous pan, tilt, and zoom movements. It is TAA compliant and includes a white trim ring, tile support brace, and an IR remote commander. Integrators can manage the 16 custom preset positions via the web UI, RS232, Telnet, or the included IR remote.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Distance | 328 in (833.1 cm) |
| Height | 9.25 in (23.5 cm) |
| Product Weight | 15 lbs (6.8 kg) |
| Shipping Dimensions | 28" x 13" x 18" (711.2 x 330.2 x 457.2 mm) |
| Shipping Weight | 25 lbs (11.3 kg) |
| Width | 16 in (40.6 cm) |
| 3rd Party Control | RS232Telnet |
| Application | Ceiling Recessed |
All other specifications 38
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Extension System | with OneLINK Bridge |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_5 type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 4K 30 |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control Extension3G SDIAudio MixerHDMIUSB 3.0 |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDbT |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±160° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE++ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDbT |
| Solution Type | Camera with Extension |
| Special Features | With OneLINK Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077506254 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCHDBaseTTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
How far can I run the cable to the RoboFLIP 4K HDBT camera?
The OneLINK Bridge allows you to extend power, video, and control up to 328 ft (100 m) over a single cable.
What is included in the RoboFLIP 4K HDBT OneLINK Bridge System package?
This package contains the RoboFLIP 4K HDBT camera, the OneLINK Bridge Interface, a white trim ring (with IR receiver and courtesy light button), a tile support brace, a Vaddio IR remote, a 6 ft. (1.8m) USB 3.0 cable, and an installation guide.
Does this camera support remote management and control?
Yes, you can control the camera via the built-in web UI, RS232, Telnet, or the included IR remote. It is also compatible with the Vaddio Device Controller.
What is the difference between HDBT and IP streaming on this model?
The 999-99800-200 supports simultaneous HDBaseT and IP H.264 streaming, allowing for both high-quality local video and network-based streaming.
Is the RoboFLIP 4K HDBT TAA compliant?
Yes, this camera system is TAA compliant and is designed for professional deployment in secure environments.
