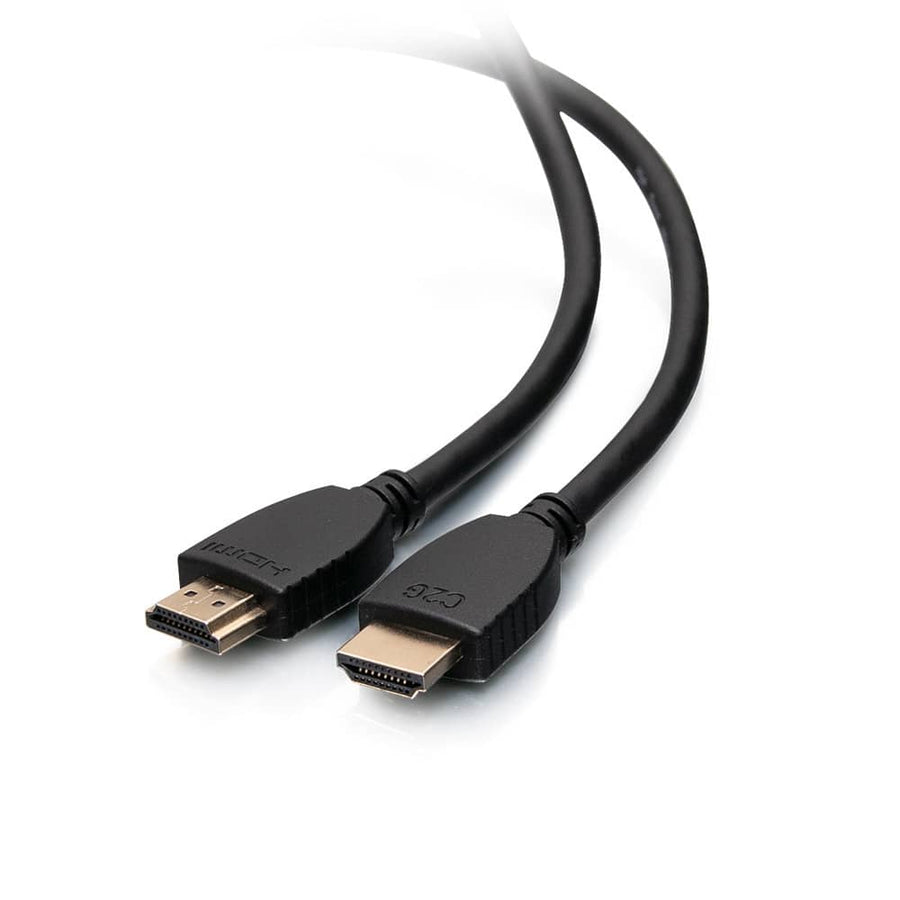

10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
10ft High Speed HDMI cable supporting 4K @ 60Hz, 18 Gbps data transfer, and Ethernet capabilities
The C2G CG56784 is a 10ft (3.1 m) Core Series High Speed HDMI cable designed to deliver high-resolution video and immersive audio for modern AV setups. This cable supports video resolutions up to 4K @ 60Hz (4096 x 2160) and provides a data transfer rate of 18 GbPS. It is built with solid copper conductors and gold-plated HDMI male connectors to ensure increased electrical conductivity and enhanced durability. For advanced media integration, this cable supports the updated Consumer Electronic Control (CEC) commands library, enabling communication between connected devices through the HDMI ports. Additionally, integrated Ethernet capabilities allow Ethernet-enabled HDMI devices to access interactive online content or receive firmware updates. This cable supports 3D video and up to 32 audio channels to provide a high-fidelity multimedia experience. The cable features a 0.24 in (6 mm) diameter, a 1.65 in (42 mm) bend radius, and a VW-1 rated jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.65 in (42 mm) |
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 10 ft (3.1 m) |
| Package Count | 1 |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Cable Type | HDMI |
| Color | Black |
| Conductor Material | Copper |
All other specifications 11
| Conductor Stranding | Solid |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
| Jacket Rating | VW-1 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120567844 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
10ft (3m) Plus Series TAA Premium High Speed HDMI® Cable with Ethernet
C2G50111$49.99
10ft (3m) Performance Series Premium High Speed HDMI® Cable with Ethernet
CG50184$38.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
Questions about this part
Will the CG56784 work with my 4K display?
Yes, this cable is rated for video resolutions up to 4K @ 60Hz (4096 x 2160) with an 18 GbPS data transfer rate.
Does the C2G CG56784 support HDMI-CEC?
Yes, this cable supports CEC extensions, which allows for the control of connected consumer electronics devices through a single control point.
What is the difference between the CG56784 and the CG50184?
The CG56784 is part of the Core Series, whereas the CG50184 is part of the Performance Series Premium High Speed HDMI Cable line.
How long is this HDMI cable?
The CG56784 has a cable length of 10 ft (3.1 m).
What certifications does this cable have?
This cable is NDAA 889, Prop 65, REACH, RoHS, and TSCA compliant.
