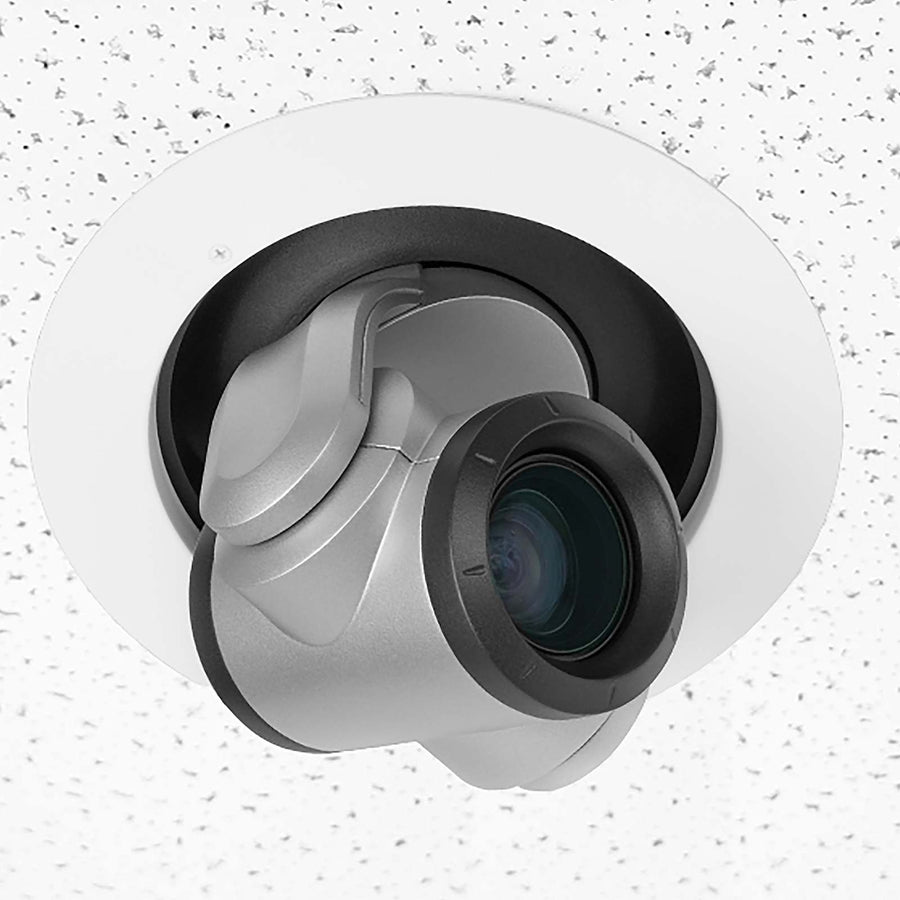

IN-Ceiling Half Recessed Enclosure for RoboSHOT UHD Cameras
Half recessed ceiling enclosure for Vaddio RoboSHOT 20 UHD and 40 UHD cameras, designed for mounting into ceiling tiles
The Vaddio 999-2225-200 is an in-ceiling half recessed enclosure designed to integrate Vaddio RoboSHOT 20 UHD and RoboSHOT 40 UHD cameras into suspended ceiling environments. This enclosure allows the camera to sit halfway into a ceiling tile, providing a clean, professional aesthetic for conference rooms and lecture halls. The system consists of a metal back box that requires two camera mounting screws and a back box lid with a collar ring secured by four mounting screws. A white trim ring completes the installation with two mounting screws. To facilitate installation in grid ceilings, the enclosure includes a tile support brace. For electrical connections, the unit features a 3/4" clamp down conduit connector designed for romex type wiring. This TAA compliant enclosure is built for professional integration and is compatible with Vaddio camera systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 12 in (30.5 cm) |
| Height | 3.58 in (9.1 cm) |
| Product Weight | 4.1 lbs (1.9 kg) |
| Shipping Dimensions | 24" x 17" x 13" (609.6 x 431.8 x 330.2 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Width | 10 in (25.4 cm) |
| Application | Ceiling |
| Color | White |
All other specifications 5
| Compatible With | Vaddio |
| TAA Compliant | Yes |
| UPC | 840077501044 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Verified fitment
Questions about this part
Which Vaddio cameras are compatible with the 999-2225-200 enclosure?
This enclosure is verified for use with Vaddio RoboSHOT 20 UHD and RoboSHOT 40 UHD cameras.
How do I mount this in a suspended ceiling?
The enclosure includes a tile support brace to assist with mounting within a ceiling tile grid.
What type of conduit connection is used for wiring?
The unit is equipped with a 3/4" clamp down conduit connector specifically for romex type wiring.
What is the difference between this and the 999-2225-021?
The 999-2225-021 is an IN-Wall Enclosure, whereas the 999-2225-200 is designed specifically for in-ceiling mounting.
What documents are available for installation planning?
Installation guides and CAD drawings are available, including a PDF installation guide and a DWG drawing for the RoboSHOT 20 UHD version.
