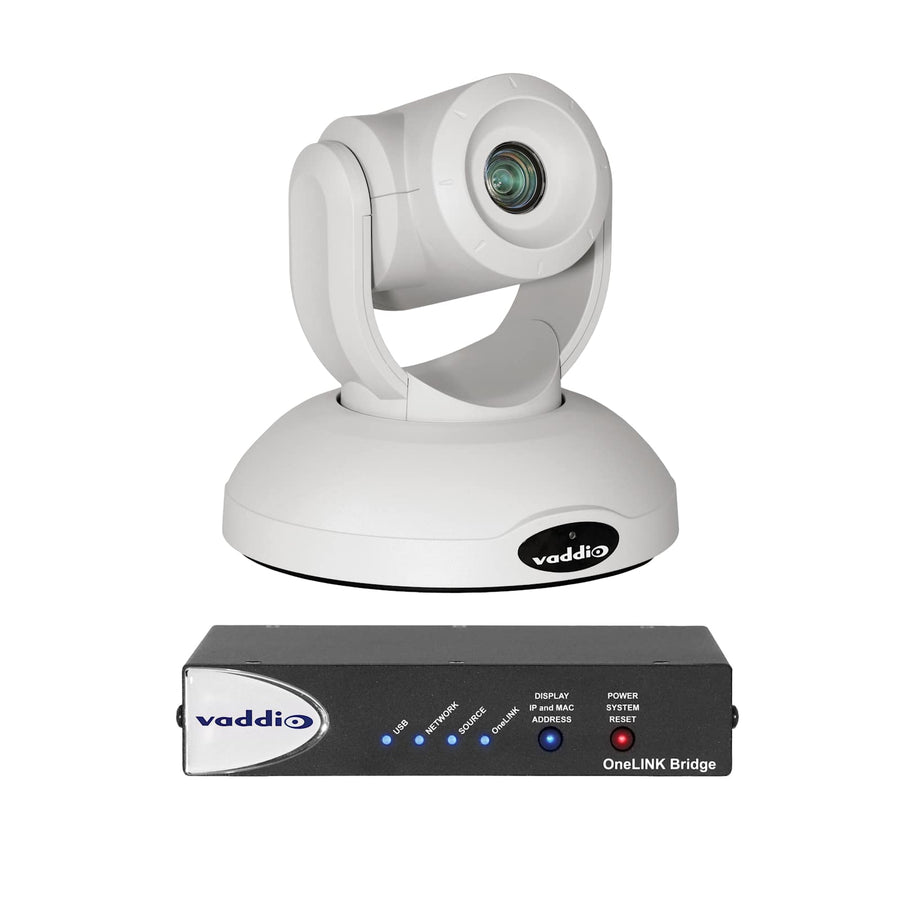

RoboSHOT 40 UHD OneLINK Bridge System
4K PTZ camera system with OneLINK Bridge for single-cable power, video, and control extension up to 328 ft
The RoboSHOT 40 UHD OneLINK Bridge System (999-9952-200W) integrates a high-performance RoboSHOT 40 UHD PTZ camera with a OneLINK Bridge to simplify complex installations. By utilizing HDBaseT technology, this system delivers power, video, and control over a single Cat-5e or Cat-6 cable for distances reaching up to 328 ft (100 m). This single-cable solution reduces clutter in large room environments like lecture halls or event venues. The system features a 1/2.5-type Exmor CMOS sensor providing native 2160p/30 video with high contrast and sharp detail, even in low-light conditions. The camera offers 30x lossless zoom at 4K/30fps and achieves 40x zoom at 1080p/60fps. For broadcast applications, it includes a genlock external sync port with phase compensation for accurate multi-camera synchronization. The OneLINK Bridge also functions as a USB 3.0 bridge, connecting non-USB cameras and audio sources to conferencing applications like Zoom or Google Hangouts via a single connection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 7.9 in (20.1 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 6 lbs (2.7 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Width | 8 in (20.3 cm) |
All other specifications 42
| 3rd Party Control | RS232TelnetTrigger |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTouch ScreenWeb UI |
| Estimated Room Size | Large Room |
| Extension System | with OneLINK Bridge |
| Extension Type | Camera |
| Field of View | 70.2° Wide End to 2.05° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_5 type Exmor CMOS sensor 4K |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p |
| Minimum Illumination | 1.6 Lux (F2.0) |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control ExtensionAudio MixerUSB 3.0 |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | 3G SDIHDbTHDMIIP StreamingUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±160° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Power Cord | US Cord |
| Power Supply | PoE++ |
| Power Type | Local PowerOneLINKPoE++ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | 3G SDIHDbTHDMIIP Streaming |
| Solution Type | Camera with Extension |
| Special Features | IP StreamingWith OneLINK Extender |
| Switcher Control | IR RemoteRS232TelnetWeb UI |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077506797 |
| Video SN Ratio | Greater than 50 dB |
| White Balance | ATWAutoIndoorManualOne PushOutdoor |
| Zoom | 30x at 4k/3040x at 1080p/60 |
| Certifications | CEFCCHDBaseTTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
OneLINK HDMI Extension for Vaddio HDBaseT Cameras
999-1105-043$1,579.50
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
IN-Wall Enclosure for Vaddio RoboSHOT UHD Cameras
999-2225-021$425.70
IN-Ceiling Half Recessed Enclosure for RoboSHOT UHD Cameras
999-2225-200$1,075.50
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Vaddio Device Controller
999-42300-000$855.00
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60
OneLINK Bridge for Vaddio HDBaseT Cameras
999-9595-000$2,741.40
LT PoE++ Power Injector
802-3303$183.60
Questions about this part
Will the RoboSHOT 40 UHD OneLINK Bridge fit my large room installation?
Yes, this system is designed for large rooms and can extend power, video, and control up to 328 ft (100 m) using Cat-6 or 230 ft (70 m) using Cat-5e.
How do I connect the camera to a USB conferencing application?
The OneLINK Bridge acts as a bridge to a USB 3.0 stream, allowing you to connect non-USB cameras and audio sources to platforms like Zoom or Google Hangouts.
What mounting hardware is needed for this camera?
While the camera can be wall or ceiling mounted, you may need to purchase specific enclosures like the 999-2225-043 in-wall enclosure or the 999-2225-200 in-ceiling enclosure.
Can this camera be used in a professional broadcast environment?
Yes, the RoboSHOT 40 UHD includes a genlock external sync port with phase compensation for accurate synchronization across multiple cameras.
Does this system comply with TAA requirements?
Yes, the RoboSHOT 40 UHD OneLINK Bridge System is TAA compliant and holds CE and FCC certifications.
