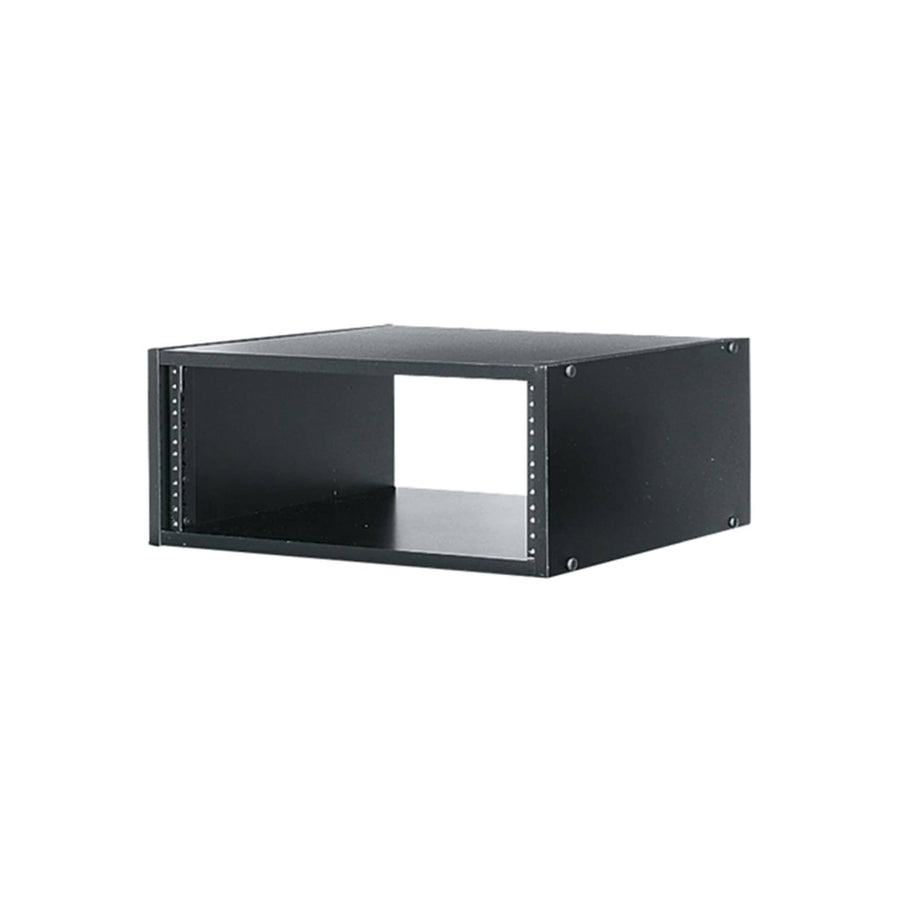

RK Series Black Laminate Rack - RK4
4 RU wood laminate rack in black wood grain with 200 lbs capacity and 10-32 threaded rails
The Middle Atlantic RK4 is a 4 RU knockdown series laminate rack designed for efficient shipping and assembly. This black wood grain rack features a 20.4 in (51.8 cm) width and a 15.91 in (40.4 cm) depth. It provides a usable height of 7 in (17.8 cm) and a usable depth of 15.41 in (39.1 cm) for equipment installation. The structure is built with wood and supports a weight capacity of 200 lbs (90.7 kg). This rack is TAA compliant and PEP certified. The knockdown design allows for flat shipment via UPS, and the unit is easily assembled using the included hardware. It features 10-32 threaded front rackrails for securing components.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.91 in (40.4 cm) |
| Height | 8.48 in (21.5 cm) |
| Rack Units | 4 RU |
| Shipping Weight | 18.2 lbs (8.3 kg) |
| Usable Depth | 15.41 in (39.1 cm) |
| Usable Height | 7 in (17.8 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.4 in (51.8 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747014185 |
Resources
You'll need these with it
Multi-Mount PDU, 20 Outlet & 15A
PD-2015R-NS$333.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
4 RU Rackrail 10-32 for RK,MBRK,OBRK,BRK Racks
RK-RR4$25.20
3 RU Fixed Security Cover With Hinged Plexi Door
SECL-3$113.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
What is the usable depth and height for equipment in the RK4?
The RK4 provides a usable height of 7 in (17.8 cm) and a usable depth of 15.41 in (39.1 cm).
What equipment can be mounted in this 4 RU rack?
This rack is compatible with various accessories including the PD-2015R-NS Multi-Mount PDU, UMS1-11-5 1 RU UMS Rackshelf, and VTF3 3 RU Rack Vent Panels.
Does the RK4 come as a pre-assembled unit?
No, the RK4 is a knockdown rack designed for flat shipment, but it is easily assembled with the included hardware.
What is the total weight capacity of the RK4?
The RK4 has a weight capacity of 200 lbs (90.7 kg).
Which documentation is available for submittals?
Installers can access the BRK Series Instruction Sheet, CAD Technical Specification Drawings, or Revit Models for submittal and installation planning.
