Multi-Mount PDU, 20 Outlet & 15A
1RU Multi-Mount PDU providing 20 outlets and 15A capacity for versatile horizontal or vertical installation

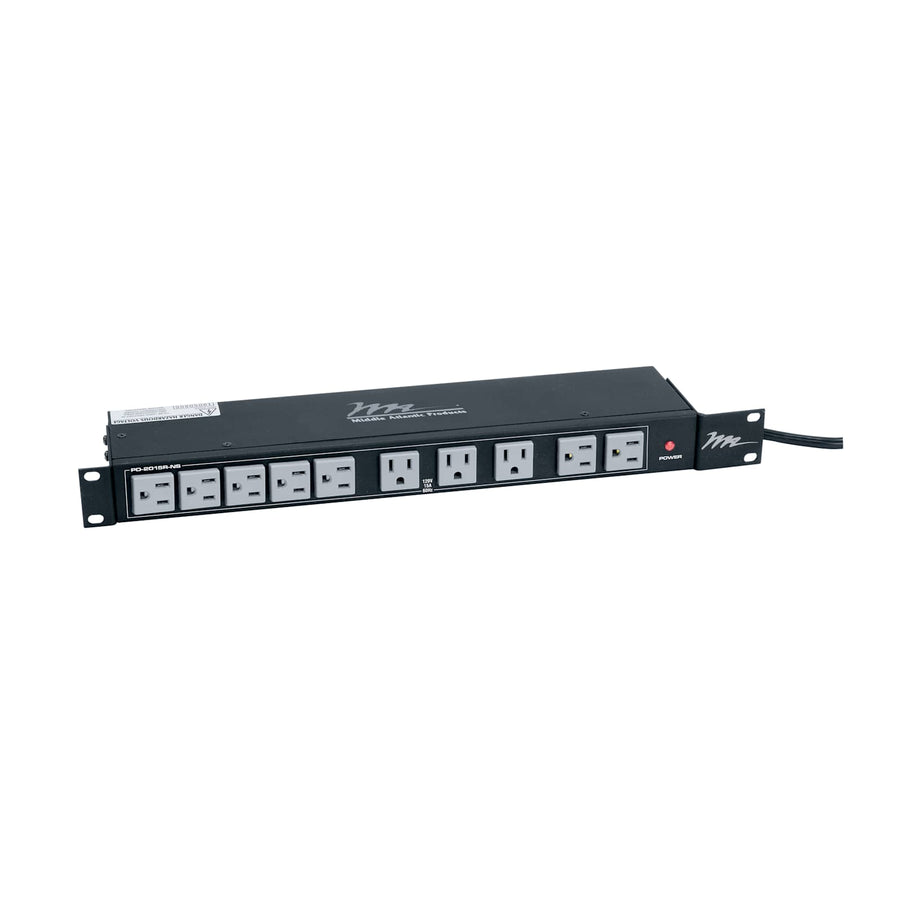

The Middle Atlantic PD-2015R-NS is a 1RU Multi-Mount PDU designed to provide flexible power distribution in various rack configurations. This unit features 20 outlets with varied orientations to accommodate many different plug styles. Its reversible, adjustable mounting ears allow for both horizontal and vertical installation, ensuring power is accessible exactly where it is required in a system. The chassis is designed with a shallow 4.37 in (11.1 cm) depth to maximize available space for other equipment in a rack. This specific model includes a 9 ft (2.7 m) SignalSAFE power cord, which is engineered to minimize potential interference caused by AC magnetic fields from other equipment in the rack. The device operates on 120 VAC with a 15 Amp capacity and uses a standard 5-15P plug type. This ETL Listed power solution is built for professional installation environments where space optimization and mounting versatility are required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 4.37 in (11.1 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Volts AC | 120 VAC |
| Width | 19 in (48.3 cm) |
| Cable Type | Corded |
All other specifications 9
| Mounting Points | 2 |
| Multi-Mount | Yes |
| Number of Circuits | 1 |
| Outlet Count | 20 |
| Plug Type | 5-15P |
| Power Switch | No |
| TAA Compliant | No |
| UPC | 656747105319 |
| Certifications | ETL Listed |
Resources
Questions about this part
How can I mount the PD-2015R-NS in my rack?
The PD-2015R-NS features reversible and adjustable mounting ears, allowing you to install the unit either horizontally or vertically depending on your space requirements.
Will this PDU fit standard rack equipment?
Yes, the PD-2015R-NS is a 1RU chassis with a 19 in (48.3 cm) width, making it compatible with standard rack mounting configurations.
What is the purpose of the SignalSAFE power cord?
The included 9 ft (2.7 m) SignalSAFE power cord is designed to minimize potential interference from AC magnetic fields generated by other equipment in your rack.
Does the PD-2015R-NS include a power switch?
No, this specific model (PD-2015R-NS) is designed without an integrated power switch.
What is the total amperage and outlet count for this PDU?
The PD-2015R-NS provides 20 outlets and operates on a 15 Amp, 120 VAC circuit.
