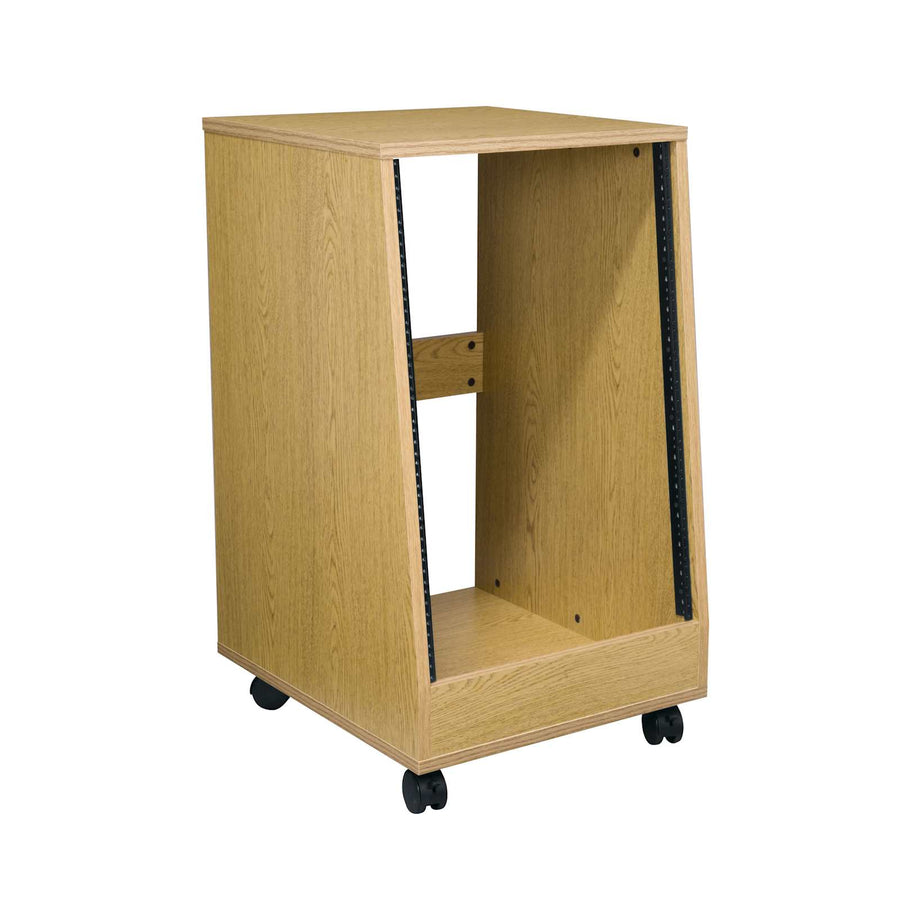

OSR Series Sloped Oak Rolling Rack - OSR16
16 RU sloped oak laminate rolling rack with 200 lbs capacity and a 5° angled face
The OSR16 is a 16 RU rolling rack featuring a 5° gently sloped face designed to facilitate easier equipment viewing. This wood rack is constructed from sturdy 3/4" oak laminate and includes pre-installed heavy-gauge 10-32 threaded front rackrails. For ease of transport, the unit includes casters and utilizes a knockdown design, which allows for flat shipment via UPS. This model has a total width of 20.7 in (52.6 cm) and a height of 36.37 in (92.4 cm). It provides a usable height of 28 in (71.1 cm) and a usable depth of 19.24 in (48.9 cm) within a 23 in (58.4 cm) overall depth. The unit supports a weight capacity of 200 lbs (90.7 kg). This TAA compliant rack is part of the OSR series, which also includes a 24 RU version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 23 in (58.4 cm) |
| Height | 36.37 in (92.4 cm) |
| Rack Units | 16 RU |
| Usable Depth | 19.24 in (48.9 cm) |
| Usable Height | 28 in (71.1 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.7 in (52.6 cm) |
| Finish | Oak Laminate |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747012211 |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
What is the usable depth and height of the OSR16?
The OSR16 provides a usable height of 28 in (71.1 cm) and a usable depth of 19.24 in (48.9 cm).
Will it support my equipment's weight?
This rack has a weight capacity of 200 lbs (90.7 kg).
What is the difference between this and the other OSR series rack?
The OSR16 is the 16 RU version of this series; the OSR series also offers a 24 RU option.
What rackrails are used in this unit?
The OSR16 includes pre-installed heavy-gauge 10-32 threaded front rackrails.
What documents are available for submittals?
You can access the OSR Instruction Sheet, CAD technical drawings (dwg), Revit models (rfa), and the A&E Specification Sheet via the Resources tab.
