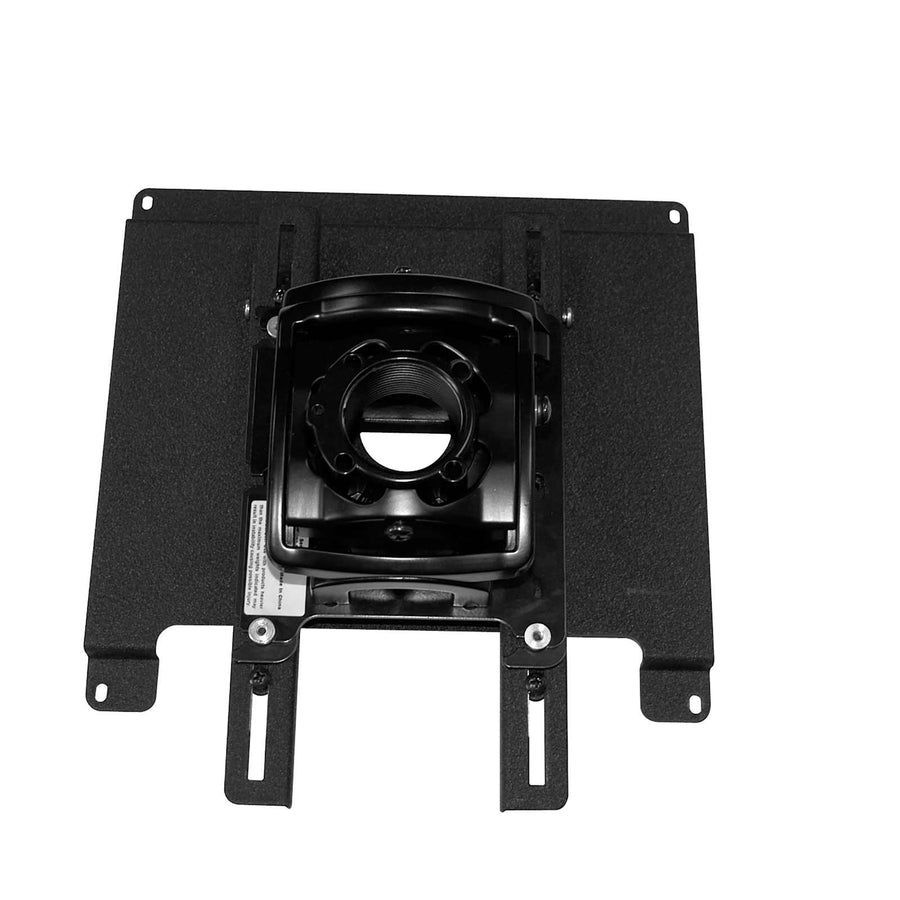

LSB101, Lateral Shift Bracket for RPMA Mount
Lateral shift bracket for RPMA mounts providing 3" (76 mm) of right/left or front/back adjustment
The LSB101 lateral shift bracket is an essential accessory for the Chief RPMA mount series, enabling precise projector positioning. This component provides up to 3" (76 mm) of adjustment in either a lateral (right/left) or longitudinal (front/back) direction. Designed to integrate with the RPM Elite Series, it maintains the essential quick-disconnect feature of the mount and is compatible with the Q-Lock™ Integrated Security system. This bracket supports a weight capacity of 50 lbs (22.7 kg). When installed, the bracket maintains the All-Points Security standard, ensuring the projector remains stable and secure. The unit is UL Listed and measures 10.9" x 0.9" x 5.5" (278 x 23 x 140 mm). This component is specifically required for installers needing to correct the alignment of a projector mounted on an RPMA base series mount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 5.5 in (14 cm) |
| Height | 0.9 in (2.3 cm) |
| Overall Dimensions | 0.9" x 10.9" x 5.5" (23 x 278 x 140 mm) |
| Shipping Weight | 1.93 lbs (0.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 10.9 in (27.7 cm) |
| Accessory Type | Lateral Shift |
| Base Series | RPMA |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872102580 |
| Certifications | UL Listed |
Resources
You'll need these with it

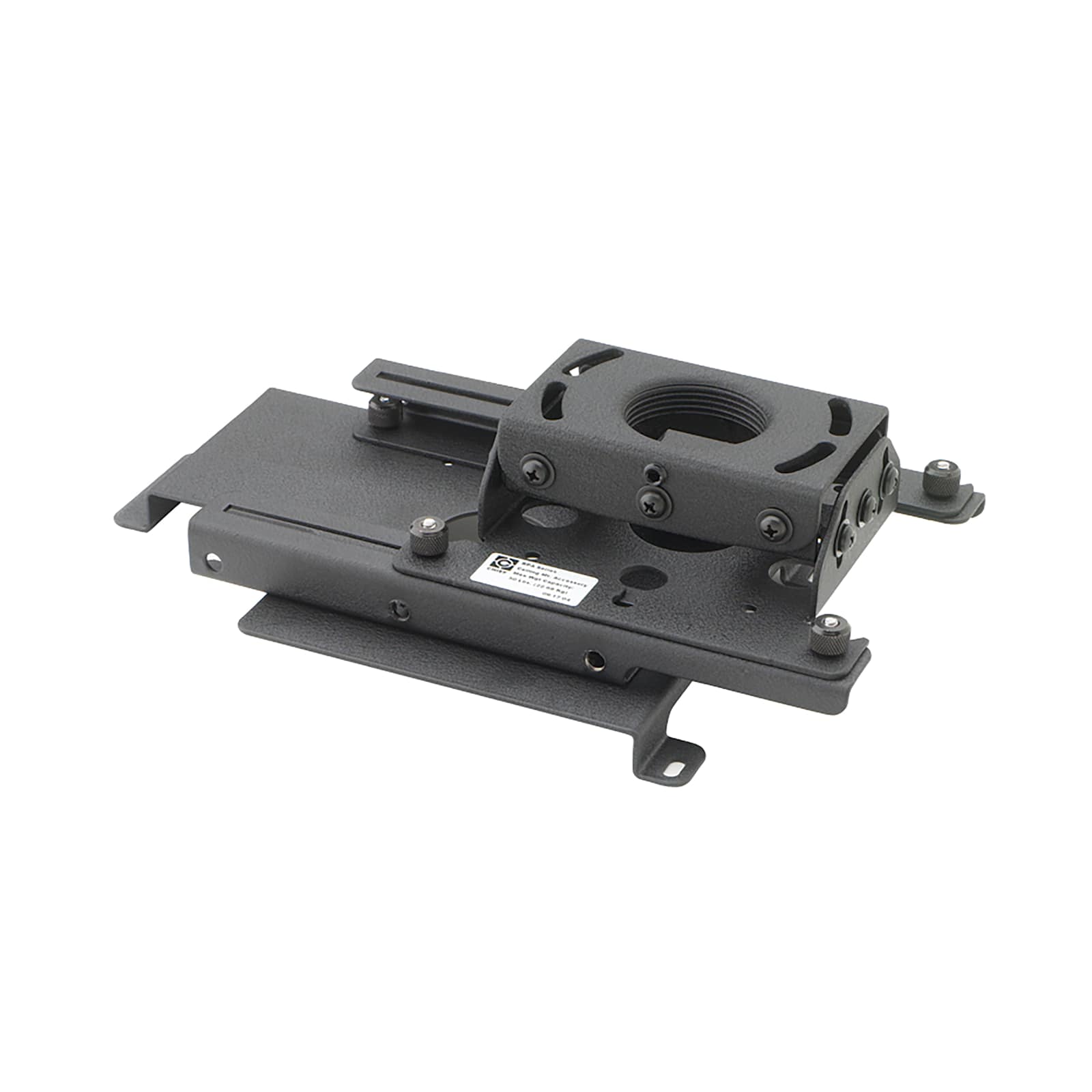

LSB100, Lateral Shift Bracket for LCD/DLP Projector Mounts
LSB100$52.00

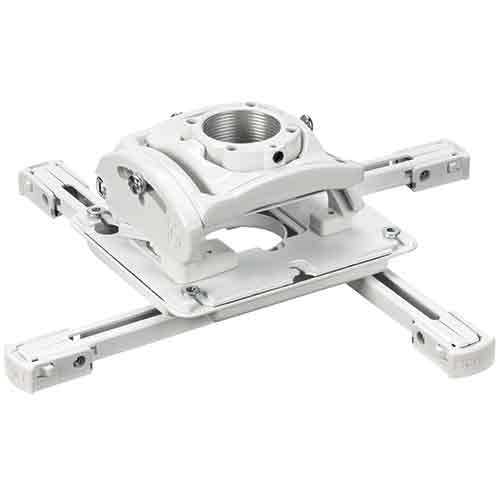

RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBUW
RPMBUW$303.20
RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCUS
RPMCUS$303.20
RPA Elite (Mount Only)
RPMA000W$237.60
RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCUW
RPMCUW$303.20

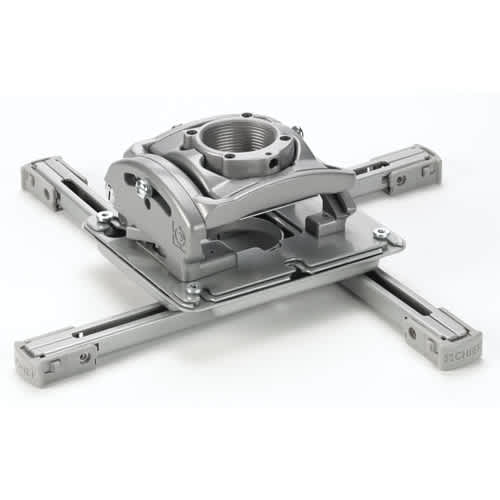

RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBUS
RPMBUS$303.20

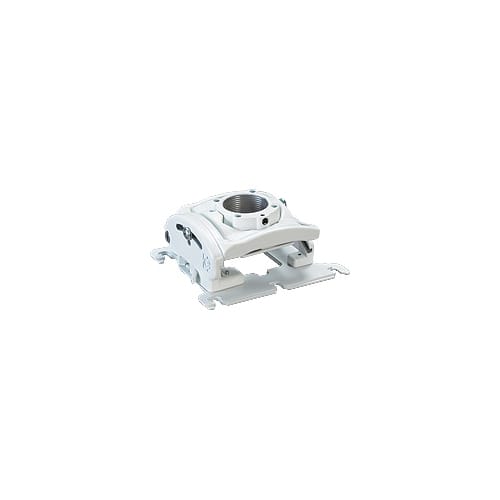

RPM Elite (Mount Only) - RPMA000S
RPMA000S$237.60

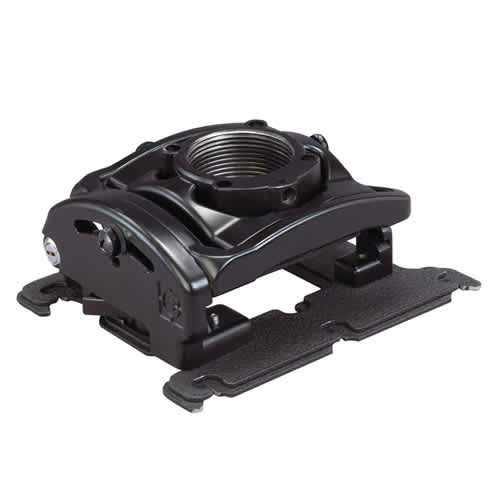

RPM Elite (Mount Only) - RPMA000
RPMA000$237.60

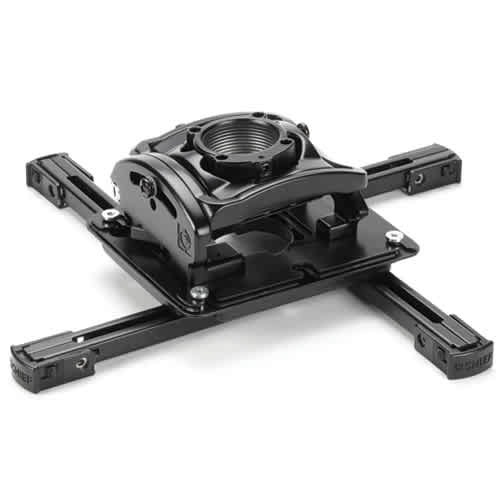

RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBU
RPMBU$303.20
RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCU
RPMCU$303.20
RPA Elite Custom Projector Mount with Keyed Locking (A version)-RPMA345
RPMA345$303.20
RPA Elite Custom Projector Mount with Keyed Locking (A version)-RPMA324
RPMA324$303.20
Questions about this part
Will the LSB101 work with my RPMA mount?
Yes, this bracket is specifically designed for use with the Chief RPMA base series mounts.
How much adjustment does this bracket provide?
The LSB101 allows for a 3" (76 mm) range of shift in either a left/right or front/back direction.
Does this bracket affect the security features of my mount?
No, it maintains the quick-disconnect feature and is compatible with the RPM Elite Series Q-Lock™ Integrated Security.
What is the maximum weight I can hang with the LSB101?
This lateral shift bracket has a rated weight capacity of 50 lbs (22.7 kg).
Which documents are available for submittals?
You can access the LSB101 technical drawing (PDF), CAD drawing (dwg), and the installation manual (PDF) in the resources section.
