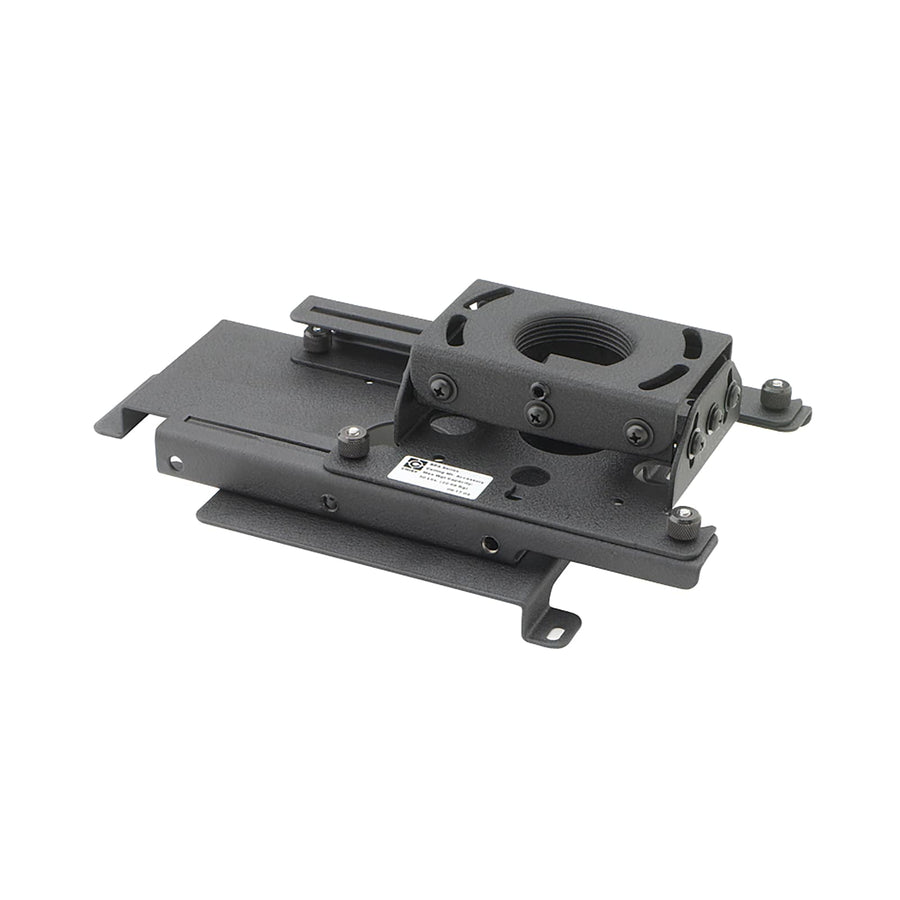

LSB100, Lateral Shift Bracket for LCD/DLP Projector Mounts
Lateral shift bracket providing 3" (76 mm) of left or right adjustment for Chief RPA Series projector mounts
The LSB100 is a lateral shift bracket designed to provide 3" (76 mm) of right or left adjustment to help center a projector lens during installation. This accessory is specifically intended for use with Chief RPA Series mounts. For integrators working with the RPM Elite Series mounts that feature the Q-lock mechanism, the LSB101 should be used instead of this model. This bracket maintains the quick-disconnect functionality of the mount and includes All-Points Security to ensure a stable installation. It supports a weight capacity of 50 lbs (22.7 kg) and is UL Listed for safety. When installed, the bracket adds 0.8" (2 cm) of height to the mounting assembly.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 5.5 in (14 cm) |
| Height | 0.8 in (2 cm) |
| Overall Dimensions | 0.8" x 9.3" x 5.5" (21 x 235 x 140 mm) |
| Shipping Weight | 1.17 lbs (0.5 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 9.3 in (23.6 cm) |
| Accessory Type | Lateral Shift |
| Base Series | LCD/DLP |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872003009 |
| Certifications | UL Listed |
Resources
Questions about this part
Will this bracket work with my RPM Elite Series mount?
No, this LSB100 is for RPA Series mounts; you must use the LSB101 for RPM Elite Series mounts with Q-lock features.
What is the lateral adjustment range for the LSB100?
The bracket provides 3" (76 mm) of lateral shift to the right or left to assist with lens centering.
Is the LSB100 UL listed?
Yes, this lateral shift bracket is UL Listed.
How much weight can the LSB100 support?
The bracket has a weight capacity of 50 lbs (22.7 kg).
Does this bracket affect the quick-disconnect feature?
No, using the LSB100 maintains the quick-disconnect feature of your RPA Series mount.
