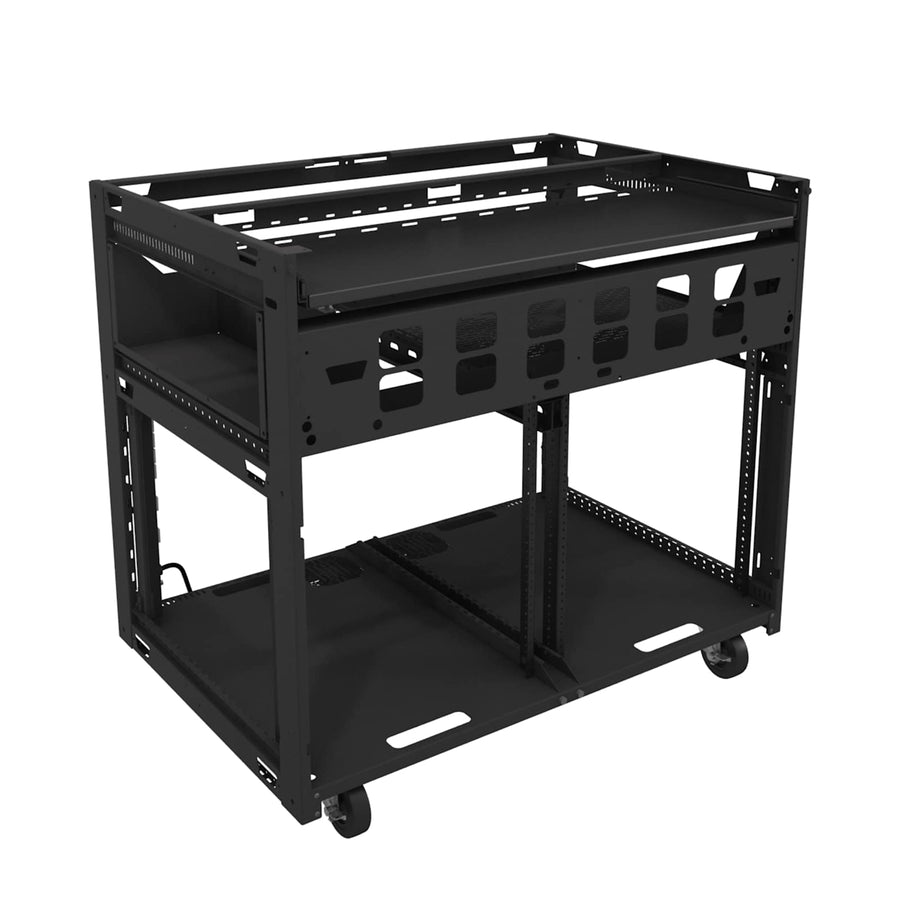

L5 Series Flat Frame 43 Inches Wide, 2 Bays
43-inch wide flat frame lectern with 2 bays, 24 RU capacity, and monitor mounting support
The Middle Atlantic L5-FLATFR-43LDW is a 43-inch wide lectern frame from the L5 Series designed for professional AV integration. This specific model features a flat top and provides 2 bays within a 24 RU capacity structure. Built from steel, the frame is designed to ship quickly as a pre-assembled unit, allowing for faster deployment in lecture halls or collaboration spaces. The open frame architecture includes built-in power provisions and integrated pathways for cooling and cabling. For system integrators, this model supports monitor mounting to accommodate integrated control interfaces. This unit features 10-32 rack rails and is TAA compliant. The physical dimensions of the frame include a width of 41.5 in (105.4 cm), a depth of 28.31 in (71.9 cm), and a usable depth of 25.53 in (64.9 cm). The usable height available within the frame is 21 in (53.3 cm). This L5 Series model is the flat-top version of the series, distinguishing it from models with turret worksurfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 140 |
| Depth | 28.31 in (71.9 cm) |
| Rack Units | 24 RU |
| Shipping Weight | 159 lbs (72.1 kg) |
| Usable Depth | 25.53 in (64.9 cm) |
| Usable Height | 21 in (53.3 cm) |
| Width | 41.5 in (105.4 cm) |
| Available Internationally | No |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| Turret Worksurface | No |
| UPC | 656747304200 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
Questions about this part
What are the dimensions of the L5-FLATFR-43LDW?
The unit has a total width of 41.5 in (105.4 cm), a depth of 28.31 in (71.9 cm), and a usable depth of 25.53 in (64.9 cm).
Can I mount a monitor to this lectern?
Yes, this L5 Series frame is designed with monitor mounting capabilities to support integrated display hardware.
Is this lectern TAA compliant?
Yes, the L5-FLATFR-43LDW is TAA compliant and is manufactured in the USA.
What is the rack capacity of this frame?
The frame provides 24 RU of rack space organized into 2 bays, utilizing 10-32 rack rails.
What accessories are compatible with the L5-FLATFR-43LDW?
Compatible components include Select Series PDUs like the RLNK-215, various Vent Panels such as the VTP-1, and blank rack panels like the WSB1.
