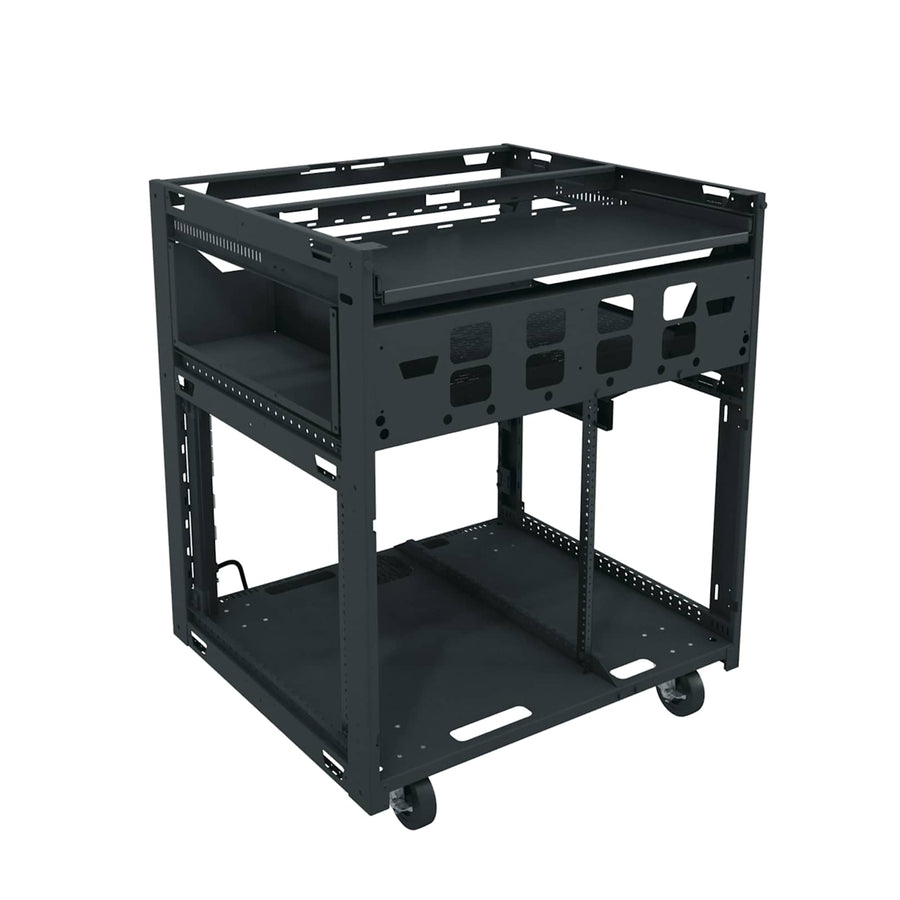

L5 Series Flat Frame 33 Inches Wide, 1.5 Bays
12 RU lectern frame, 31.5 in wide, featuring a flat top design and open frame for easy integration
The Middle Atlantic L5-FLATFR-33LDW is a steel frame lectern from the L5 Lectern Series designed for rapid integration into professional AV installations. This 1.5-bay unit features a 31.5 in (80 cm) width and provides 12 RU of vertical rack space for equipment mounting. Designed with an open frame, it includes built-in power provisions and facilitates necessary cooling and cabling access for complex system setups. The unit features a flat top version rather than a turret worksurface, providing a level mounting area for user interaction or additional hardware. With a usable depth of 25.53 in (64.9 cm) and a usable height of 21 in (53.3 cm), it offers substantial workspace for 10-32 rack rail equipment. This TAA Compliant, USA-made frame is shipped assembled to reduce on-site labor requirements. For expanded capacity, it is compatible with the L5-RRKIT3343 additional rackrail kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 70 |
| Depth | 28.31 in (71.9 cm) |
| Rack Units | 12 RU |
| Shipping Weight | 127 lbs (57.6 kg) |
| Usable Depth | 25.53 in (64.9 cm) |
| Usable Height | 21 in (53.3 cm) |
| Width | 31.5 in (80 cm) |
| Available Internationally | No |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| Turret Worksurface | No |
| UPC | 656747304194 |
| Certifications | TAA |
Resources
You'll need these with it
12 RU L5 Lectern Series Additional Rackrail Kit for 33 Inch and 43 Inch Lecterns
L5-RRKIT3343$77.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
Questions about this part
Will the L5-FLATFR-33LDW fit my existing rack equipment?
Yes, this 12 RU frame utilizes 10-32 rack rails and accommodates standard equipment within a 21 in (53.3 cm) usable height and 25.53 in (64.9 cm) usable depth.
What is the difference between this and other L5 Series lecterns?
This SKU features a flat top rather than a turret worksurface and is part of a series that also includes 24 RU options and varying widths like 23 in and 43 in.
What accessories are needed to complete the installation?
The frame is compatible with Select Series PDUs like the RLNK-215 and various MPR power modules, such as the RLM-15-1CA.
Is this lectern suitable for government contracts?
Yes, this product is TAA Compliant and is manufactured in the USA.
Can I increase the rack space available in this unit?
You can use the L5-RRKIT3343 Additional Rackrail Kit to add capacity to this 33 inch wide model.
