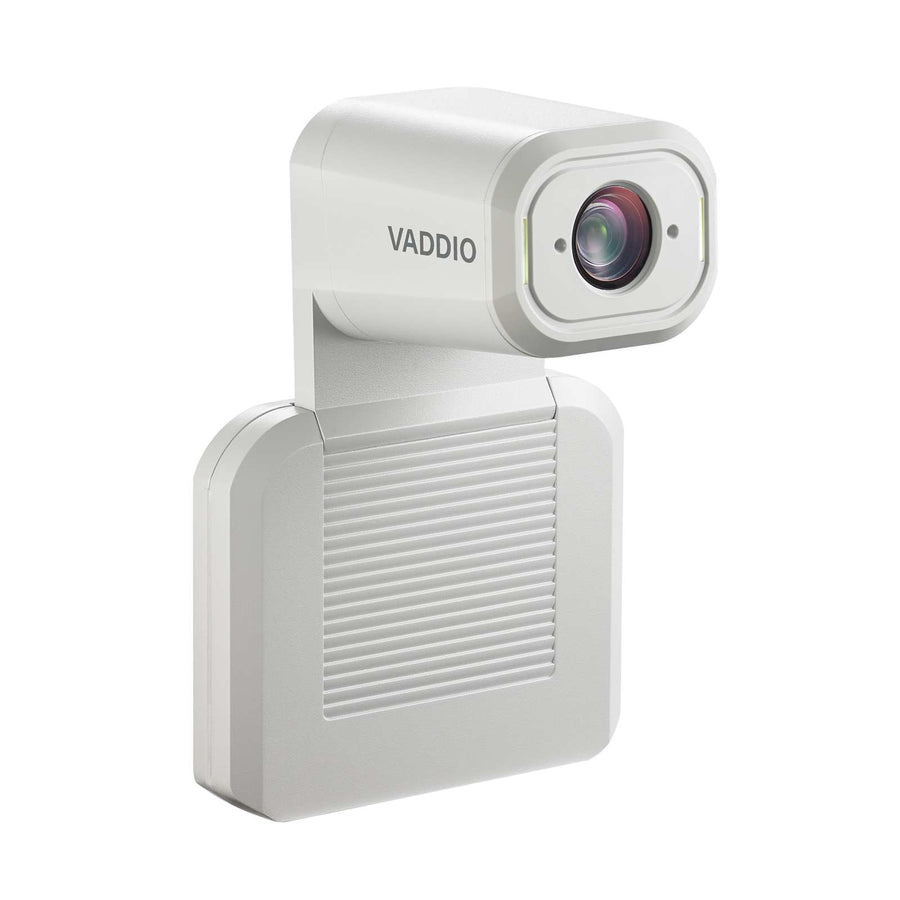

EasyIP 30 ePTZ Camera
White HD ePTZ camera with 30x zoom, IntelliFrame™ auto-framing, and 1 Gb PoE+ connectivity for medium to large rooms
The Vaddio EasyIP 30 ePTZ Camera is a professional-grade, low-profile fixed camera designed to simplify video collaboration and streaming in classrooms and meeting spaces. This white variant delivers high-quality 1080p30 video using a 1/2.5-type Exmor R CMOS sensor. It features advanced IntelliFrame™ technology, which utilizes highly sensitive motion detection and sophisticated algorithms to provide smooth, lifelike auto-framing and presenter tracking without the need for facial recognition. This allows the camera to maintain focus on participants even when wearing masks. Equipped with a 30x total zoom—comprising 20x true optical zoom and 10x IntelliZoom™ Image Processing—the camera captures extreme detail even from across large rooms. It is an ideal solution for unstable lighting environments, such as auditoriums with bright sunlight or shifting shadows. For deployment, the EasyIP 30 ePTZ Camera integrates into the EasyIP Ecosystem via a single 1 Gb PoE+ connection, which provides both power and video output. This eliminates the requirement for USB extensions and facilitates easy integration with an EasyIP Decoder, EasyIP Mixer, or EasyIP Dock for web-based conferencing. Users can manage settings remotely via a built-in web UI or gain manual control using the included RF remote.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.5 in (11.4 cm) |
| Height | 8.38 in (21.3 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.25 lbs (1.9 kg) |
| Shipping Dimensions | 14" x 13" x 13" (355.6 x 330.2 x 330.2 mm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Storage Temperature | 32° to 104°F (0° - 40°C) |
| Width | 6 in (15.2 cm) |
All other specifications 31
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | Fixed |
| Color | White |
| Control Method | Touch ScreenWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Input Ports | Network |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p30 |
| OneLINK Compatibility | No |
| Output Ports | Network |
| Pixels | 8.51 Megapixel |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| Quick-Connect Compatibility | No |
| Signal Type | EasyIP |
| Solution Type | Camera Only |
| Special Features | Auto-Framing |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077507244 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCRoHSTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Vaddio RF Remote Commander
998-2180-000$145.80
1ft (0.3m) Core Series High Speed HDMI® Cable with Ethernet
CG56781$9.99
EasyIP 10 Base Kit with Professional IP PTZ Camera
999-30201-000$4,140.00
EasyIP Switch
999-11208-000$771.30
EasyIP CeilingMIC D Microphone
999-85820-000$847.80
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
EasyIP Ceiling Speaker D
999-86650-000$478.80
Vaddio Device Controller
999-42300-000$855.00
Vaddio Ceiling Speakers
999-85600-000$450.90
CeilingMIC Microphone
999-85100-000$641.70
Questions about this part
What is the field of view for the EasyIP 30 ePTZ Camera?
The camera offers a wide end field of view greater than 70°, specifically 70.2° wide to 3.1° tele end.
How do I control the camera's framing and zoom?
You can manage the camera via a built-in web UI or use a Vaddio RF Remote Commander (SKU 998-2180-000) for manual steering.
What do I need to add to the camera for a complete setup?
To distribute video to endpoints, you can pair it with an EasyIP Decoder (SKU 999-60120-000) or an EasyIP Mixer (SKU 999-60320-000).
Can this camera be mounted in a suspended ceiling?
Yes, it is compatible with the Vaddio Suspended Ceiling Mount (SKU 535-2000-206) or various drop-down mounts.
What power requirements are needed for installation?
The camera is powered via PoE+ over a single network cable, supporting 1 Gb speeds.
