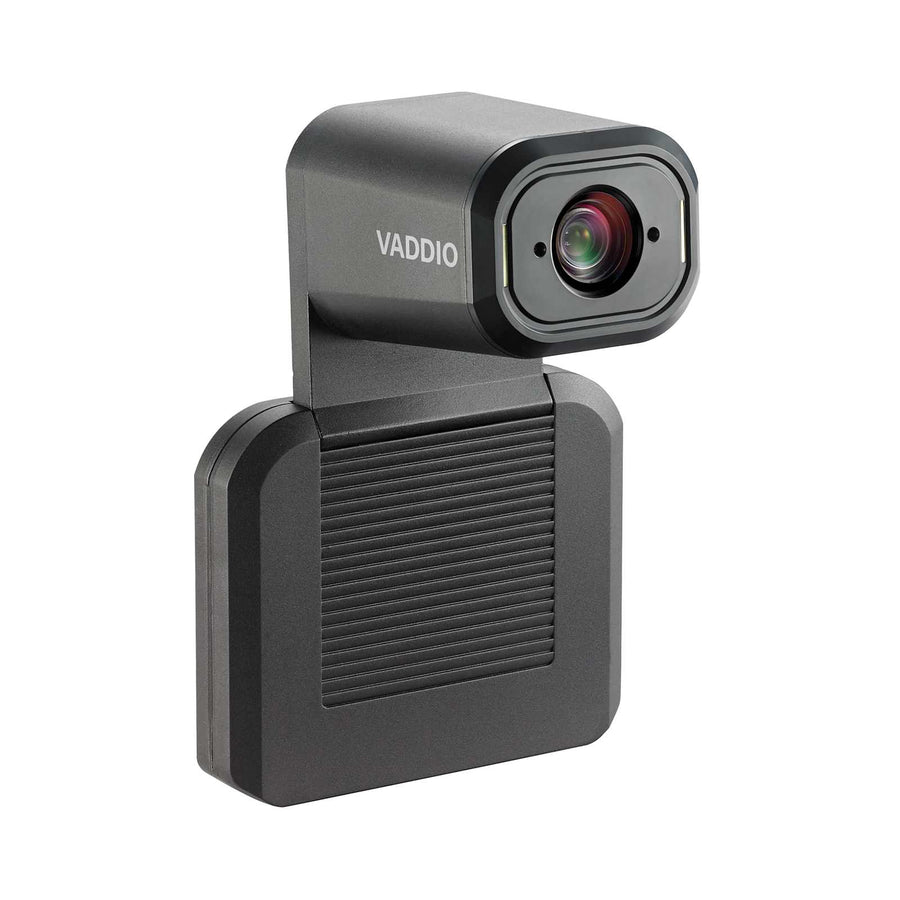

EasyIP 30 ePTZ Camera
ePTZ camera with 30x zoom, 1080p30 resolution, and IntelliFrame auto-framing technology for large and medium rooms
The Vaddio 999-30250-000 EasyIP 30 ePTZ Camera is a low-profile professional camera engineered to simplify video collaboration and streaming in large and medium rooms. This 1080p30 camera utilizes IntelliFrame™ technology to provide smooth, lifelike auto-framing and presenter tracking. Unlike facial recognition systems that can struggle with masks or misidentify background objects, IntelliFrame uses sensitive motion detection and advanced algorithms to keep participants in view. For precise control, users can override IntelliFrame by using the Vaddio RF Remote Commander (998-2180-000) to manually steer the camera. The 999-30250-000 features a high-quality 1/2.5-type Exmor R CMOS sensor, delivering 20x true optical zoom and up to 30x zoom using IntelliZoom™ Image Processing. The camera is designed for easy integration into the EasyIP Ecosystem, allowing audio and HD feeds to be sent to an EasyIP Decoder (999-60250-000), EasyIP Mixer (999-60320-000), or EasyIP Dock via a single 1 Gb PoE+ connection. This network-based approach eliminates the need for complex USB extensions and simplifies cabling in professional installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.5 in (11.4 cm) |
| Height | 8.38 in (21.3 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.25 lbs (1.9 kg) |
| Shipping Dimensions | 14" x 13" x 13" (355.6 x 330.2 x 330.2 mm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Storage Temperature | 32° to 104°F (0° - 40°C) |
| Width | 6 in (15.2 cm) |
All other specifications 31
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | Fixed |
| Color | Black |
| Control Method | Touch ScreenWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 3.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Input Ports | Network |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p30 |
| OneLINK Compatibility | No |
| Output Ports | Network |
| Pixels | 8.51 Megapixel |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| Quick-Connect Compatibility | No |
| Signal Type | EasyIP |
| Solution Type | Camera Only |
| Special Features | Auto-Framing |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077507237 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CEFCCRoHSTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
CeilingMIC Microphone
999-85100-000$641.70
Vaddio RF Remote Commander
998-2180-000$145.80
1ft (0.3m) Core Series High Speed HDMI® Cable with Ethernet
CG56781$9.99
EasyIP 10 Base Kit with Professional IP PTZ Camera
999-30201-000$4,140.00
EasyIP Switch
999-11208-000$771.30
EasyIP CeilingMIC D Microphone
999-85820-000$847.80
EasyIP Ceiling Speaker D
999-86650-000$478.80
Vaddio Device Controller
999-42300-000$855.00
Vaddio Ceiling Speakers
999-85600-000$450.90
Questions about this part
How does the auto-framing work on the Vaddio 999-30250-000?
The camera uses IntelliFrame™ technology, which leverages motion detection and advanced algorithms to track presenters without the errors common in facial recognition systems.
What is required to power and connect the EasyIP 30 ePTZ camera?
The camera is powered via PoE+ and uses a single Network cable for both power and video output, simplifying integration with 1 Gb PoE+ switches.
Can I manually control the camera if I don't want to use auto-framing?
Yes, you can override the IntelliFrame settings at any time by using a Vaddio RF Remote Commander (998-2180-000) to manually steer the lens.
What is the difference between the optical and total zoom on this model?
The camera provides 20x true optical zoom and achieves up to 30x zoom when using IntelliZoom™ Image Processing.
What accessories are needed to complete an EasyIP system?
To build out a full ecosystem, you might include an EasyIP Decoder (999-60250-000) or an EasyIP Mixer (999-60320-000) to handle video distribution.
