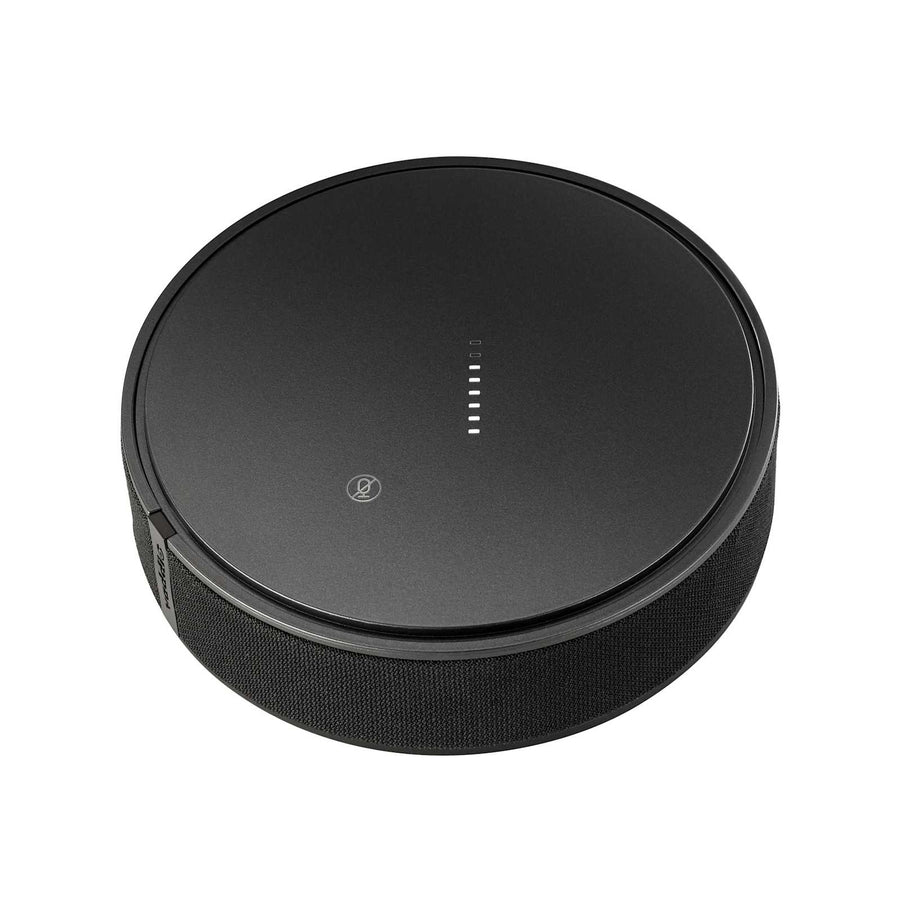

EasyIP TableMIC D Microphone
Dante networked table microphone with 360-degree coverage, integrated DSP, and capacitive touch mute control
The Vaddio EasyIP TableMIC D Microphone delivers professional-quality audio for PC-based conferencing systems using Dante networked audio signals. This microphone features three unidirectional cardioid condenser elements that provide 360-degree coverage, making it an efficient solution for small meeting rooms. To ensure high-fidelity audio, each element includes integrated Digital Signal Processing (DSP) for automatic gain control (AGC), equalization, adaptive noise filtering, and echo cancellation. When paired with a companion product like the Vaddio EasyIP Mixer or the Vaddio AV Bridge 2x1, the system provides an AEC reference from the far end to maintain crystal-clear conversation quality. Constructed with a solid metal base and engineered feet, the TableMIC D is designed to minimize distracting table vibration noise. The top of the unit features an acoustical fabric wrap and a capacitive touch control surface for silent mute operation, alongside a built-in VU meter. For installation, a single standard Cat-5 cable handles power, control, and audio, supporting cable runs up to 328 feet (100 meters) to a PoE network switch. This TAA-compliant device is ideal for integrators seeking to simplify room audio through Audinate's Dante ecosystem.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Height | 1.43 in (3.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 12" x 10" x 5" (304.8 x 254 x 127 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Width | 5 in (12.7 cm) |
| Audio Type | Microphone |
| Color | Black |
| Compatible With | Vaddio |
All other specifications 7
| Manufacturer | Vaddio |
| Signal Type | Dante Audio |
| Special Features | AEC |
| TAA Compliant | Yes |
| UPC | 840077507060 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
CeilingMIC Microphone
999-85100-000$641.70
AV Bridge MATRIX PRO
999-8230-000$5,975.10
EasyUSB MicPOD I/O
999-8535-000$801.90
EasyUSB Mixer/Amp
999-8530-000$1,071.90
HuddleSHOT All-in-One Conferencing Camera
999-50707-000Discontinued
Questions about this part
How many EasyIP TableMIC D microphones can I use in a single room?
You can pair up to four EasyIP TableMIC D microphones with a Vaddio EasyIP Mixer or an AV Bridge 2x1 to provide coverage for larger meeting spaces.
What do I need to buy to complete the audio installation?
This microphone requires a PoE network switch and a standard Cat-5 cable. For advanced management, you can use Audinate’s Dante Controller application.
Does this microphone require a dedicated audio interface?
The EasyIP TableMIC D uses Dante networked audio signals. For full conferencing integration, it is often paired with the Vaddio AV Bridge 2x1 or the EasyIP Mixer.
What is the maximum cable length for the connection?
A single Cat-5 cable can be used for power, control, and audio for distances up to 328 feet (100 meters) from the PoE network switch.
What documentation is available for submittals and installation?
Full technical details can be found in the EasyIP TableMIC D Data Sheet, and installers can refer to the Quick-Start Guide or the Complete Manual.
