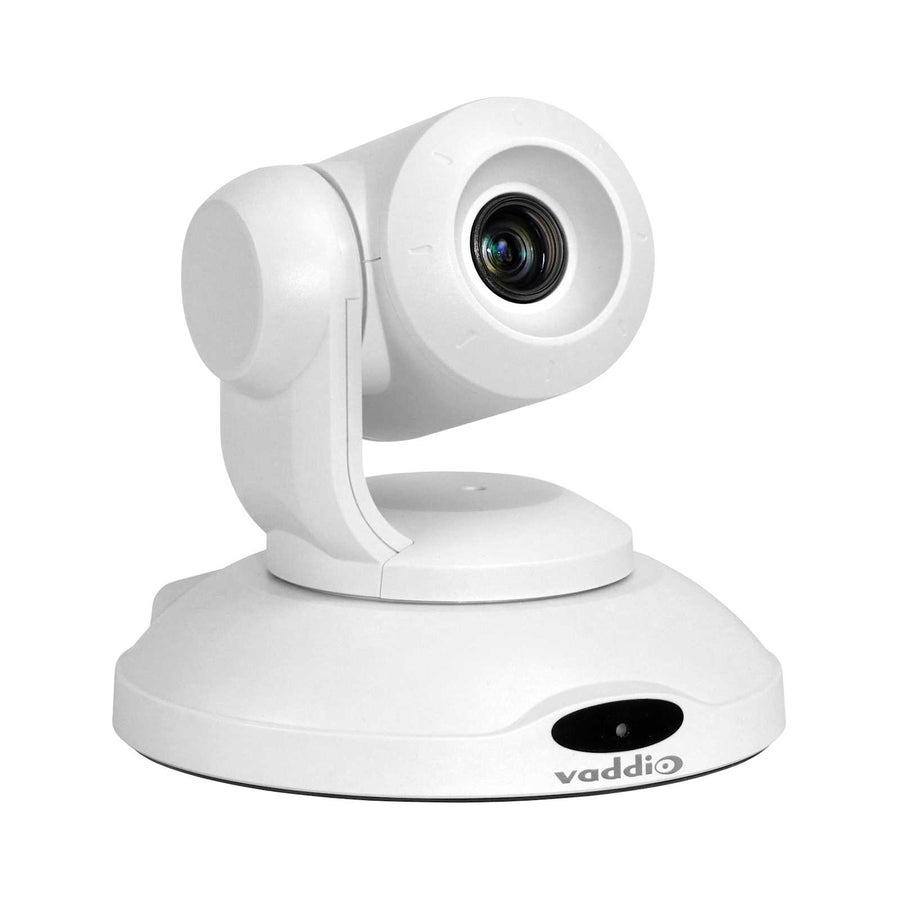

EasyIP 10 Camera
White PTZ camera with 10x optical zoom, 67-degree wide field of view, and 1080p/60 resolution via PoE+
The Vaddio 999-30200-000W EasyIP 10 Camera is a specialized PTZ solution built for integration into the EasyIP Ecosystem, providing an AV-over-IP workflow for videoconferencing in small to medium room environments. This camera delivers 1080p/60 resolution feeds via a single 1 Gb PoE+ connection, which eliminates the need for complex USB extension cabling in your installation. The 1-2/8 Exmor CMOS image sensor provides high-definition imaging and fine detail, while the 10x optical zoom and 67-degree wide field of view offer significant flexibility for different meeting space layouts. For advanced control, the camera features stepper motors for pan and tilt, supporting a pan range of ±165° and a tilt range from +90° to -30°. It supports up to 16 custom home positions and 16 preset positions. The device can be managed via a web-based interface from an EasyIP Decoder, and it is TAA compliant, making it suitable for government and corporate deployments. Users can choose between auto, manual, or one-push white balance, as well as auto or manual focus and gain settings to manage lighting conditions from 0.4 Lux (F1.6) minimum illumination.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 6.1 in (15.5 cm) |
| Camera Type | PTZ |
All other specifications 29
| Color | White |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | EasyIP |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077505950 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30

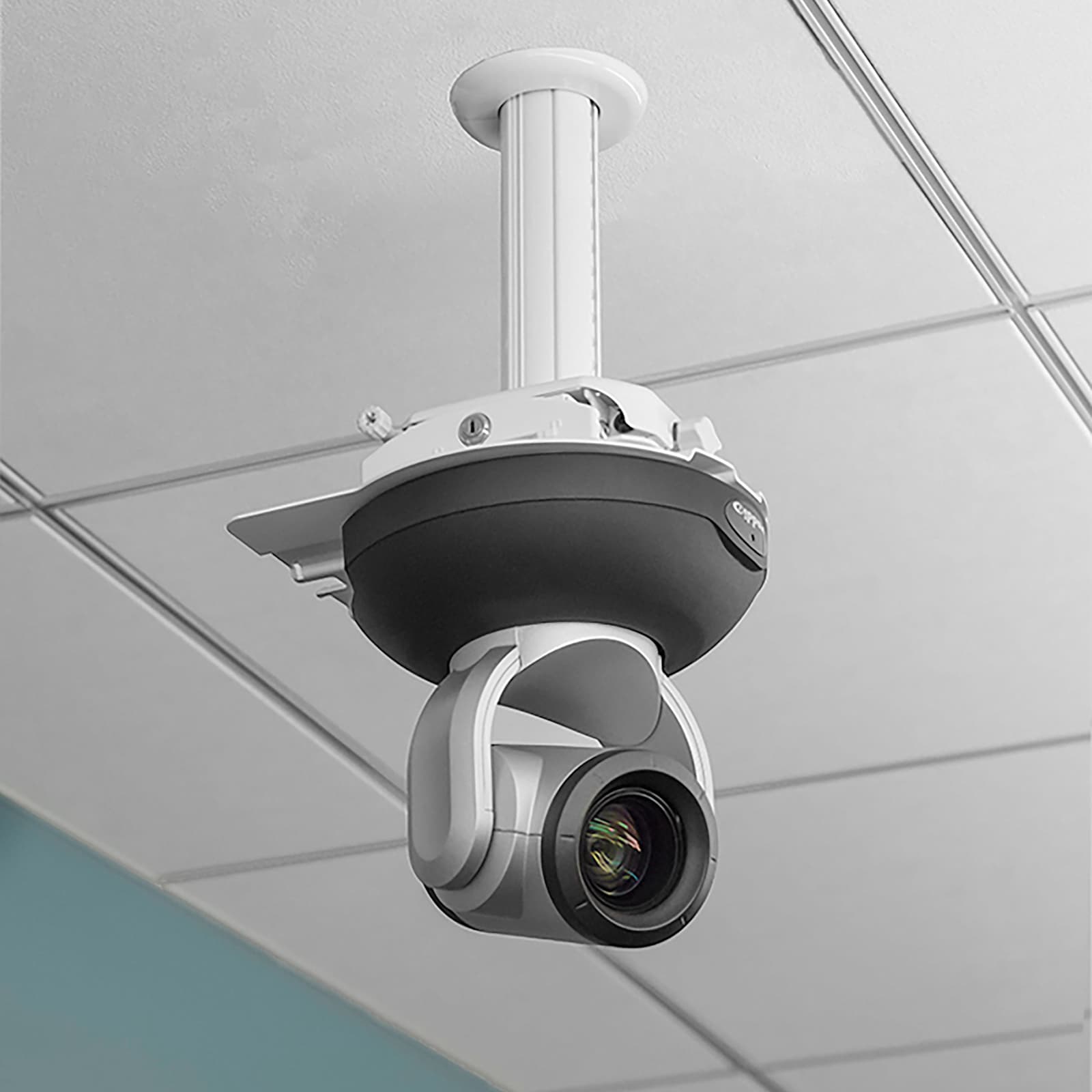

QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
EasyIP Decoder
999-60210-000$900.90
EasyIP Mixer
999-60320-000$2,361.60
EasyIP Switch
999-11208-000$771.30

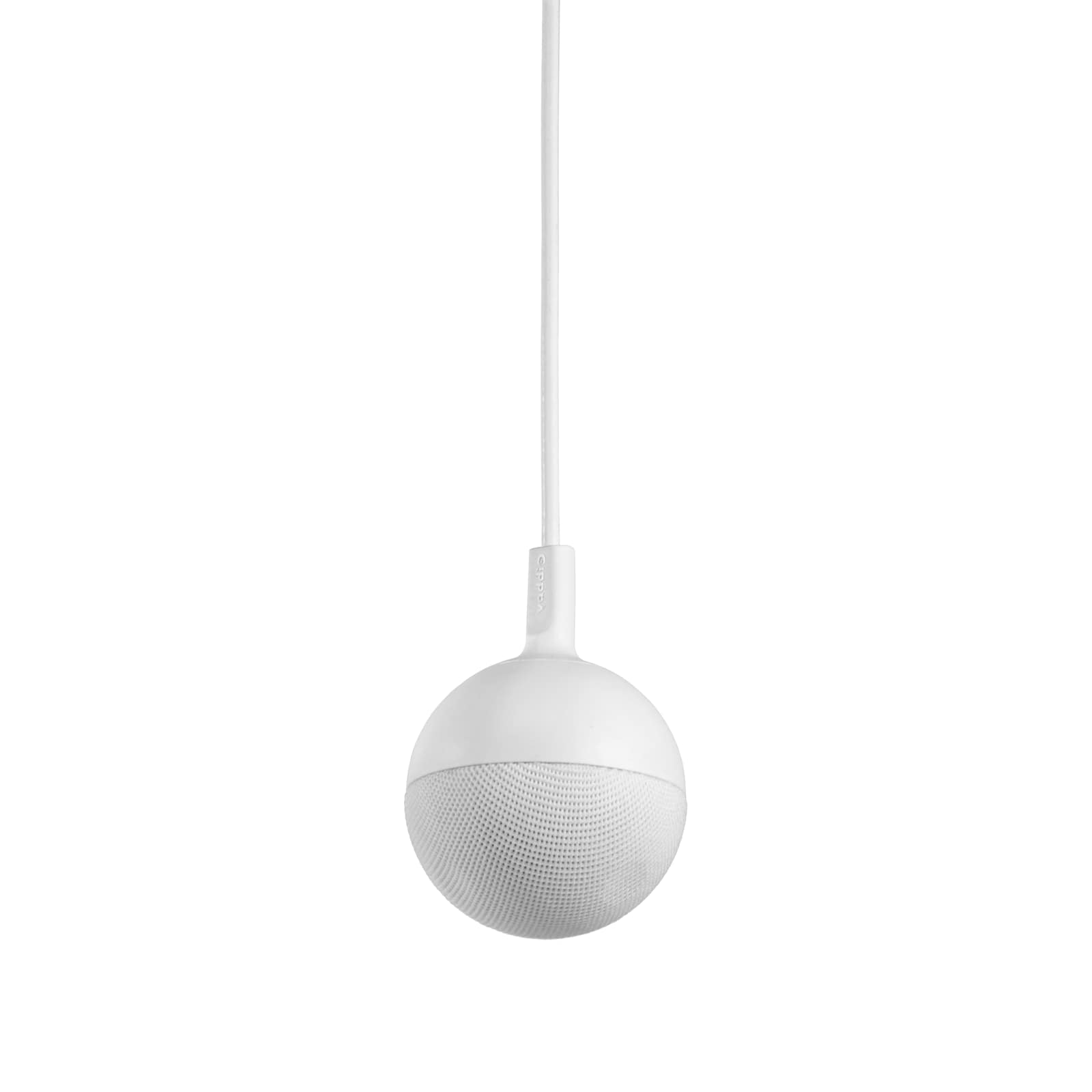

EasyIP CeilingMIC D Microphone
999-85810-000$847.80

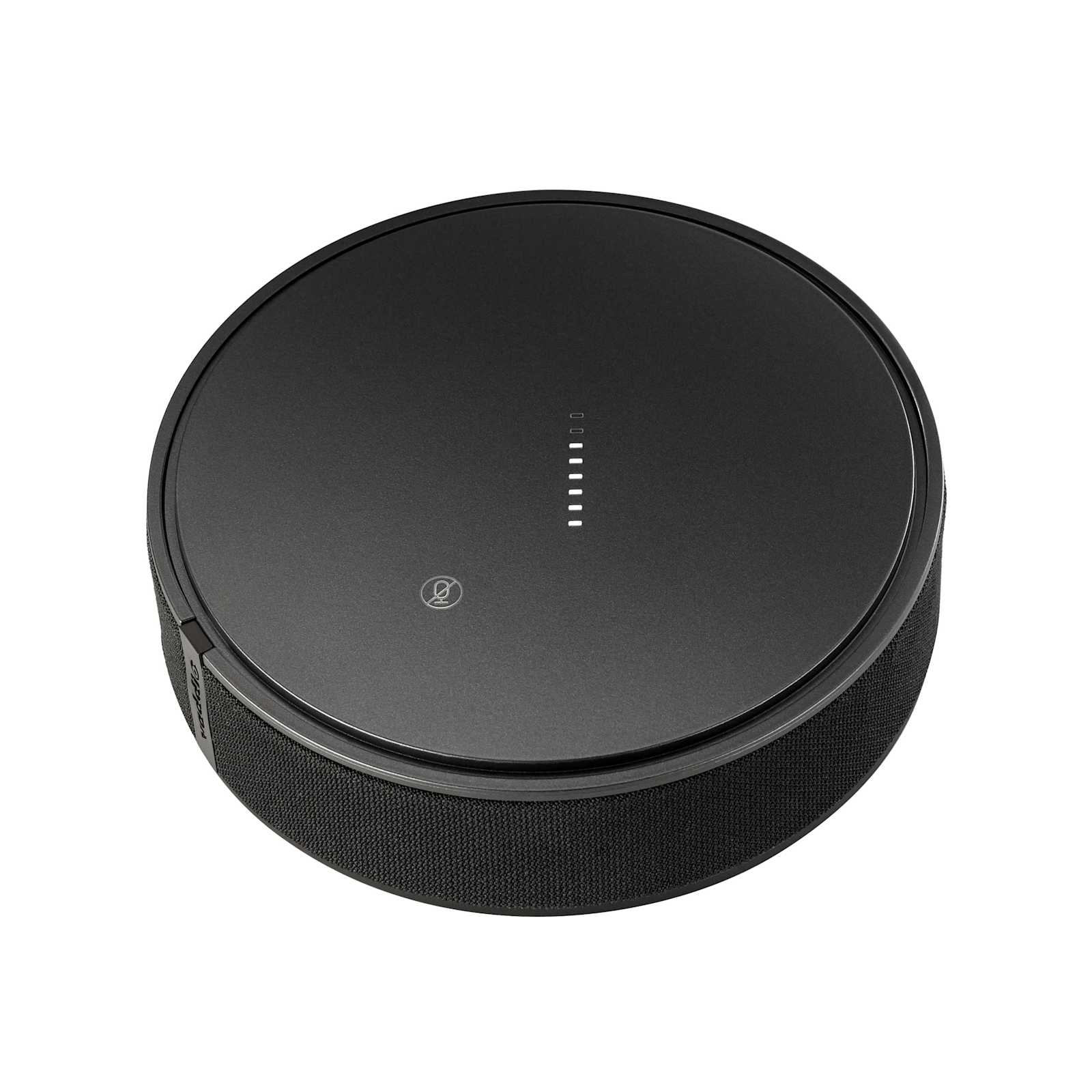

EasyIP TableMIC D Microphone
999-85300-000$847.80
Fusion® Side Camera Shelf
FCA850$357.60
EasyIP 10 Base Kit with Professional IP PTZ Camera
999-30201-000$4,140.00
Questions about this part
Will the Vaddio 999-30200-000W work with my existing EasyIP setup?
Yes, this camera is an integral part of the EasyIP Ecosystem. It can send signals to an EasyIP Decoder, EasyIP Mixer, EasyIP Dock, or an EasyIP Tx/Rx for HDMI output.
What do I need to provide for power and connectivity?
The camera requires a 1 Gb PoE+ power supply. A single PoE+ connection handles both power and the video output for the system.
Is the Vaddio EasyIP 10 Camera suitable for government projects?
Yes, this SKU is TAA compliant and is UL listed, meeting requirements for many corporate and government environments.
What are the control options for this PTZ camera?
The camera can be controlled through an intuitive web-based interface from an EasyIP Decoder or via the included Vaddio IR Remote Commander.
How do I mount this camera in a professional installation?
While this SKU is the camera only, it is compatible with several mounting options including the 535-2000-240 Thin Profile Wall Mount or 535-2000-206 Suspended Ceiling Mount.
