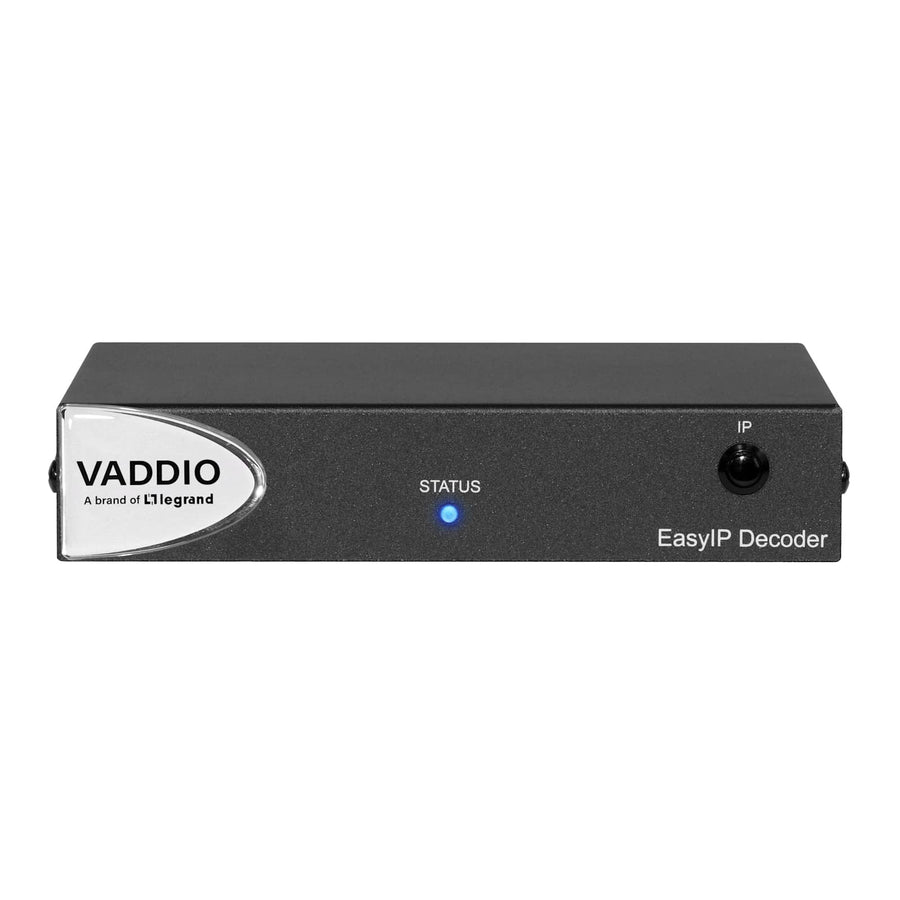

EasyIP Decoder
AV-over-IP decoder providing USB 3.0 video and audio streams up to 1080p/60 for conferencing systems
The Vaddio 999-60210-000 EasyIP Decoder serves as a central component of the EasyIP Ecosystem, an AV-over-IP solution optimized for professional videoconferencing. This decoder manages and switches camera feeds, delivering a high-quality USB 3.0 stream of video and audio to a connected PC or BYOD system. This allows users to utilize web-based conferencing platforms with professional-grade hardware. The device supports up to four EasyIP cameras and can integrate up to two Vaddio EasyMIC microphones, such as the TableMIC or CeilingMIC models. Video is transported over the network via EasyIP technology, and the unit supports remote UVC controls for camera management. For power efficiency, the unit is PoE+ powered. This TAA-compliant device provides 1080p/60 streams via the USB 3.0 Type B output. For system integration, the unit features EZMic and Network input ports and is SpeakerVIEW compatible.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.4 in (16.3 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.5 lbs (2 kg) |
| Shipping Dimensions | 18" x 11" x 5" (457.2 x 279.4 x 127 mm) |
| Shipping Weight | 4.5 lbs (2 kg) |
| Width | 8.38 in (21.3 cm) |
| Color | Black |
All other specifications 9
| Compatible With | Vaddio |
| Input Ports | EZMicNetwork |
| Manufacturer | Vaddio |
| Output Ports | AudioUSB 3.0 Type B |
| Power Type | PoE+ |
| TAA Compliant | Yes |
| UPC | 840077505752 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
TableMIC Microphone
999-85000-000$570.60

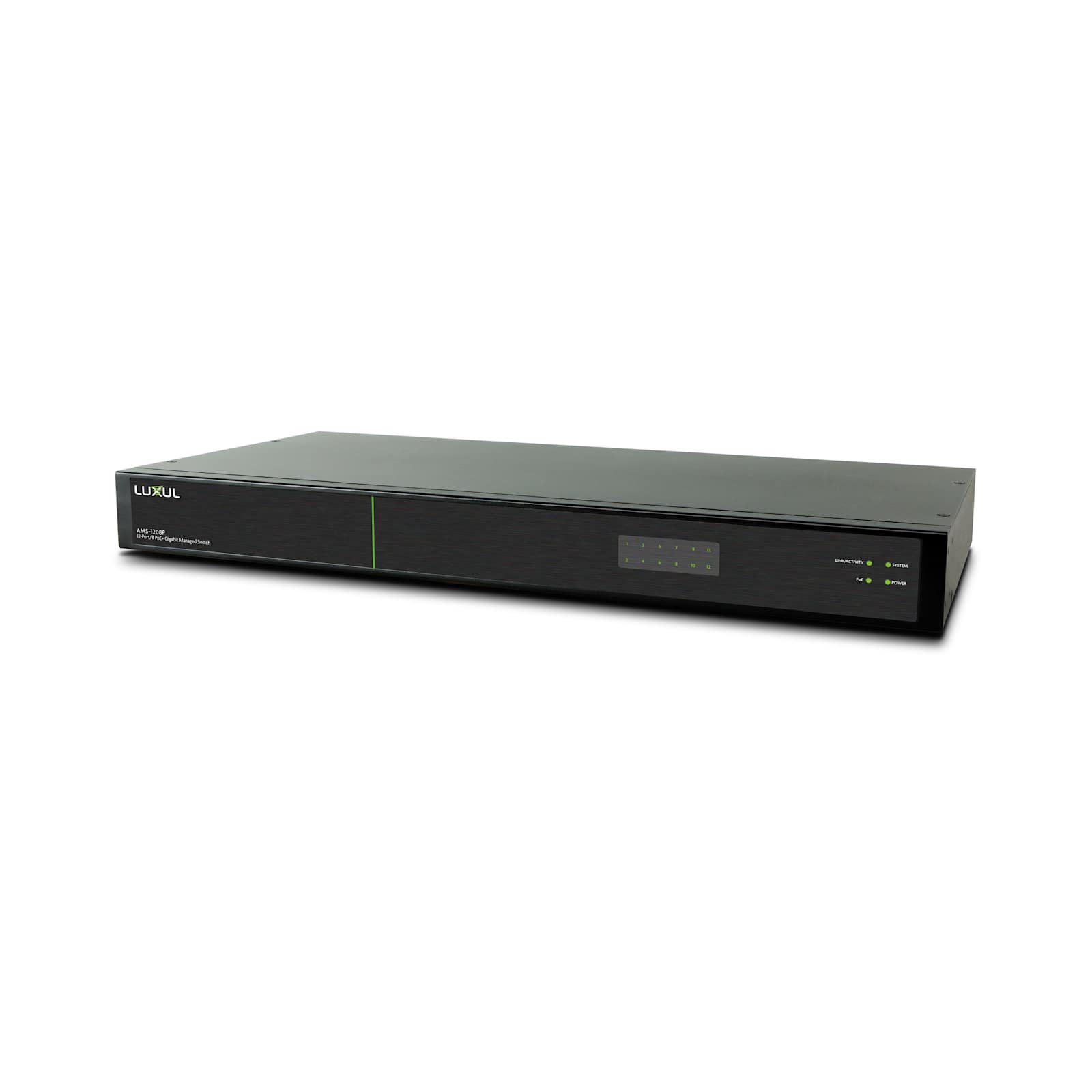

8 PoE+ | 2 RJ45 | 2 SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-R$657.00
0.5ft (0.15m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28874$12.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
USB 3.0 Type A to Type B Active Cable - 20m
440-1005-023$611.10

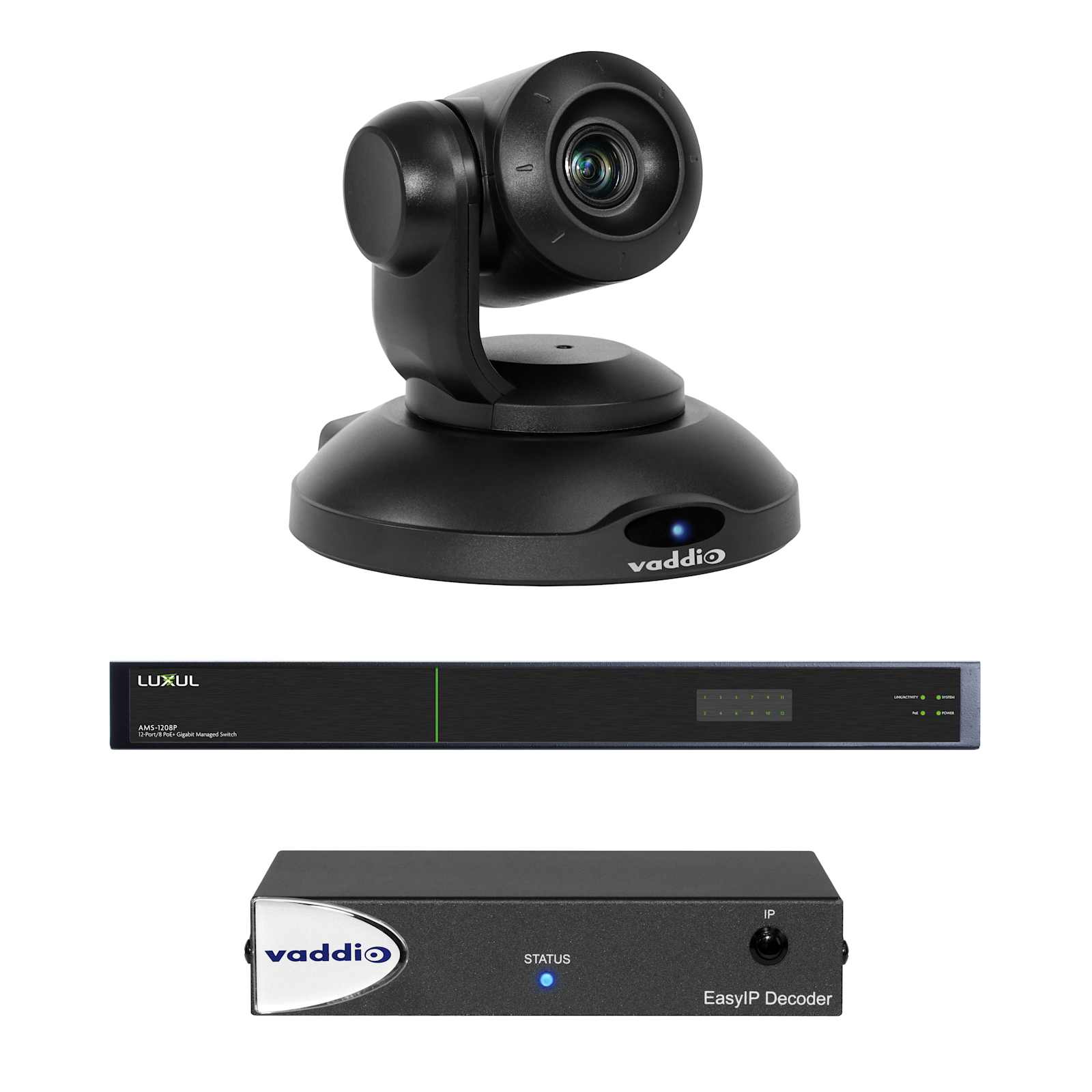

EasyIP 10 Base Kit with Professional IP PTZ Camera
999-30201-000$4,140.00
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
EasyIP 10 Camera
999-30200-000$3,042.00
EasyIP Switch
999-11208-000$771.30
USB 3.0 Type A to Type B Active Cable - 30m
440-1005-025$854.10
USB 3.0 Type A to Type B Active Cable - 8m
440-1005-008$230.40
Questions about this part
Will the 999-60210-000 work with my Vaddio microphones?
Yes, the decoder supports up to two Vaddio EasyMIC microphones, including the TableMIC (999-85000-000) and CeilingMIC (999-85100-000) models.
How many cameras can I connect to the EasyIP Decoder?
The EasyIP Decoder can discover and pair with up to four EasyIP cameras for your conferencing space.
What type of power does this decoder require?
The unit is powered via PoE+ over the network, eliminating the need for a separate external power supply.
What is the maximum video resolution supported?
The device provides a USB 3.0 Type B output that supports video streams up to 1080p/60.
What cables are included with the 999-60210-000?
This package includes one 3 ft (0.91 m) Cat-5e cable and one 6 ft (1.8 m) USB 3.0 cable.
