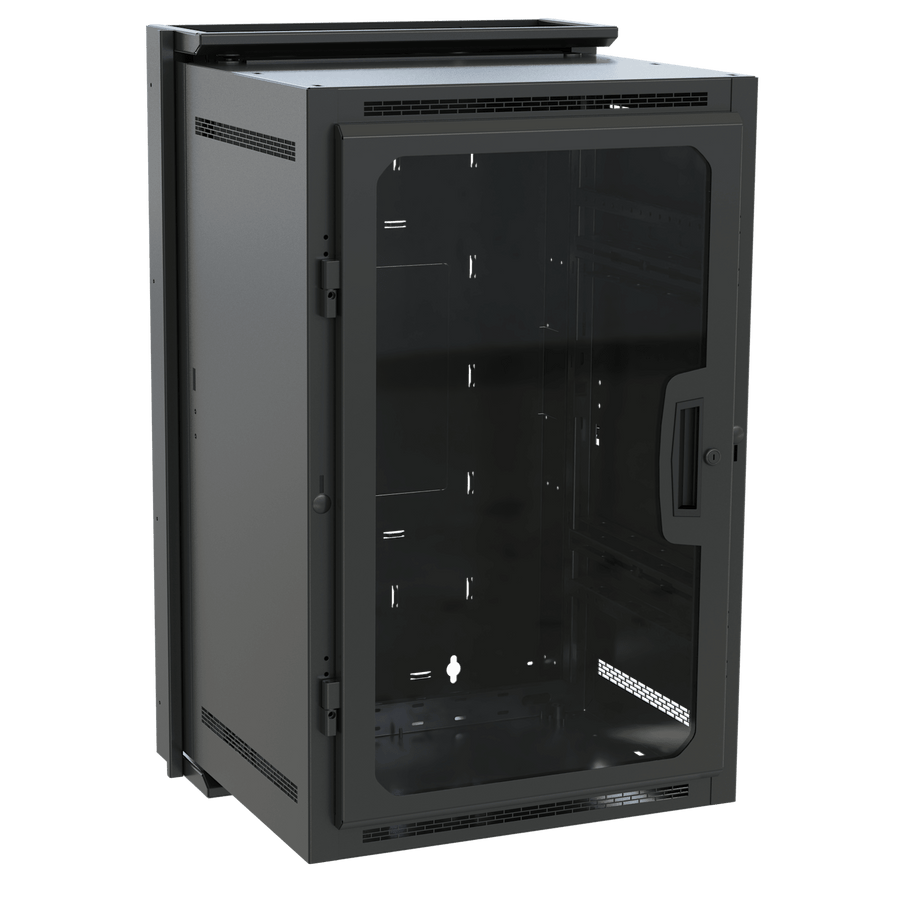

DWR Series Pivoting Wall Rack - DWR-18-17PD
18RU pivoting wall rack with 17" depth, plexi door, and seismic rating for professional AV installations
The Middle Atlantic DWR-18-17PD is an 18RU pivoting wall rack designed to maximize mounting capacity and simplify field installations. This 17 in (43.2 cm) deep unit features a reversible center section that can be secured with either a key or a padlock, providing customized security for sensitive equipment. For installers working in tight spaces, the center section can be serviced from the front, and an optional minimum-clearance latch allows for side-by-side or interior corner mounting to conserve room. This steel rack is constructed with robust welded seams and is seismic rated with a 155 lbs (70.3 kg) seismic load capacity when used with the DWRSR-ZL latch. The front includes a factory-installed plexi door, allowing for visual inspection of active or passive cooling systems. This TAA compliant rack is built with Forward Rackrail™ compatibility, allowing for a Tool-Free Quick-Mount™ system that enables one-person installation of the center section to the backpan on-site. The design also accommodates optional PDT or PD Slim PDUs in the center section rear channel to optimize usable depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 38.56 in (97.9 cm) |
| Product Weight | 58.5 lbs (26.5 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 95 lbs (43.1 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 31.5 in (80 cm) |
All other specifications 16
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Door Type | Plexi |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747105241 |
| Certifications | CSA StandardTAA |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
You'll need these with it
138 CFM Fan Kit for SR and DWR Racks
DWRSR-138FT-K-EU$342.90
190 CFM Fan Kit for DWR or SR Rack, 17 or 22 Inches Deep
DWRSR-4-FK$262.80
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
13 RU Lace Strip 4.75 Inch Wide with Tie Posts - 6 Pieces
LACE-13-OWP$207.90
Forward C Style Ring Cable Management - 12 Pieces
FWD-C-RING-12$161.10
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
PDX-620C$443.70
NEXSYS™ 6 Outlet, 15 Amp Compact Power with Series Surge Protection
PDX-615C-SP$666.00
NEXSYS™ 6 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-615C$403.20
NEXSYS™ 2 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-220C-SP$484.20
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
Questions about this part
Will the DWR-18-17PD fit my equipment depth?
This rack has a total depth of 17 in (43.2 cm) and provides a usable depth of 15 in (38.1 cm) for mounted equipment.
Is the DWR-18-17PD seismic rated?
Yes, this rack is seismic rated with a seismic load capacity of 155 lbs (70.3 kg) when used with the DWRSR-ZL latch.
What accessories are compatible with the DWR-18-17PD?
The rack supports various accessories, including NEXSYS™ PDX series power with surge protection and DWRSR fan kits like the DWRSR-4-FK.
How can I increase the security of the center section?
The center section swing is reversible and can be secured using either a key-lock or a padlock for added security.
How is the installation of the center section performed?
It features a Tool-Free Quick-Mount™ system, which allows a single person to mount the center section to the backpan during installation.
