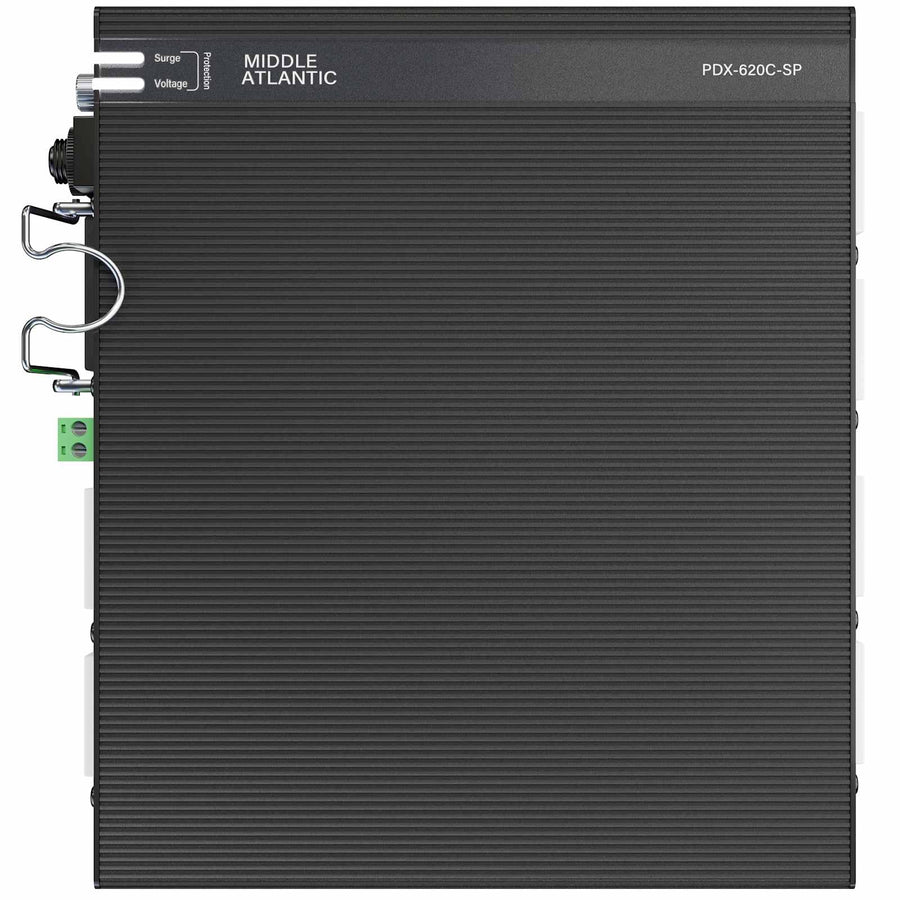

NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
Compact 20A PDU with 6 NEMA 5-20R outlets, featuring patented series surge protection for tight spaces
The Middle Atlantic PDX-620C-SP is a NEXSYS Compact Power PDU designed specifically for space-constrained environments such as digital signage installations and behind-the-display applications. This 0 RU device provides 20 Amp of power through 6 NEMA 5-20R receptacles. It features a 2 ft (0.6 m) cord with a NEMA 5-20P plug. For advanced equipment protection, this unit utilizes patented non-degrading series surge protection technology. This MOV-free design protects sensitive electronics without contaminating the system ground. The PDX-620C-SP includes a dry contact port for selectable on/off voltage protection; in the event of over or under-voltage, the PDU automatically disconnects the outlets and restores power once voltage returns to the acceptable range. For installation flexibility, the unit includes two mounting options: a clamp and L-brackets, both of which can be attached to a Lever Lock™ plate for tool-free mounting inside racks, kiosks, or in-wall boxes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 20 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 7 in (17.8 cm) |
| Height | 1.74 in (4.4 cm) |
| Rack Units | 0 RU |
| Shipping Weight | 6.02 lbs (2.7 kg) |
All other specifications 12
| Width | 8.15 in (20.7 cm) |
| Isolated Ground | No |
| Outlet Count | 6 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Series Protection |
| TAA Compliant | No |
| UPC | 656747396496 |
| Certifications | UL Listed |
| Patents | www.legrandav.com/patents |
| Warranty | 12 Years |
Resources
Questions about this part
Will the PDX-620C-SP fit in a tight kiosk or behind a display?
Yes, this is a compact 0 RU unit with a 7 in (17.8 cm) depth, designed specifically for 'behind-the-display' and kiosk applications.
What is the difference between this and the standard NEXSYS PDUs?
The PDX-620C-SP is part of the Compact Power Series, offering a smaller footprint for mounting inside in-wall boxes or tight spaces where full-width rack PDUs won't fit.
How does the voltage protection work on the PDX-620C-SP?
Using the dry contact port, the PDU can automatically disconnect power to outlets during over or under-voltage events and automatically restores it once voltage stabilizes.
Can I plug standard wall warts into these outlets?
Yes, the outlets are oriented to prevent blocked outlets, allowing you to use all 6 NEMA 5-20R receptacles even with bulky DC transformers.
What do I need to mount this in a rack?
The PDX-620C-SP includes a clamp and L-brackets that can be attached to a Lever Lock™ plate for tool-free mounting in various enclosures.
