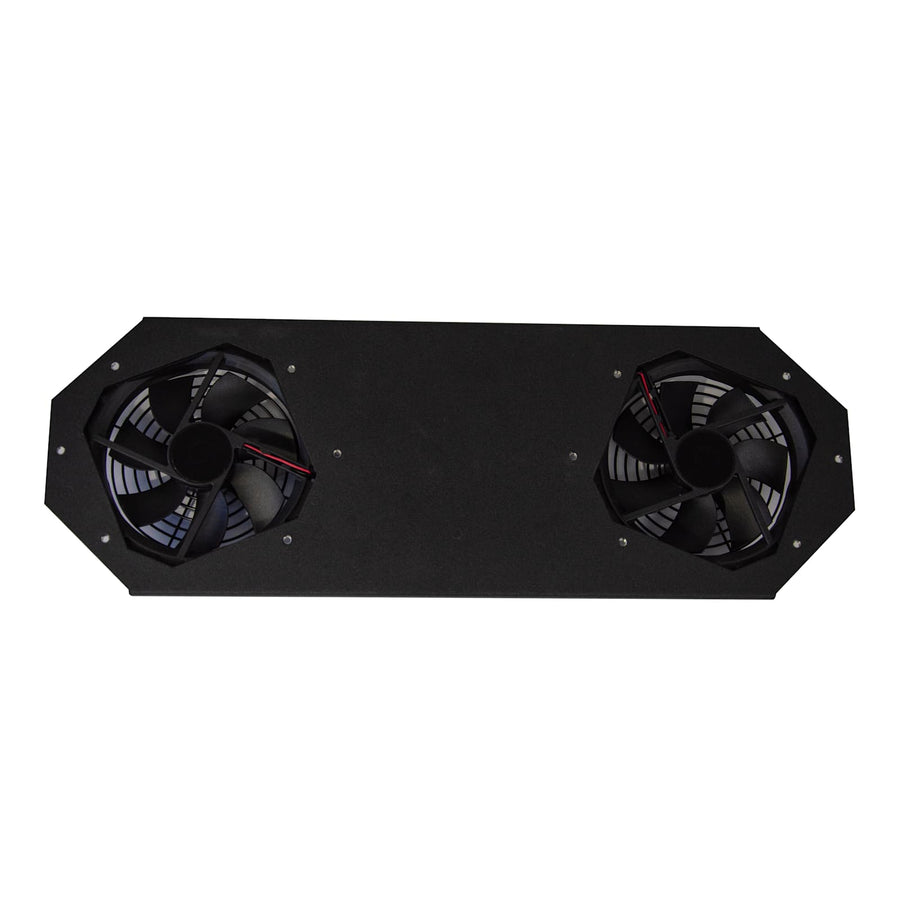

138 CFM Fan Kit for SR and DWR Racks
Active fan kit for DWR or SR series racks, delivering 138 CFM using 4.5" fans with EU power compatibility
The Middle Atlantic DWRSR-138FT-K-EU is an active cooling solution specifically designed for the DWR and SR series racks. This kit is engineered for use within the European Union, providing a 12V DC power supply that includes the necessary plugs for EU regions. It is compatible with all DWR and SR racks and is versatile enough to fit both 114mm (4.5") and 152mm (6") knockouts. The kit includes two 114mm (4.5") fans that generate a combined 138 CFM of airflow to manage heat within the enclosure. To ensure proper installation and optimized airflow, the package provides two 4.5" fan guards, two 6" fan guards, and the required vent blockers to manage air movement. This kit is CE and TAA compliant, ensuring it meets specific regulatory and trade standards for international deployments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 138 |
| Depth | 2 in (5.1 cm) |
| Fan Size | 4.5 in (11.4 cm) |
| Height | 7 in (17.8 cm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 9
| Available Internationally | Yes (EU Only) |
| Base Series | DWR or SR |
| Component Type | Active |
| Fan Controller Included | No |
| Manufacturer | Middle Atlantic |
| Plug Type | EUNEMASAAUK |
| Power Type | DC |
| UPC | 656747397301 |
| Certifications | CE |
Resources
Questions about this part
Will the DWRSR-138FT-K-EU fit my Middle Atlantic rack?
This fan kit is compatible with all DWR and SR series racks. It is designed to fit both 114mm (4.5") and 152mm (6") knockouts.
What is the total airflow provided by this kit?
The kit features two 114mm (4.5") fans that deliver a total of 138 CFM of airflow.
Does this kit include a fan controller?
No, this kit does not include a fan controller. It is an active component type providing 12V DC power.
What power requirements are needed for this EU version?
This specific SKU includes a 12V DC power supply equipped with the necessary plugs for the European Union (EU).
What documentation is available for installation?
You can refer to the DWR and SR Series EU Fan Tops Instruction Sheet PDF for installation guidance.
