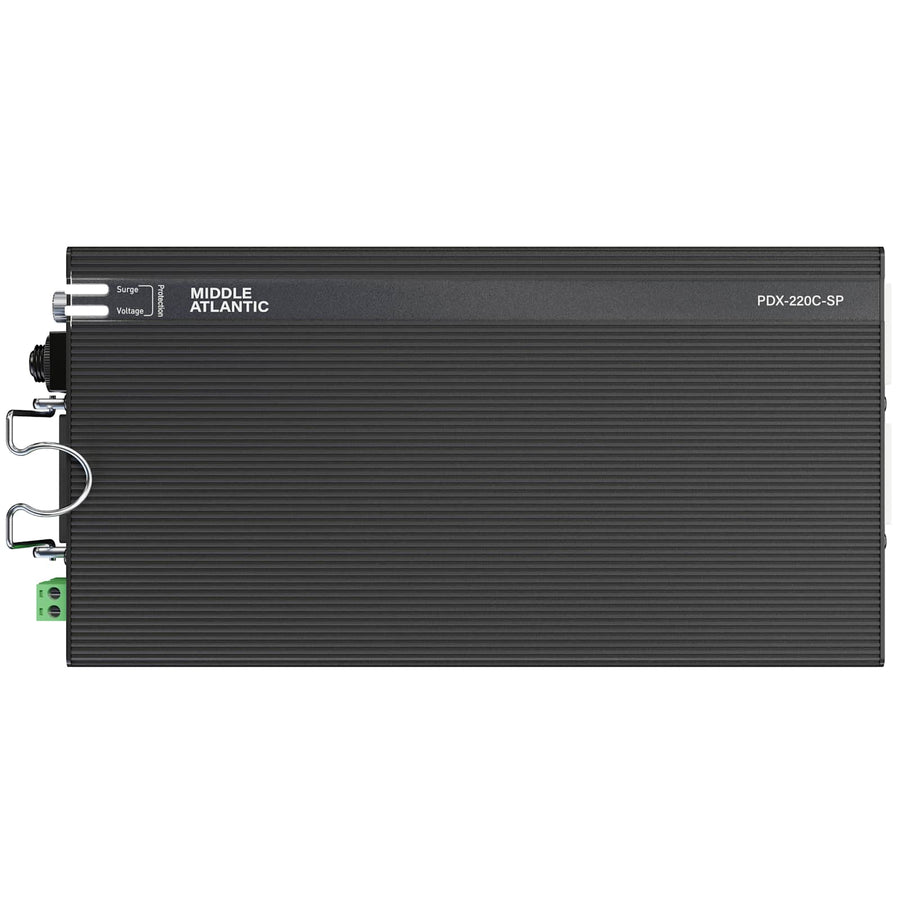

NEXSYS™ 2 Outlet, 20 Amp Compact Power with Series Surge Protection
Compact 20 Amp power strip with 2 NEMA 5-20R outlets and series surge protection for space-constrained installs
The PDX-220C-SP is a compact NEXSYS series PDU engineered for high-density, space-sensitive environments like digital signage or behind-the-display installations. This 0 RU unit provides 20 Amp service via 2 NEMA 5-20R receptacles. It utilizes patented, non-degrading series surge protection technology that is 100% MOV-free, ensuring the unit protects your equipment without contaminating the system ground. The outlets are specifically oriented to accommodate large DC power transformers and wall warts, preventing the common issue of blocked receptacles. For advanced voltage monitoring, a dry contact port allows for selectable on/off voltage protection; if an over or under voltage event occurs, the PDU automatically shuts off the outlets and restores power once the voltage returns to an acceptable range. Installation is highly flexible, as the unit includes a clamp and L-brackets, allowing it to be mounted within a rack, kiosk, or in-wall box using a Lever Lock™ plate for tool-free mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 20 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 9 in (22.9 cm) |
| Height | 1.74 in (4.4 cm) |
| Rack Units | 0 RU |
| Shipping Weight | 5.8 lbs (2.6 kg) |
All other specifications 12
| Width | 4.65 in (11.8 cm) |
| Isolated Ground | No |
| Outlet Count | 2 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Series Protection |
| TAA Compliant | No |
| UPC | 656747396458 |
| Certifications | UL Listed |
| Patents | www.legrandav.com/patents |
| Warranty | 12 Years |
Resources
Questions about this part
How do I install the PDX-220C-SP in a rack or kiosk?
The PDX-220C-SP includes a mounting clamp and L-brackets. These can be attached to a Lever Lock™ plate to allow for tool-free mounting inside racks, kiosks, or in-wall boxes.
What is the benefit of the series surge protection in this PDU?
The NEXSYS series surge protection uses a 100% MOV-free design. This patented technology provides fast, non-degrading protection without contaminating your system ground.
Can this PDU protect my equipment from voltage fluctuations?
Yes. Using the dry contact port, you can set selectable on/off voltage protection. The PDU will automatically disconnect power during an over or under voltage event and restore it when voltage stabilizes.
Will bulky power adapters fit in these NEMA 5-20R outlets?
The PDX-220C-SP features specifically oriented outlets designed to prevent blocked receptacles when using large DC transformers or wall-wart style power supplies.
What is the power cord length and plug type for this model?
This unit comes equipped with a standard 2 ft (0.6 m) power cord and features a NEMA 5-20P plug.
