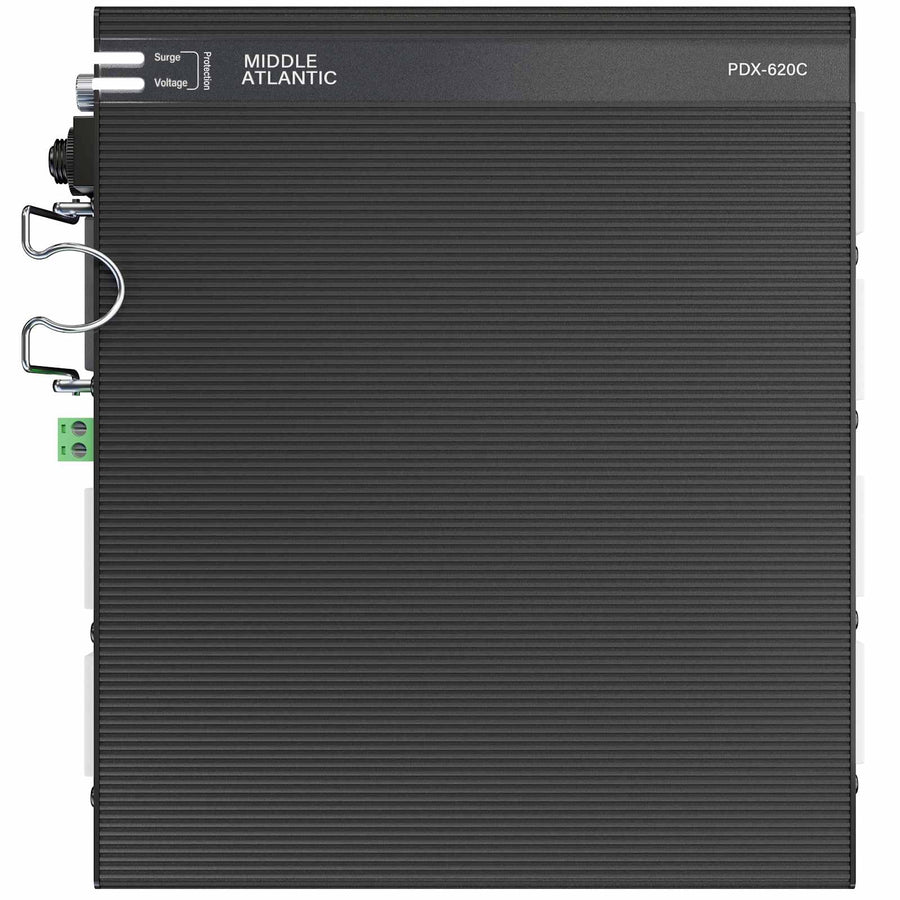

NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
Compact 20A NEXSYS PDU with 6 NEMA 5-20R outlets and multi-stage MOV surge protection, ideal for behind-the-display mounting
The Middle Atlantic PDX-620C is a compact NEXSYS PDU designed specifically for space-constrained environments such as digital signage, kiosks, or in-wall enclosures. This 0 RU power distribution unit provides 6 NEMA 5-20R outlets, which are oriented to prevent large DC transformer power bricks from blocking adjacent outlets. It features multi-stage MOV surge protection to safeguard sensitive electronics from electrical spikes. For enhanced equipment safety, the unit includes a dry contact port that allows for selectable on/off voltage protection; if an over/under voltage event occurs, the PDU automatically cuts power to the outlets and restores it once the voltage returns to an acceptable range. The PDX-620C includes a 2 ft (0.6 m) cord with a NEMA 5-20P plug. For installation flexibility, the unit comes with a clamp and L-brackets, allowing it to be mounted via a Lever Lock™ plate inside a rack or enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 20 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 7 in (17.8 cm) |
| Height | 1.74 in (4.4 cm) |
| Rack Units | 0 RU |
| Shipping Weight | 4.59 lbs (2.1 kg) |
All other specifications 11
| Width | 8.15 in (20.7 cm) |
| Isolated Ground | No |
| Outlet Count | 6 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Multi-Stage MOV |
| TAA Compliant | No |
| UPC | 656747396434 |
| Certifications | UL Listed |
| Warranty | 3 years |
Resources
Questions about this part
Will the PDX-620C fit in a tight space behind a display?
Yes, this is a 0 RU compact PDU with a 1.74 in (4.4 cm) height and 7 in (17.8 cm) depth, making it suitable for digital signage and behind-the-display applications.
How does the voltage protection work on the PDX-620C?
Using the dry contact port, you can enable selectable voltage protection. The PDU will automatically turn off outlets during over/under voltage events and restore power once voltage is within range.
What mounting options are available for this PDU?
The unit includes a clamp and L-brackets. These can be attached to a Lever Lock™ plate for tool-free installation in racks, kiosks, or in-wall boxes.
Can I use all 6 outlets with large power adapters?
Yes, the NEMA 5-20R outlets are oriented to allow for easier plugging of DC transformers without blocking the neighboring outlets.
What is the difference between this and other NEXSYS PDUs?
This PDX-620C is the 6-outlet variant in the NEXSYS Compact Power series; other models in this series offer different outlet counts.
