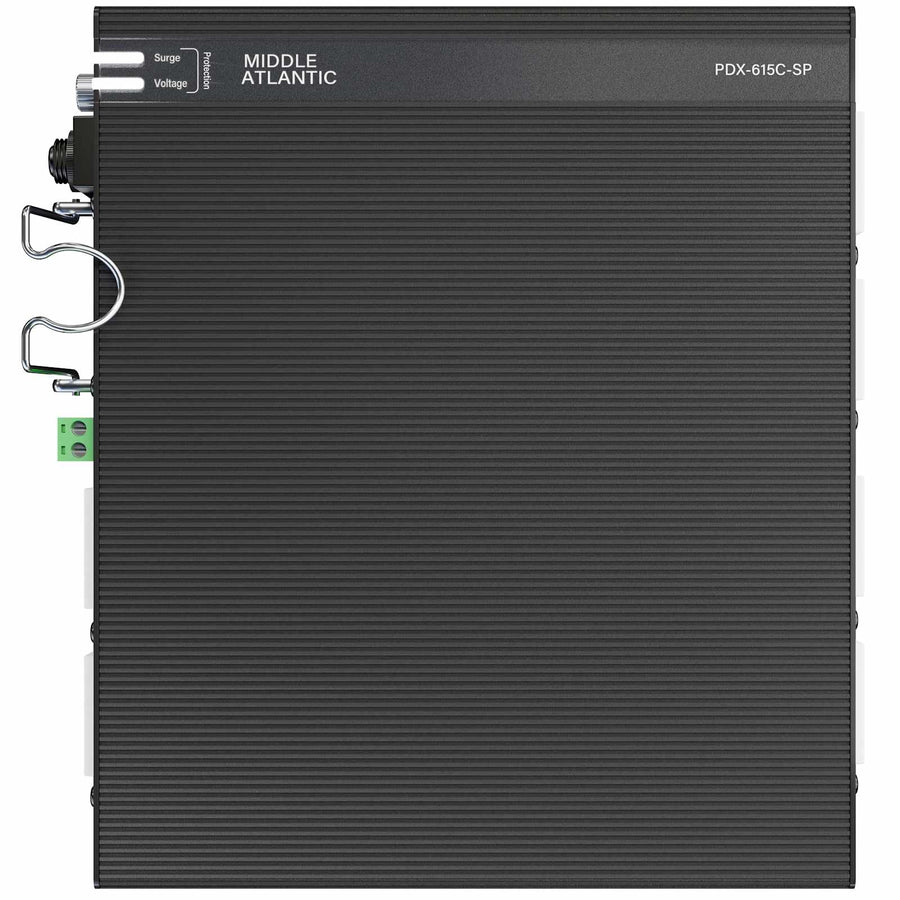

NEXSYS™ 6 Outlet, 15 Amp Compact Power with Series Surge Protection
Compact 6-outlet 15 Amp PDU with series surge protection and selectable voltage protection for behind-the-display applications
The Middle Atlantic PDX-615C-SP is a compact 6-outlet power distribution unit designed for tight spaces, such as digital signage installations or behind-the-display environments. This 0 RU NEXSYS Compact PDU provides 15 Amp capacity through six NEMA 5-15R receptacles. The outlets are oriented to prevent bulky DC transformers and wall warts from blocking adjacent sockets, ensuring all six outlets remain usable. This unit features patented series surge protection technology that is 100% MOV-free, protecting equipment without contaminating the system ground. For advanced protection, a dry contact port allows for selectable on/off voltage protection. If an over or under voltage event occurs, the PDU automatically disconnects the outlets and restores power once voltage returns to the acceptable range. Mounting is flexible via two options: a clamp or L-brackets, both of which can be attached to a Lever Lock™ plate for tool-free installation in racks, kiosks, or in-wall boxes. It includes a 2 ft (0.6 m) cord with a NEMA 5-15P plug.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 15 Amp |
| Cord Length | 2 ft (0.6 m) |
| Depth | 7 in (17.8 cm) |
| Height | 1.74 in (4.4 cm) |
| Rack Units | 0 RU |
| Shipping Weight | 5.95 lbs (2.7 kg) |
All other specifications 12
| Width | 8.15 in (20.7 cm) |
| Isolated Ground | No |
| Outlet Count | 6 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Series Protection |
| TAA Compliant | No |
| UPC | 656747396489 |
| Certifications | UL Listed |
| Patents | www.legrandav.com/patents |
| Warranty | 12 Years |
Resources
Questions about this part
How does the voltage protection work on the PDX-615C-SP?
Using the dry contact port, you can enable a feature that automatically turns off the outlets during an over or under voltage event. Once voltage returns to the acceptable range, the outlets automatically restore power to your equipment.
Can I use this PDU in a kiosk or in-wall box?
Yes. The unit is designed for high-density, compact spaces and supports tool-free mounting in racks, kiosks, or in-wall boxes when using the provided clamp or L-brackets with a Lever Lock™ plate.
Will large power adapters block the other outlets?
No. The NEMA 5-15R outlets are specifically oriented to accommodate DC transformers and wall warts, ensuring you can utilize all 6 available outlets without interference.
What is the difference between this series and standard MOV-based surge protectors?
The PDX-615C-SP uses patented series surge technology that is 100% MOV-free. This provides protection without contaminating the system ground, unlike traditional competitive offerings.
What is the warranty for this Middle Atlantic PDU?
This NEXSYS Compact PDU is backed by an industry-leading 12-year warranty.
