ConferenceSHOT AV HD Conference Room System
HD PTZ camera and audio mixer system for small to medium conference rooms, featuring 10x zoom and two TableMIC microphones

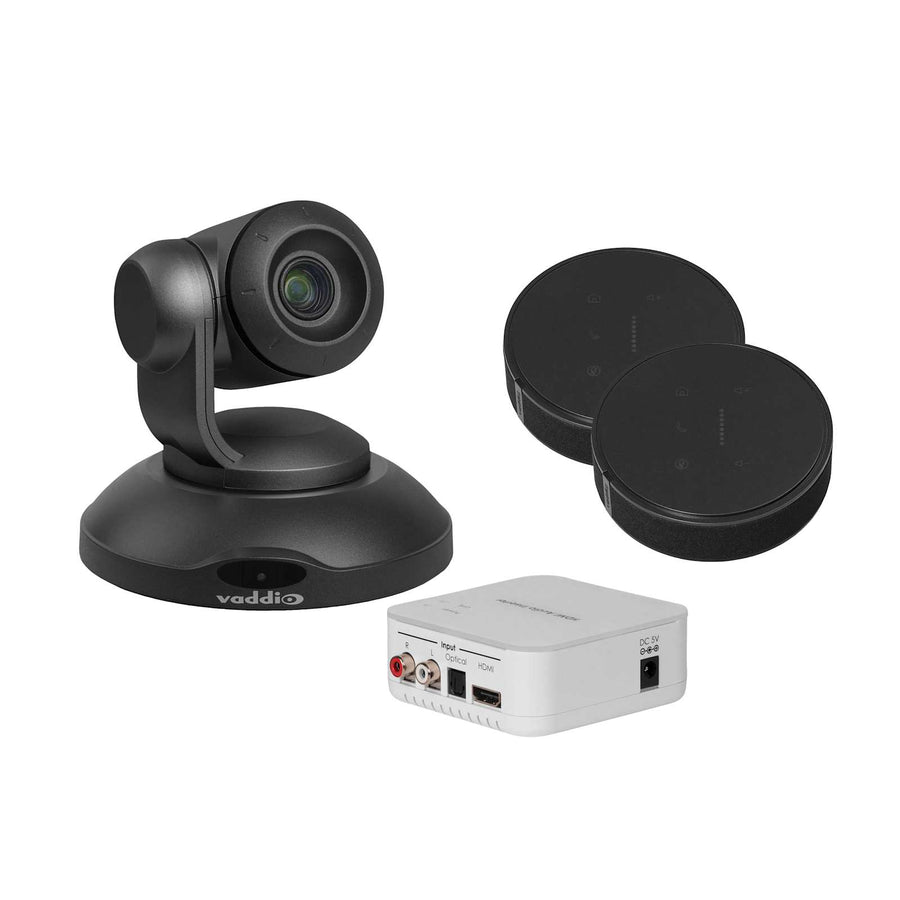

The Vaddio ConferenceSHOT AV 999-99950-600B is a comprehensive video conferencing solution that integrates a high-definition PTZ camera and an audio conferencing mixer into a single USB 3.0 device. Designed specifically for small to medium-sized conference rooms, this system allows installers to connect up to two microphones and an external speaker directly to the camera, simplifying the signal chain. The system provides easy plug-and-play functionality with major UCC soft clients including Microsoft Teams, Google Meet, Zoom, and WebEx. This bundle includes the black ConferenceSHOT AV camera, two black TableMIC microphones, an HDMI Audio Embedder, a PoE+ Midspan Power Injector with an AC cord set, and a thin-profile black wall mount. The camera features a 1-2_8 Exmor CMOS sensor providing 1080p 60 resolution and a 10x zoom. Control is versatile, supporting IR remote, joystick, Telnet, touch screens, and a built-in web UI for remote management. It is TAA compliant and UL listed, making it suitable for diverse enterprise environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.8 in (17.3 cm) |
| Height | 8 in (20.3 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.6 lbs (1.6 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Width | 7.06 in (17.9 cm) |
| 3rd Party Control | Telnet |
All other specifications 38
| Audio Type | MicrophoneMixers and IO Devices |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Microphones | Two Table Microphones |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Conference Room System |
| TAA Compliant | YesYes |
| Tri-Sync Motion | No |
| UPC | 840077506452 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Vaddio Device Controller
999-42300-000$855.00
Vaddio Ceiling Speakers
999-85600-000$450.90
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60
ConferenceSHOT AV Table Mount
999-89995-000$184.50
USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-015$632.70
Twin Mono AMP
999-9995-330$239.40
Vaddio IR Remote Commander with audio controls
998-2102-000Discontinued
Verified fitment
Questions about this part
What is included in the ConferenceSHOT AV 999-99950-600B bundle?
This package includes the ConferenceSHOT AV camera in black, two black TableMIC microphones, an HDMI Audio Embedder, a PoE+ Midspan Power Injector, and a thin profile black wall mount with mounting hardware.
Does this system work with Microsoft Teams or Zoom?
Yes, the ConferenceSHOT AV is UVC compliant, offering plug-and-play functionality with major UCC soft clients such as Microsoft Teams, Google Meet, and Zoom without needing external drivers.
How can I control the camera and audio remotely?
You can manage the system through a built-in web-based user interface, Telnet, or an IR Remote Commander. It is also compatible with joystick and touch screen controllers.
What power requirements does the camera have?
The system uses PoE+ for power and includes a PoE+ Midspan Power Injector with an AC cord set to simplify installation.
What is the field of view for the PTZ camera?
The camera features a field of view ranging from a 74° wide end to a 7.6° tele end.
