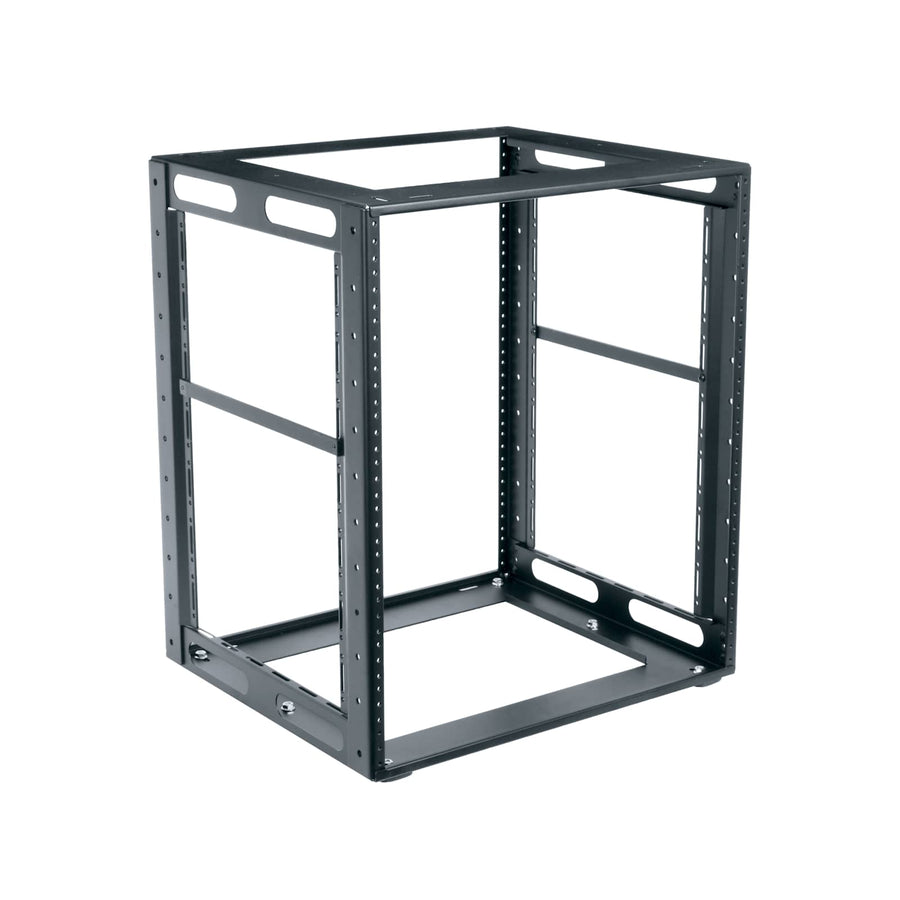

CFR Cabinet Frame Rack CFR-11-23
11 RU in-cabinet frame rack with 23" depth, steel construction, and 250 lbs UL load capacity
The Middle Atlantic CFR-11-23 is an 11 RU in-cabinet rack designed to maximize available space within entertainment systems, AV cabinets, and similar confined spaces. This low-profile frame is constructed from welded steel, which provides a robust structure capable of being pre-loaded with equipment prior to transportation to the job site. With a usable height of 19.25" (48.9 cm) and a usable depth of 23" (58.4 cm), this rack is engineered for efficient equipment integration. The 19.25" (48.9 cm) width accommodates standard equipment, and the frame features a flat powder coat finish in black. For cable management, the unit includes two front-to-rear lacing bars and uprights with offset cable tie areas to assist with tidy dressing. This TAA compliant rack is UL Listed and maintains a UL load capacity of 250 lbs (113.4 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23 in (58.4 cm) |
| Height | 20.19 in (51.3 cm) |
| Product Weight | 18.5 lbs (8.4 kg) |
| Rack Units | 11 RU |
| Shipping Weight | 24 lbs (10.9 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 23 in (58.4 cm) |
| Usable Height | 19.25 in (48.9 cm) |
All other specifications 10
| Width | 19.25 in (48.9 cm) |
| Color | Black |
| Federal Ops Country of Origin | Mexico |
| Finish | Flat Powder Coat |
| Material | Steel |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | Yes |
| UPC | 656747268380 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-2DV$74.70
1 RUs Horizontal Cable Manager with Cable Clips & D-Rings
HCM-1V$66.60
1 RU Horizontal Cable Manager with Horizontal/Vertical D-Rings
HCM-1DV$66.60
23 Inch Deep Runner Kit for RS Series Racks
5-RS23$66.60
Power Strip Bracket Rack Front/Back Mount
PB-5A$25.20
20 CFM Quiet-Cool Cabinet Cooler, 220 - 240VAC
ICAB-COOL$189.00
40 CFM Quiet-Cool Cabinet Cooler
CAB-COOL-2$328.50
20 CFM Quiet-Cool Cabinet Cooler
CAB-COOL$189.00
50 CFM Quiet-Cool Cabinet Cooler
CAB-COOL50$382.50
50 CFM Quiet-Cool Cabinet Cooler, 220 - 240VAC
ICAB-COOL50$382.50
40 CFM Quiet-Cool Cabinet Cooler, 220 - 240VAC
ICAB-COOL-2$328.50
Questions about this part
What is the maximum load capacity for the CFR-11-23?
This rack has a UL load capacity of 250 lbs (113.4 kg).
Is the CFR-11-23 suitable for TAA compliant projects?
Yes, this rack is TAA compliant and is UL Listed for installation safety.
What accessories are available to expand this rack's functionality?
You can add components such as the HCM-2DV 2 RU horizontal cable manager or a Select Series PDU with RackLink™ like the RLNK-215.
How does this rack assist with cable management?
It includes two front-to-rear lacing bars and has uprights designed with offset cable tie areas.
What is the difference between this and other CFR series racks?
The CFR-11-23 is an 11 RU model; other variants in the CFR series offer different rack unit heights to fit your specific space requirements.
