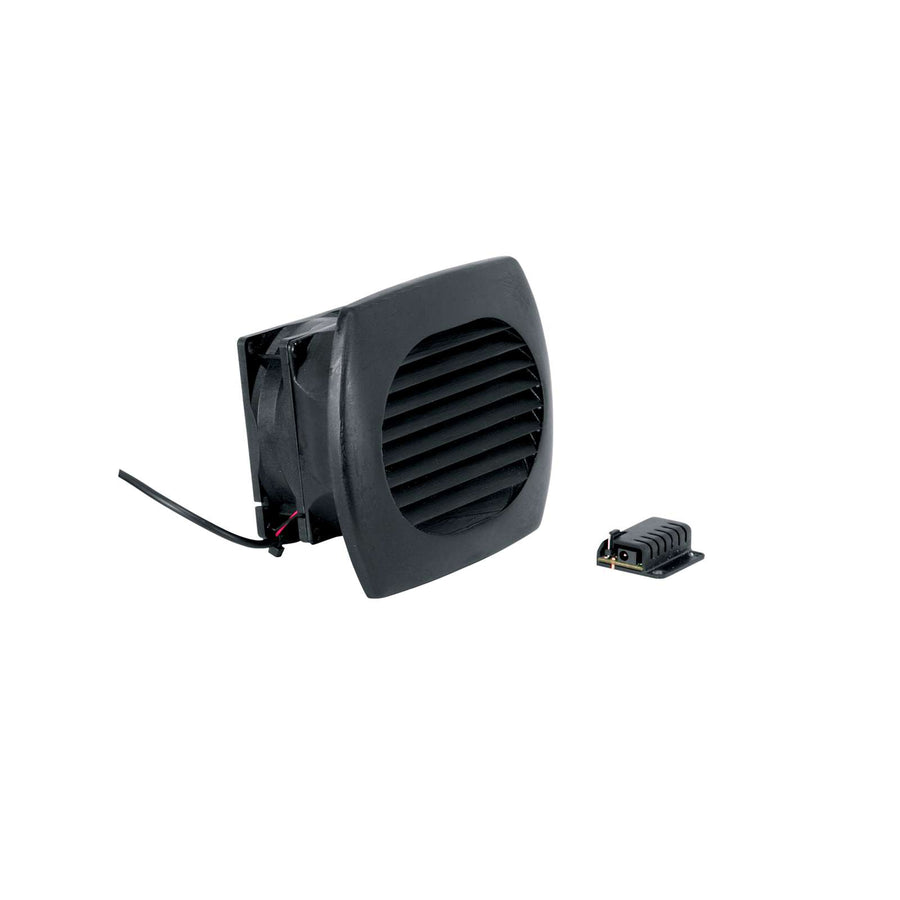

40 CFM Quiet-Cool Cabinet Cooler, 220 - 240VAC
Active cabinet cooler with dual fans providing 40 CFM total airflow and thermostatic control for small enclosures
The Middle Atlantic ICAB-COOL-2 provides active thermal management for heat-generating components inside small cabinets, credenzas, lecterns, and entertainment centers. This dual-fan version utilizes two units rated at 20 CFM each to deliver a total of 40 CFM at a noise level of 27 dBA. To extend equipment life and minimize dust accumulation, the system is thermostatically controlled; the fans activate automatically when temperatures reach 87°F (30.5°C) and deactivate once the internal temperature drops to 85°F (29°C). The included 12 VDC power supply accepts a 220-240VAC input, making this unit suitable for international deployments. The aesthetically designed vent can be painted to match the surrounding environment for a custom appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 40 |
| Depth | 3.07 in (7.8 cm) |
| Height | 4.5 in (11.4 cm) |
| Shipping Weight | 1.81 lbs (0.8 kg) |
| Volts DC | 12 VDC |
| Width | 5.25 in (13.3 cm) |
| Available Internationally | Yes |
All other specifications 5
| Color | Black |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| UPC | 656747143014 |
Resources
Questions about this part
Will the ICAB-COOL-2 work with 110V power?
No, this specific model requires a 220-240VAC input to operate the included 12 VDC power supply.
What is the temperature threshold for the fans?
The fans automatically activate when the internal temperature reaches 87°F (30.5°C) and turn off once it cools to 85°F (29°C).
Can I change the color of the vent?
Yes, the vent is designed with an aesthetic finish that can be painted to match your specific cabinet or room color.
How much airflow does this unit provide?
The unit provides a total of 40 CFM, delivered by two individual fans rated at 20 CFM each.
What documentation is available for submittals?
You can access the ICAB-COOL instruction sheet for installation details or the Quiet-Cool Series specification sheet for technical data.
