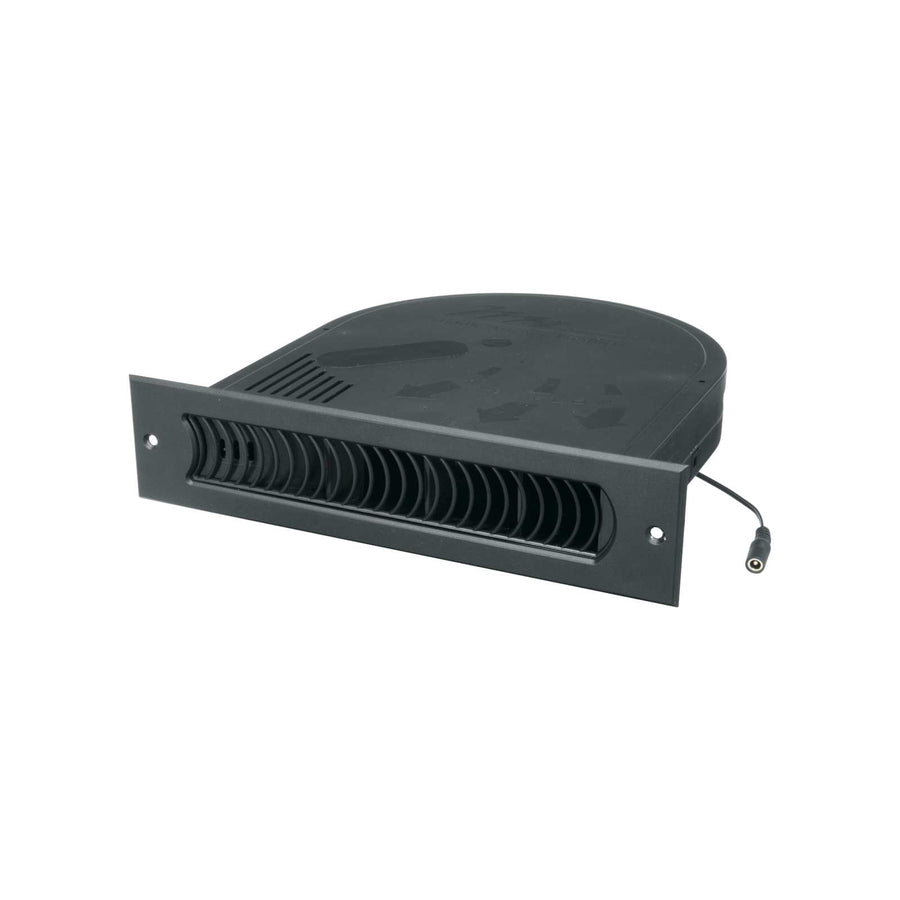

50 CFM Quiet-Cool Cabinet Cooler, 220 - 240VAC
Active cabinet cooler with 50 CFM airflow for small cabinets, credenzas, and lecterns
The ICAB-COOL50 is an active thermal management solution designed to remove hot air from smaller cabinet enclosures, credenzas, and lecterns to help extend the service life of sensitive equipment. This 50 CFM unit operates at 29 dBA, providing necessary airflow without excessive noise. It features an integrated thermostatic controller that automatically activates the blower when temperatures reach 87°F (30.5°C) and shuts it off once the internal environment cools to 85°F (29°C). This kit is supplied with a 12VDC power supply that accepts a 220-240VAC input, making it suitable for international installations. While the unit ships in a black finish, the housing can be painted to match the specific color of your installation site.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 50 |
| Depth | 10.17 in (25.8 cm) |
| Height | 2.75 in (7 cm) |
| Shipping Weight | 3.6 lbs (1.6 kg) |
| Volts DC | 12 VDC |
| Width | 10.63 in (27 cm) |
| Available Internationally | Yes |
All other specifications 5
| Color | Black |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| UPC | 656747188619 |
Resources
Questions about this part
Will the ICAB-COOL50 work with international power standards?
Yes, this unit is available internationally and is designed to accept a 220-240VAC input for the included 12VDC power supply.
What are the temperature triggers for the thermostat?
The built-in thermostatic controller engages the blower at 87°F (30.5°C) and turns the system off at 85°F (29°C).
Can the cabinet cooler be customized to match my furniture?
While the unit is supplied in a black finish, the exterior can be painted to match the specific color of your credenza or lectern.
What is the noise level during operation?
The ICAB-COOL50 is rated at 29 dBA when moving 50 CFM of air.
What documents are available for submittals or installation?
Installers can access the 50 CFM Cabinet Cooler Instruction Sheet (PDF) and the CAD Technical Specification Drawings (dwg) for planning.
