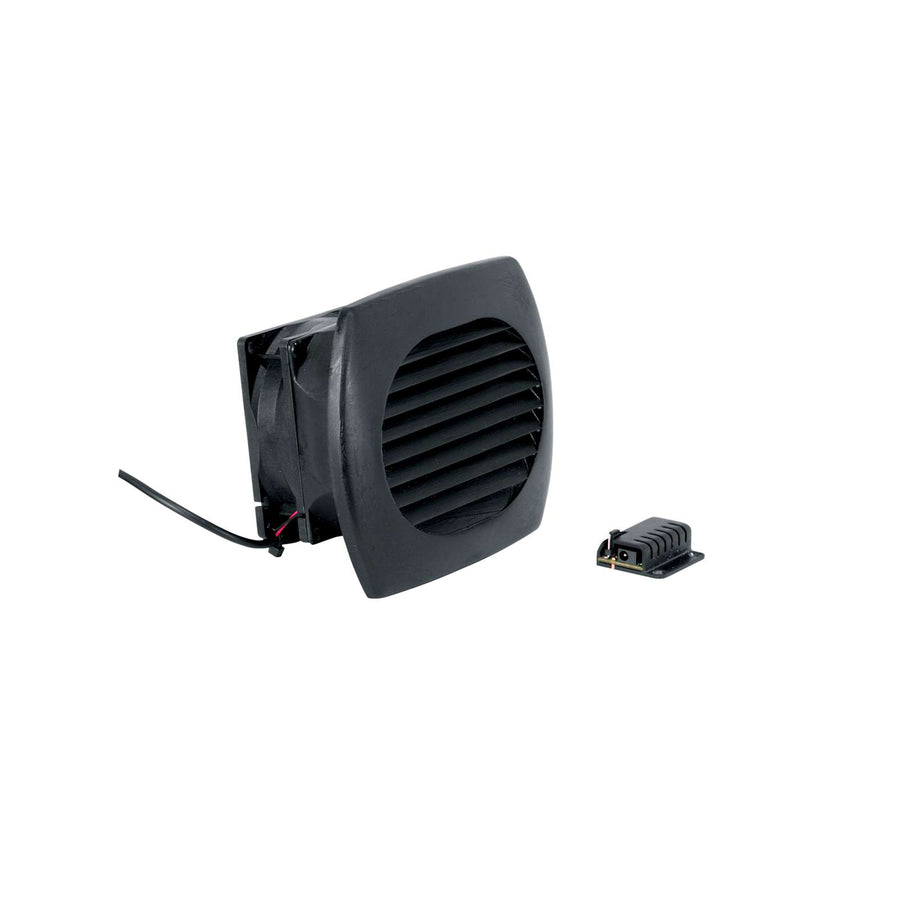

20 CFM Quiet-Cool Cabinet Cooler, 220 - 240VAC
Active cabinet cooler delivering 20 CFM for small enclosures, featuring a thermostatic controller and 12VDC power supply
The ICAB-COOL is an active thermal management solution designed to remove heat from small cabinets, credenzas, lecterns, and entertainment centers. This unit delivers 20 CFM of airflow at a noise level of 24 dBA, helping to extend the operational life of heat-generating components. It operates via a thermostatic controller that activates the fan automatically when temperatures reach 87F (30.5C) and shuts it off once the environment drops to 85F (29C). This automatic operation minimizes dust accumulation and extends the life of the fan. The unit is designed for international use with a 220-240VAC input and includes a 12VDC power supply. For custom installations, the aesthetically designed vent can be painted to match the surrounding environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 20 |
| Depth | 3.07 in (7.8 cm) |
| Height | 4.5 in (11.4 cm) |
| Shipping Weight | 1.3 lbs (0.6 kg) |
| Volts DC | 12 VDC |
| Width | 5.25 in (13.3 cm) |
| Available Internationally | Yes |
All other specifications 6
| Color | Black |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | DC |
| TAA Compliant | No |
| UPC | 656747095764 |
Resources
Questions about this part
What is the airflow capacity of the ICAB-COOL?
The ICAB-COOL provides 20 CFM of airflow at a noise level of 24 dBA.
How does the thermostatic control work on this cooler?
The integrated controller automatically starts the fan at 87F (30.5C) and stops it when the temperature reaches 85F (29C).
What power requirements are needed for the ICAB-COOL?
This unit requires a 220-240VAC input and includes a 12VDC power supply.
Can this cabinet cooler be used in international installations?
Yes, the ICAB-COOL is listed as available internationally and accepts 220-240VAC.
Where is this cooler best applied?
It is designed for heat removal in small enclosures such as credenzas, lecterns, and entertainment centers.
