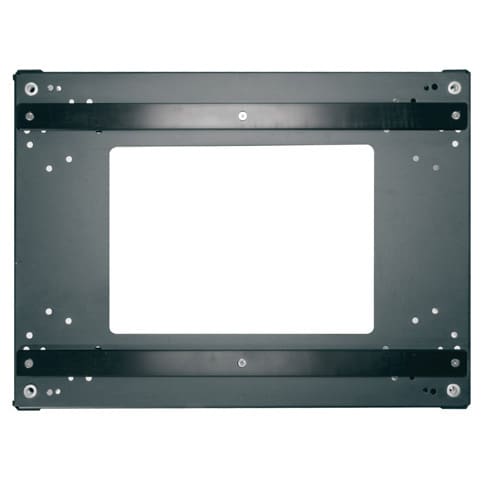

23 Inch Deep Runner Kit for RS Series Racks
23 inch deep, low-friction runner kit for RS Series Racks, 250 lbs capacity, UL listed
The 5-RS23 is a 23 in (58.4 cm) deep, low-friction runner kit designed to allow integrated RS Series racks to slide smoothly into furniture openings. This kit is essential for system integrators performing custom cabinetry or furniture-integrated AV installations where the rack must be easily accessible. It features a low profile height of 0.25 in (0.6 cm) and a width of 1.5 in (3.8 cm). This component is UL Listed and TAA compliant. The assembly is built to support a UL Load Capacity of 250 lbs (113.4 kg) and utilizes 10-32 rack rail types for secure installation. This specific kit is part of the RS Runner Kit series, which is available in multiple depth options to match various enclosure requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 23 in (58.4 cm) |
| Height | 0.25 in (0.6 cm) |
| Shipping Weight | 1.2 lbs (0.5 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Width | 1.5 in (3.8 cm) |
| Rack Rail Type | 10-32 |
| UPC | 656747268472 |
| Certifications | UL Listed |
Resources
Questions about this part
What is the application for the 5-RS23 runner kit?
The 5-RS23 is used to allow RS Series racks to slide into furniture openings with low friction.
Will the 5-RS23 support a heavy rack installation?
Yes, it has a UL Load Capacity of 250 lbs (113.4 kg).
What rack rail type is required for this kit?
This kit is designed for use with 10-32 rack rail types.
What is the depth of the 5-RS23 runner kit?
This runner kit has a depth of 23 in (58.4 cm).
Are there other sizes available for the RS Runner Kit series?
Yes, the series includes other depth options such as 16 in, 18 in, 20 in, and 26 in.
