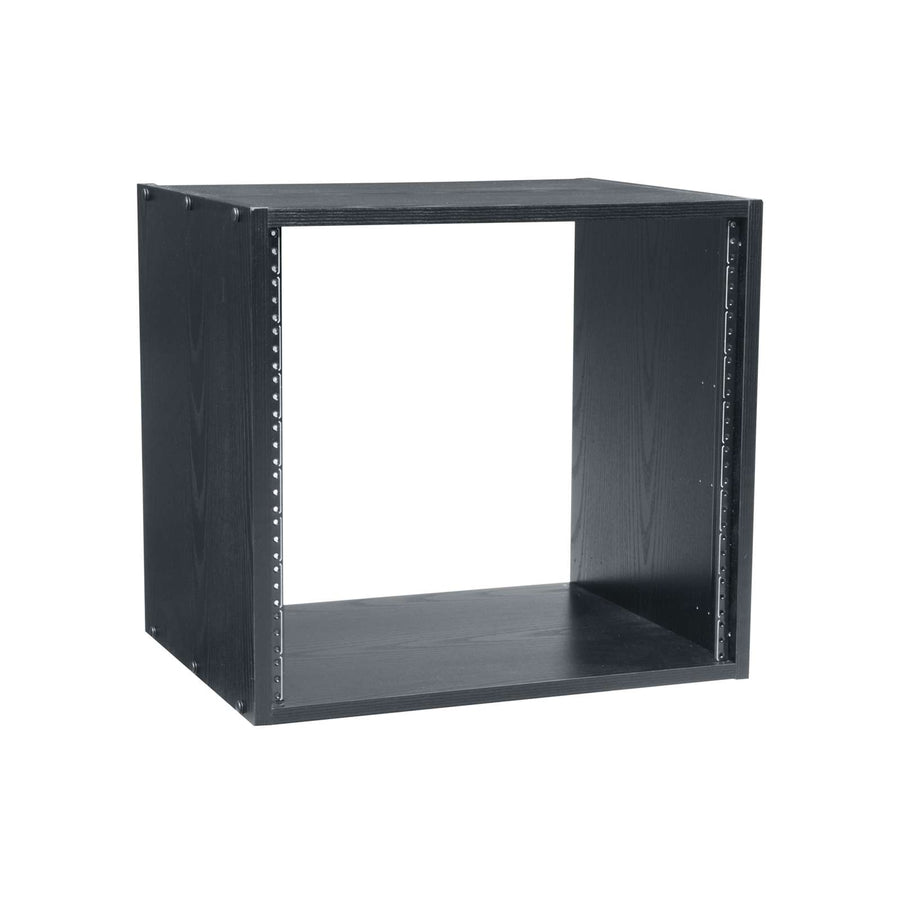

BRK Series Black Laminate Rack - BRK8
8 RU wood laminate rack with a black wood grain finish and 200 lbs weight capacity
The Middle Atlantic BRK8 is an 8 RU knockdown wood rack designed for efficient shipping and straightforward on-site assembly. This series features a black wood grain finish that complements professional AV installations in residential or commercial environments. The unit provides a usable height of 14 in (35.6 cm) and a usable depth of 17.41 in (44.2 cm) within its 15.48 in (39.3 cm) total height. Built with a wood construction, the rack supports a weight capacity of 200 lbs (90.7 kg). It utilizes 10-32 threaded front rackrails for secure component mounting. For those requiring a complete enclosure, the RK-GD8 8 RU Glass Door is compatible with this rack. This TAA compliant series is a versatile solution for housing sensitive equipment in a professional-grade enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17.91 in (45.5 cm) |
| Height | 15.48 in (39.3 cm) |
| Rack Units | 8 RU |
| Shipping Weight | 26.7 lbs (12.1 kg) |
| Usable Depth | 17.41 in (44.2 cm) |
| Usable Height | 14 in (35.6 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.4 in (51.8 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747002779 |
Resources
You'll need these with it
8 RU Glass Door for RK, BRK, OBRK and MBRK Racks
RK-GD8$207.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Series Surge Protection
PDX-215C-SP$423.90
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
Questions about this part
What is the usable depth of the BRK8 rack?
The BRK8 features a usable depth of 17.41 in (44.2 cm) and an overall depth of 17.91 in (45.5 cm).
What accessories are compatible with the BRK8?
You can add a RK-GD8 8 RU Glass Door or various power solutions like the PDX-920R NEXSYS™ 9 Outlet rackmount power.
What is the weight capacity for this 8 RU rack?
The BRK8 is rated for a total weight capacity of 200 lbs (90.7 kg).
Is the BRK8 TAA compliant?
Yes, the BRK8 is TAA compliant and carries PEP certification.
How does the BRK8 assembly work?
This is a knockdown rack that is easily assembled on-site with the included hardware.
