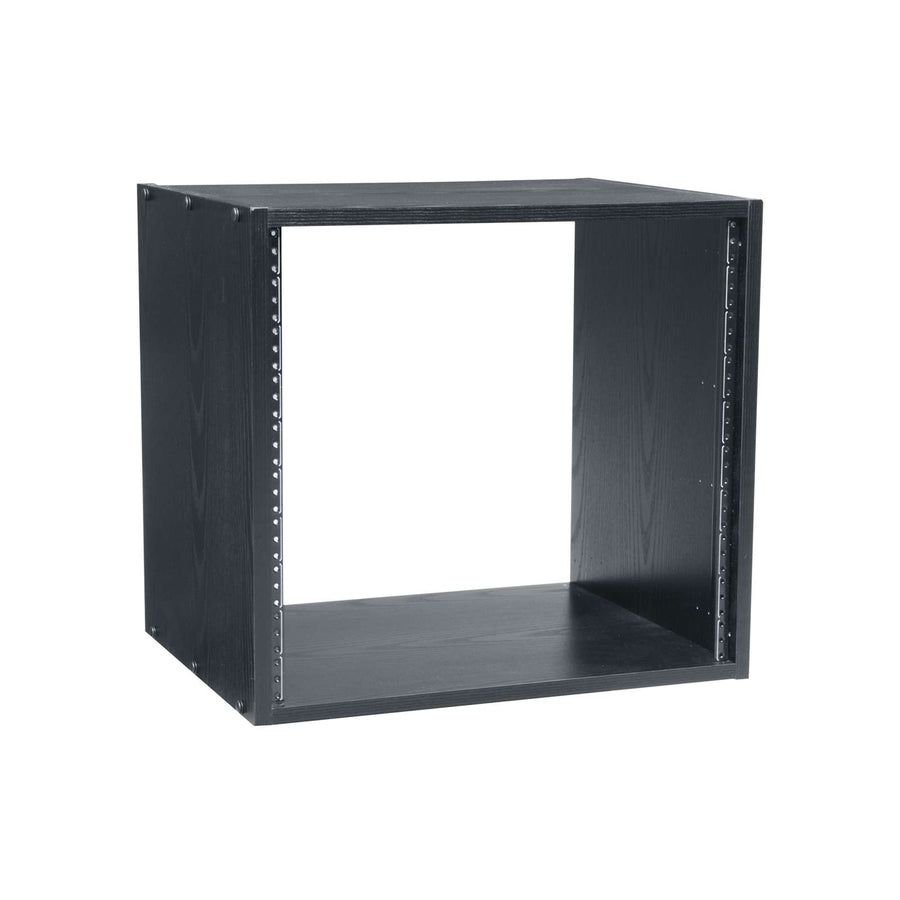

BRK Series Black Laminate Rack - BRK10
10 RU wood laminate rack with a black wood grain finish and 200 lbs capacity
The Middle Atlantic BRK10 is a 10 RU knockdown rack designed for efficient logistics and straightforward on-site assembly. This wood laminate enclosure features a black wood grain finish and is constructed for a total usable height of 17.5 in (44.5 cm) and a usable depth of 17.41 in (44.2 cm). The rack is built with 10-32 threaded front rackrails, supporting a total weight capacity of 200 lbs (90.7 kg). This series is available in multiple RU configurations, with the BRK10 providing a compact footprint of 20.4 in (51.8 cm) wide and 18.98 in (48.2 cm) high. Because the unit ships in a knockdown state, it allows for flat shipment via UPS, reducing shipping complexity for integrators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17.91 in (45.5 cm) |
| Height | 18.98 in (48.2 cm) |
| Rack Units | 10 RU |
| Shipping Weight | 32 lbs (14.5 kg) |
| Usable Depth | 17.41 in (44.2 cm) |
| Usable Height | 17.5 in (44.5 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.4 in (51.8 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747076725 |
Resources
You'll need these with it
1 RU Adjustable Rackshelf 16 Inches to 26 Inches Deep
VSA-1626$211.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Utility Rack Drawer
UD2$216.90

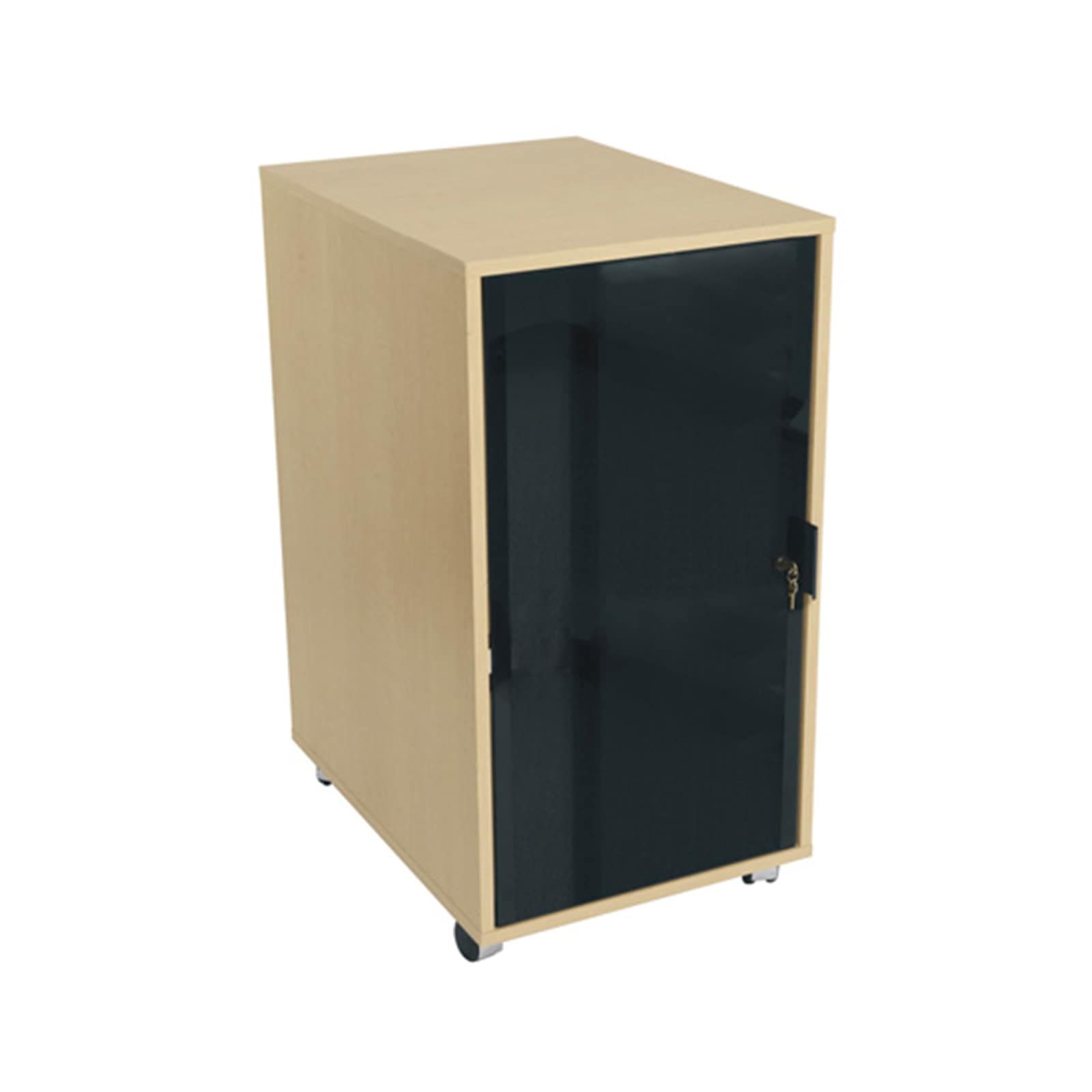

10 RU Glass Door for RK, BRK and MBRK Racks
RK-GD10$227.70
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
Will the BRK10 fit my 10 RU equipment?
The BRK10 provides a usable height of 17.5 in (44.5 cm) and a usable depth of 17.41 in (44.2 cm) for mounting 10 RU hardware.
What accessories are compatible with the BRK10 rack?
You can equip this rack with various components, including the RK-GD10 glass door, UD2 utility drawers, or VSA-1626 adjustable rackshelves.
What is the weight limit for this rack?
The BRK10 has a total weight capacity of 200 lbs (90.7 kg).
What is the difference between this and the other BRK series models?
The BRK10 is a 10 RU model within a series that includes other sizes such as 2 RU, 4 RU, 12 RU, and 20 RU.
Which documents are available for submittals?
Integrators can access the BRK Series Instruction Sheet for assembly or the A&E Specification Sheet for technical submittals.
